UM2011-3W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> UM2011-3W

UM2011-3W: DescriptionAnalog Circuit, Hybrid, PDIP12; CategoryAnalog mixed-signal IC The signal circuit; File Size279KB，2 Pages; ManufacturerUniversal Microelectronics Co., Ltd.

Download Datasheet Parametric View All

UM2011-3W Overview

Analog Circuit, Hybrid, PDIP12

UM2011-3W Parametric

Parameter Name	Attribute value
Objectid	104309018
package instruction	DIP, DIP12/24,.6
Reach Compliance Code	unknown
Maximum input voltage	18 V
Minimum input voltage	9 V
JESD-30 code	R-PDIP-T12
Number of terminals	12
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output current	0.6 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP12/24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

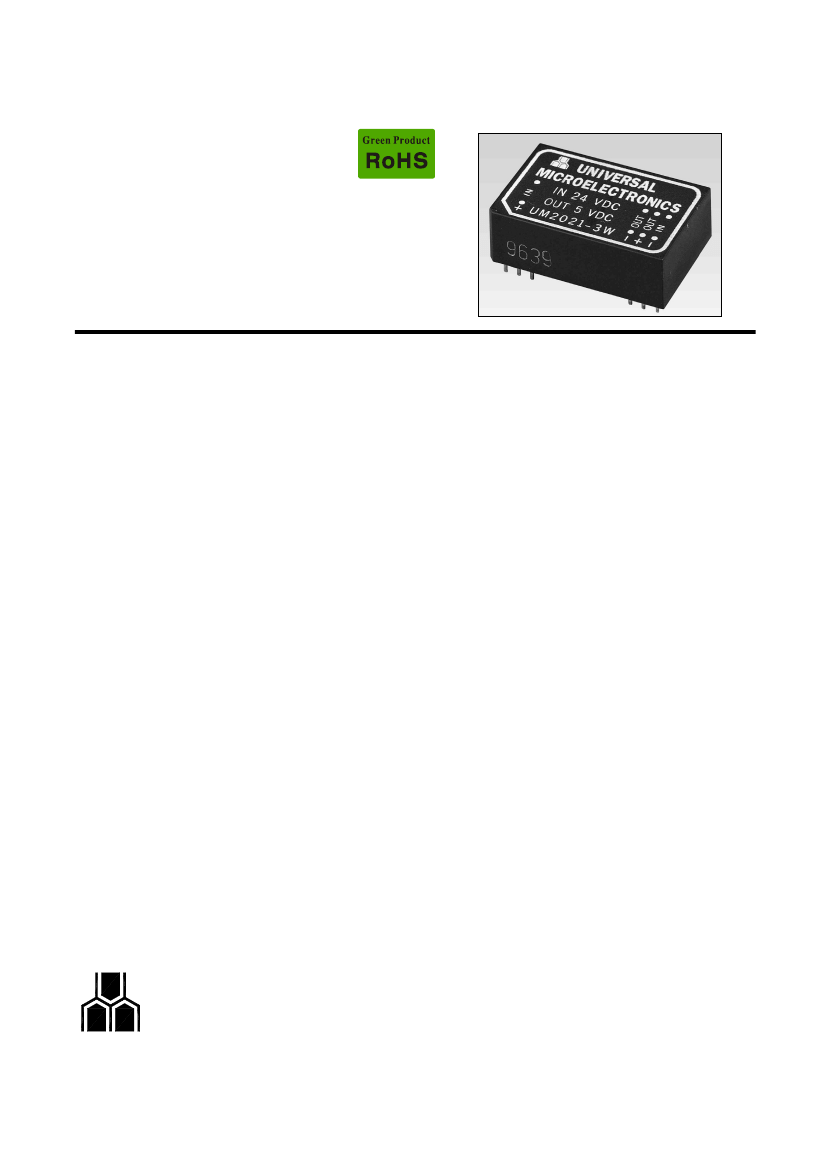

UM2000-3W SERIES

3 Watt DC-DC Converters

♦

24 Pin Dip Package

♦

High Efficiency (up to 80%)

♦

Regulated Outputs

♦

Pi Input Filter

♦

500 VDC Isolation

♦

Continuous Short Circuit Protection

♦

RoHS Compliant

SPECIFICATIONS

All specifications are typical at nominal line, full load and

25°C unless otherwise noted.

OUTPUT SPECIFICATIONS

Voltage Accuracy …………………………….… ±2.0% max.

Voltage Balance (Dual)

………………………. ±2.0% max.

Ripple and Noise, 20MHz BW, 3.3V …….…. 60mVp-p max.

5V ….…….. 100mVp-p max.

12/15V …..…… 1% p-p max.

Temperature Coefficient …..…...…….………… ±0.05%/°C

Short Circuit Protection …………………………. Continuous

Line Regulation

……………………………..………. ±0.5%

Load Regulation

…………………..………………… ±0.5%

GENERAL SPECIFICATIONS

Efficiency ……….…….…………….………………. See Table

Isolation Voltage ……………………….……… 500 VDC min.

Isolation Resistance ……….…….………..…. 10

ohms min.

Switching Frequency …………..…………. 100 KHz-850KHz

(Depending on Loading)

Operating Temperature Range

Ambient, None Derating ….…………….... -25°C to +71°C

Cooling ….………………….………… Free Air Convection

Storage Temperature Range ….…………. -40°C to +100°C

Dimensions CASE A ……..…..…….….. 1.25*0.8*0.4 inches

(31.8*20.3*10.2mm)

Case Material

Standard Models ……….. Non-Conductive Black Plastic

UL94V-0

Weight …………….……….………………………………. 15g

INPUT SPECIFICATIONS

Input Voltage Range, 12V ……………..………………. 9-18V

24V ………………...………..… 18-36V

48V …………………………..… 36-72V

Input Filter …………………………………………. Pi Network

NOTES:

1. For common output models.

2. Measured from high line to low line.

3. Measured from full load to 10% load.

UNIVERSAL

MICROELECTRONICS

UM2000-3W

of 2

3,27TH RD., TAICHUNG INDUSTRIAL PARK,

TAICHUNG, TAIWAN, R.O.C.

TEL: 886-4-23590096 FAX: 886-4-23590129

REV.3
