0603A681KXXW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0603A681KXXW

0603A681KXXW: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00068uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size660KB，4 Pages; ManufacturerSRT Micro Ceramique

Download Datasheet Parametric View All

0603A681KXXW Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00068uF, Surface Mount, 0603, CHIP

0603A681KXXW Parametric

Parameter Name	Attribute value
Objectid	1504556916
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.9 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	WAFFLE PACK
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

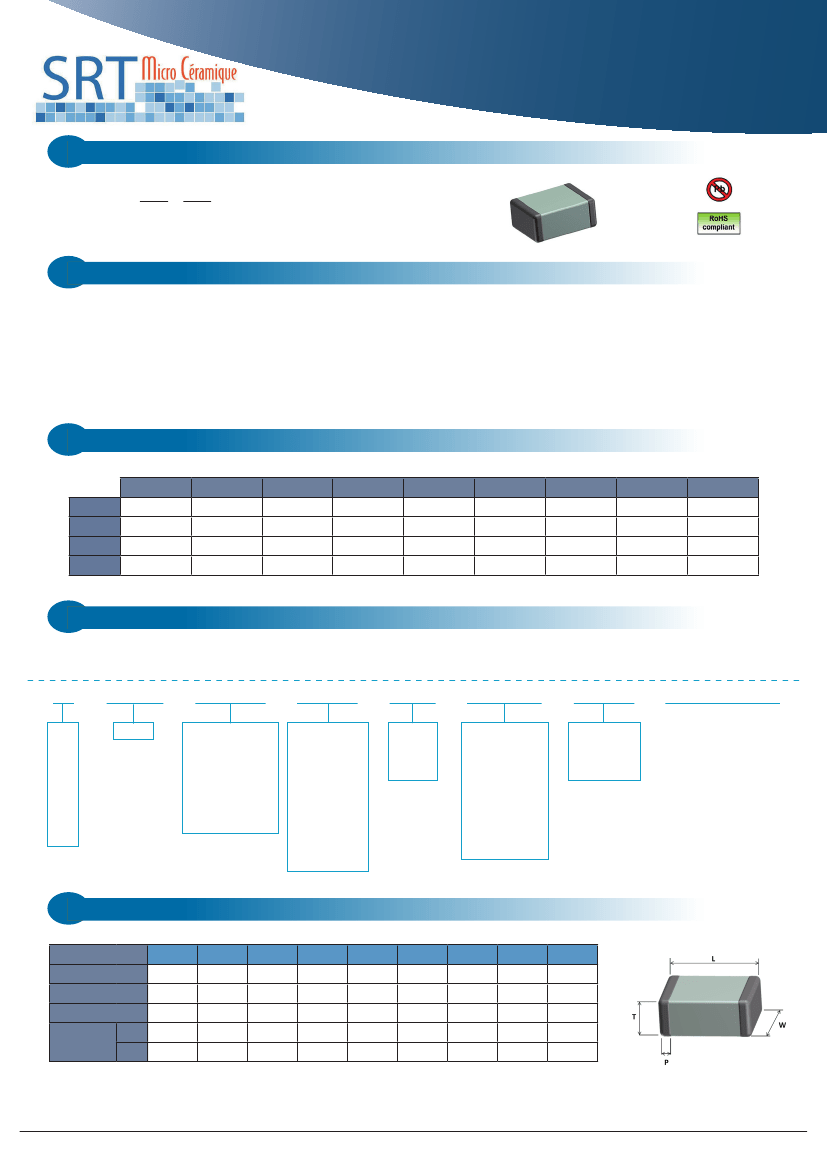

MLCC NP0 Type 1

16V - 100V

• Applications

NP0 C0G :

Ultra stable ceramic

Timing and tuning circuits

High frequency filtering

• Electrical Parameters

Electrical Characteristics

Operating Temperature

Temperature Coefficient

Dissipation Factor

at + 25°C unless otherwise specified

- 55°C, + 125°C

± 30ppm

< 10.10

-4

at 1Vrms and 1kHz (or 1MHz)

Insulation Resistance (IR)

25°C/Un 10

MOhm or 1000 Ohm-Farad whichever is less

125°C/Un 10

MOhm or 100 Ohm-Farad whichever is less

Dielectric Strength Test

Performed per method 103 of EIA 198-2-E

Applied test voltages :

≤ 100Vdc-rated : 250% of rated voltage

• Quick Reference Data

0402

16V

25V

50V

100V

0.47pF - 470pF

0.47pF - 390pF

0.47pF - 330pF

0.47pF - 220pF

0603

0.47pF - 1.8nF

0.47pF - 1.5nF

0.47pF - 1.2nF

0.47pF - 680pF

0805

0.47pF - 5.6nF

0.47pF - 4.7nF

0.47pF - 3.9nF

0.47pF - 3.3nF

1206

0.47pF - 10nF

0.47pF - 8.2nF

0.47pF - 6.8nF

0.47pF - 5.6nF

1210

0.47pF - 18nF

0.47pF - 15nF

0.47pF - 12nF

0.47pF - 10nF

1812

0.47pF - 39nF

0.47pF - 33nF

0.47pF - 27nF

1825

0.47pF - 56nF

0.47pF - 47nF

0.47pF - 39nF

2220

0.47pF - 82nF

0.47pF - 68nF

0.47pF - 56nF

2225

0.47pF - 100nF

0.47pF - 82nF

0.47pF - 68nF

• Ordering Information

0805

SIZE

0402

0603

0805

1206

1210

1812

1825

2220

2225

DIELECTRIC

A = C0G

220

CAPACITANCE

Expressed in picofa-

rads (pF).

The first two digits

are significant, the

third digit give the

number of noughts.

Example :

102 = 1 000pF

TOLERANCE

C = ± 0.25pF

D = ± 0 .5pF

H = ± 0.05%

E = ± 0.1%

A = ± 0.5%

F = ± 1%

G = ± 2%

J = ± 5%

K = ± 10%

M = ± 20%

Z = - 20%, + 80%

VOLTAGE

J = 16V

X = 25V

A = 50V

B = 100V

TERMINATION

F = Palladium-

Silver

W = Silver with

Gold plated finish

X = Nickel with

Tin plated finish

P = Polymer with

Tin plated finish

C = Copper with

Tin plated finish

PACKAGING

B = 7’’ reel

V = Bulk

W = Waffle

Pack

SPECIAL PARAMETERS

• Dimensions

in millimeters

Designation

Length (L)

Width (W)

Thickness (T)

Termination

(P)

Min

Max

0402

1.00 ± 0.1

0.50 ± 0.1

0.60

0.10

0.40

0603

1.60 ± 0.1

0.80 ± 0.1

0.90

0.25

0.40

0805

2.00 ± 0.2

1.25 ± 0.2

1.40

0.25

0.70

1206

3.20 ± 0.2

1.60 ± 0.2

1.70

0.25

0.70

1210

3.20 ± 0.2

2.50 ± 0.2

1.70

0.25

0.80

1812

4.50 ± 0.3

3.20 ± 0.2

2.80

0.25

1.00

1825

4.50 ± 0.3

6.40 ± 0.3

2.50

0.25

1.00

2220

5.70 ± 0.4

5.00 ± 0.4

4.00

0.25

1.00

2225

5.70 ± 0.4

6.40 ± 0.4

4.50

0.25

1.00

For P termination (Polymer type) add 0.20mm to all dimensions (except for 0402).

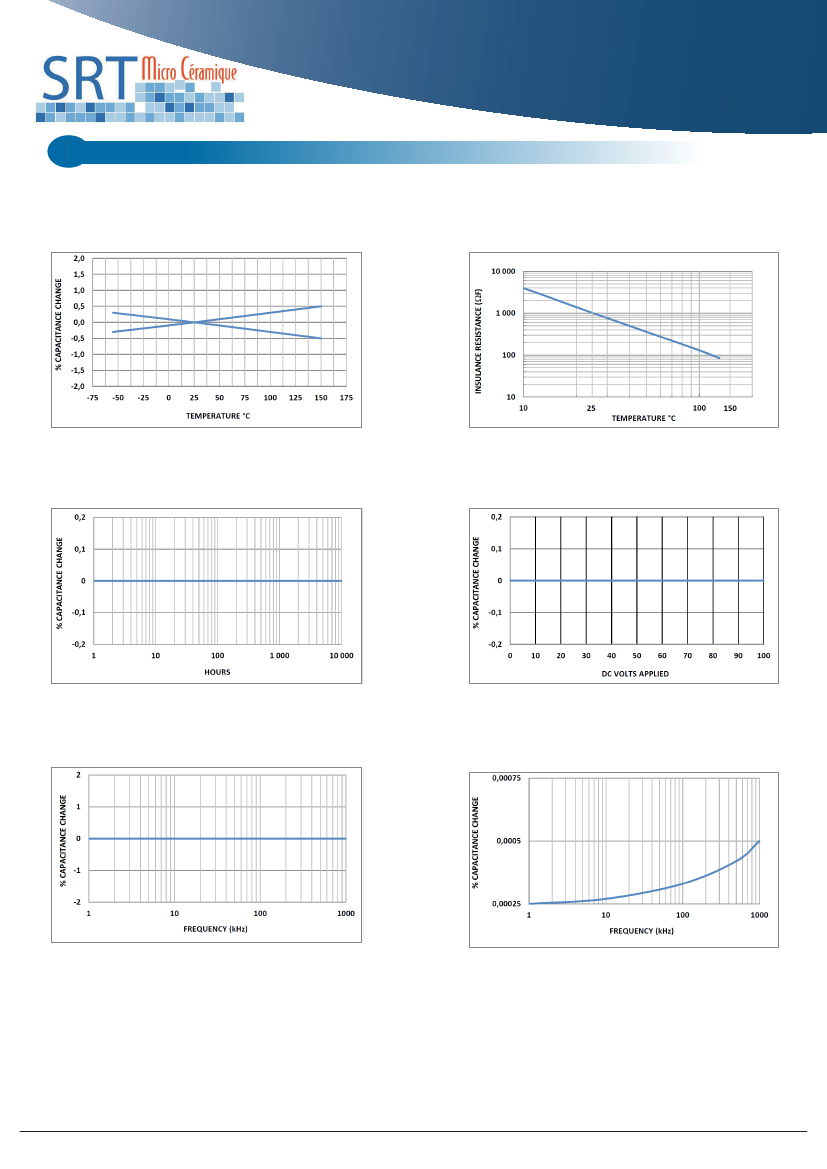

Rev : 11-01-17

This document is subject to change whithout notice.

www.srt-mc.com
