AP9578GH-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Lower On-resistance
▼
Simple Drive Requirement
▼
Fast Switching Characteristic
G
S
P-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
-60V
160mΩ
-10A
Description
AP9578 series are from Advanced Power innovated design and
silicon process technology to achieve the lowest possible on-
resistance and fast switching performance. It provides the designer
with an extreme efficient device for use in a wide range of power
applications.
The TO-252 package is widely preferred for all commercial-
industrial surface mount applications using infrared reflow technique
and suited for high current application due to the low connection
resistance.
G
D
S
TO-252(H)
Absolute Maximum Ratings@T
j
=25
o
C(unless otherwise specified)
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
C
=100℃
I
DM
P
D
@T
C
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current, V
GS
@ 10V
Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Rating
-60
+25
-10
-6
-45
28
0.23
-55 to 150
-55 to 150
Units
V
V
A
A
A
W
W/℃
℃
℃
Total Power Dissipation
Linear Derating Factor
Storage Temperature Range
Operating Junction Temperature Range
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient (PCB mount)
3
Value
4.5
62.5
Units
℃/W
℃/W
1
201501274
Data and specifications subject to change without notice
AP9578GH-HF
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=-250uA
V
GS
=-10V, I
D
=-5A
V
GS
=-4.5V, I
D
=-3A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
2
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
2
Min.
-60
-
-
-1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
8
-
-
-
9
2
5
9
12
32
27
760
80
60
Max. Units
-
160
200
-3
-
-10
-250
+100
16
-
-
-
-
-
-
1220
-
-
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
V
DS
=V
GS
, I
D
=-250uA
V
DS
=-10V, I
D
=-5A
V
DS
=-60V, V
GS
=0V
V
GS
=+25V, V
DS
=0V
I
D
=-5A
V
DS
=-48V
V
GS
=-4.5V
V
DS
=-30V
I
D
=-5A
R
G
=3.3Ω
V
GS
=-10V
V
GS
=0V
V
DS
=-25V
f=1.0MHz
Drain-Source Leakage Current (T
j
=125
o
C)
V
DS
=-48V, V
GS
=0V
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Test Conditions
I
S
=-5A, V
GS
=0V
I
S
=-5A, V
GS
=0V,
dI/dt=-100A/µs
Min.
-
-
-
Typ.
-
41
83
Max. Units
-1.2
-
-
V
ns
nC
Reverse Recovery Time
2
Reverse Recovery Charge
Notes:
1.Pulse width limited by safe operating area.
2.Pulse test
3.Surface mounted on 1 in
2
copper pad of FR4 board
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP9578GH-HF
30
25
T
C
= 25
o
C
25
-10V
-7.0V
20
T
C
= 150
o
C
-I
D
, Drain Current (A)
-10V
- 7 .0V
-5.0V
-4.5V
-I
D
, Drain Current (A)
20
-5.0V
-4.5V
15
15
10
10
V
G
= -3.0 V
5
V
G
= -3.0 V
5
0
0
2
4
6
8
10
12
0
0
2
4
6
8
10
12
-V
DS
, Drain-to-Source Voltage (V)
-V
DS
, Drain-to-Source Voltage (V)

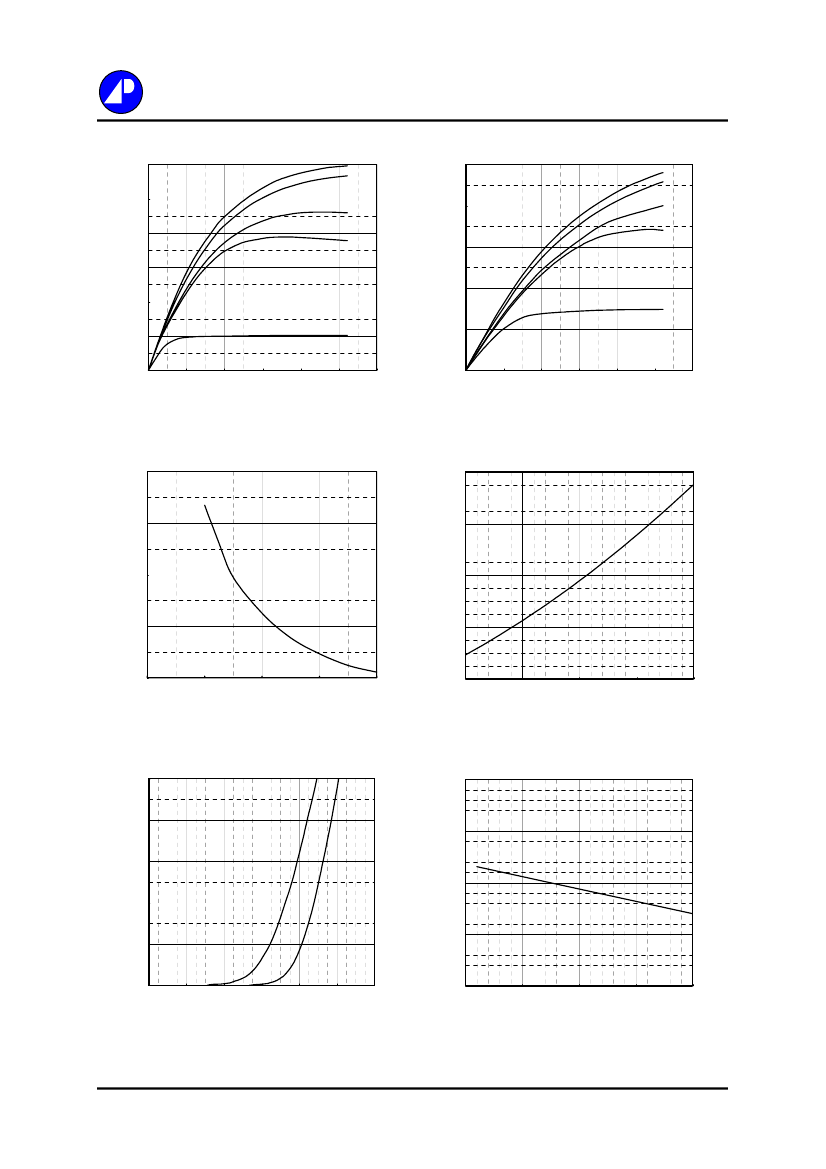

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
175
2.0
155
Normalized R
DS(ON)
165
I
D
= -3 A
T
C
=25
℃
I
D
= -5 A
V
G
= - 10V
1.6
R
DS(ON)
(m
Ω
)
1.2
145
0.8
135
0.4
2
4
6
8
10
-50
0
50
100
150
-V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
2.0
10.0
8.0
Normalized V
GS(th)
1.2
1.5
6.0
-I
S
(A)
1.0
4.0
T
j
=150
o
C
T
j
=25
o
C
0.5
2.0
0.0
0.0
0
0.2
0.4
0.6
0.8
1
-50
0
50
100
150
-V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP9578GH-HF
10
1000
f=1.0MHz
C
iss
-V
GS
, Gate to Source Voltage (V)
I
D
= -5A
V
DS
= -48V
8
C (pF)
6
100
4
C
oss
C
rss
2
0
0
4
8
12
16
20
10
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
-V
DS
, Drain-to-Source Voltage (V)

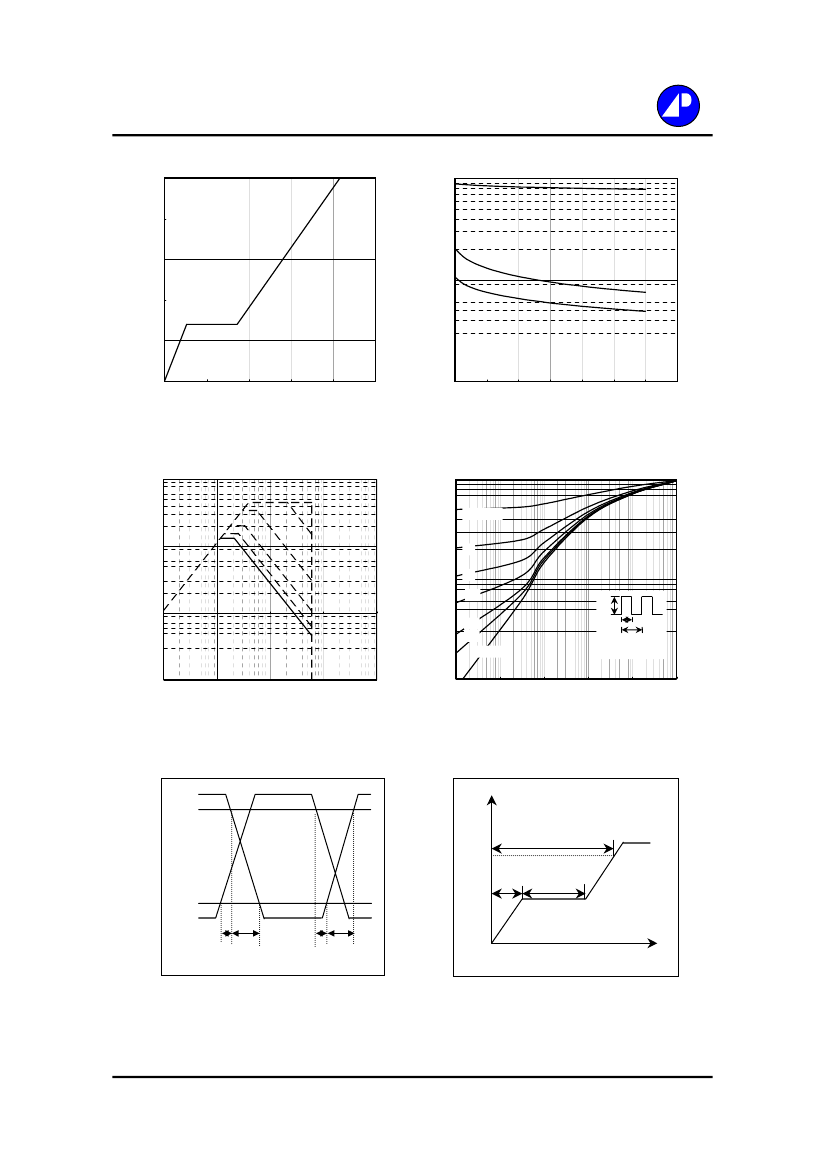

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
100
1
Normalized Thermal Response (R
thjc
)
Duty factor=0.5
-I
D
(A)
10
0.2
100us
0.1
0.1
0.05
P
DM
1ms
1
t
0.02
0.01
Single Pulse
Duty factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
T
C
=25
o
C
Single Pulse
0.1
0.1
1
10
10ms
100ms
DC
T
0.01
100
1000
0.00001
0.0001
0.001
0.01
0.1
1
-V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
-4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
AP9578GH-HF
MARKING INFORMATION
Part Number
meet Rohs requirement
for low voltage MOSFET only
Package Code
9578GH
YWWSSS
Date Code (YWWSSS)
Y：Last Digit Of The Year
WW：Week
SSS：Sequence
