ZX74AHCT04N+ datasheet, PDF - EEWORLD Datasheet

ZX74AHCT04N+: DescriptionInverter, CMOS, PDIP14; Categorylogic logic; File Size522KB，6 Pages; ManufacturerRadiation Semiconductor Corp

Download Datasheet Parametric View All

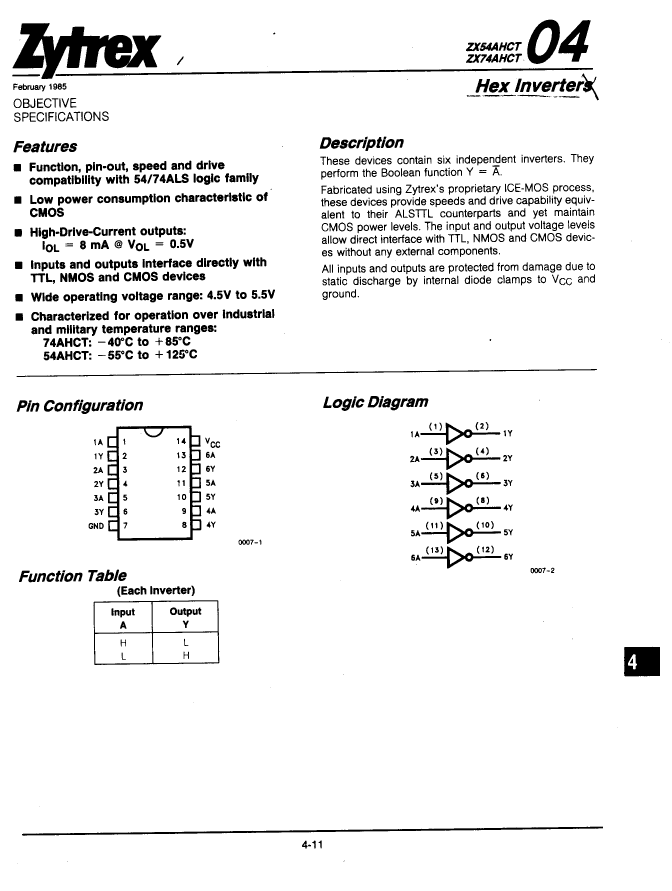

ZX74AHCT04N+ Overview

Inverter, CMOS, PDIP14

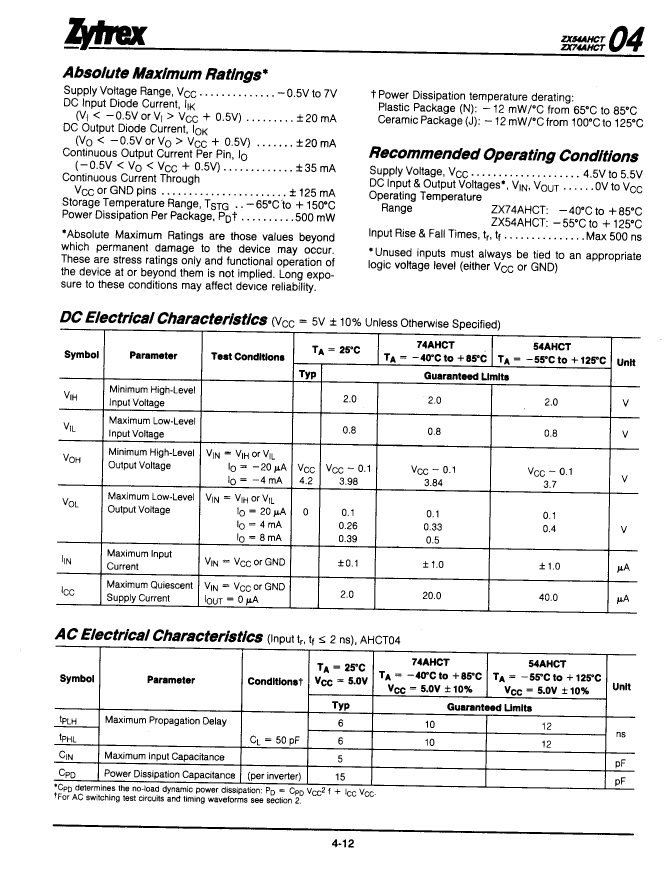

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100787402

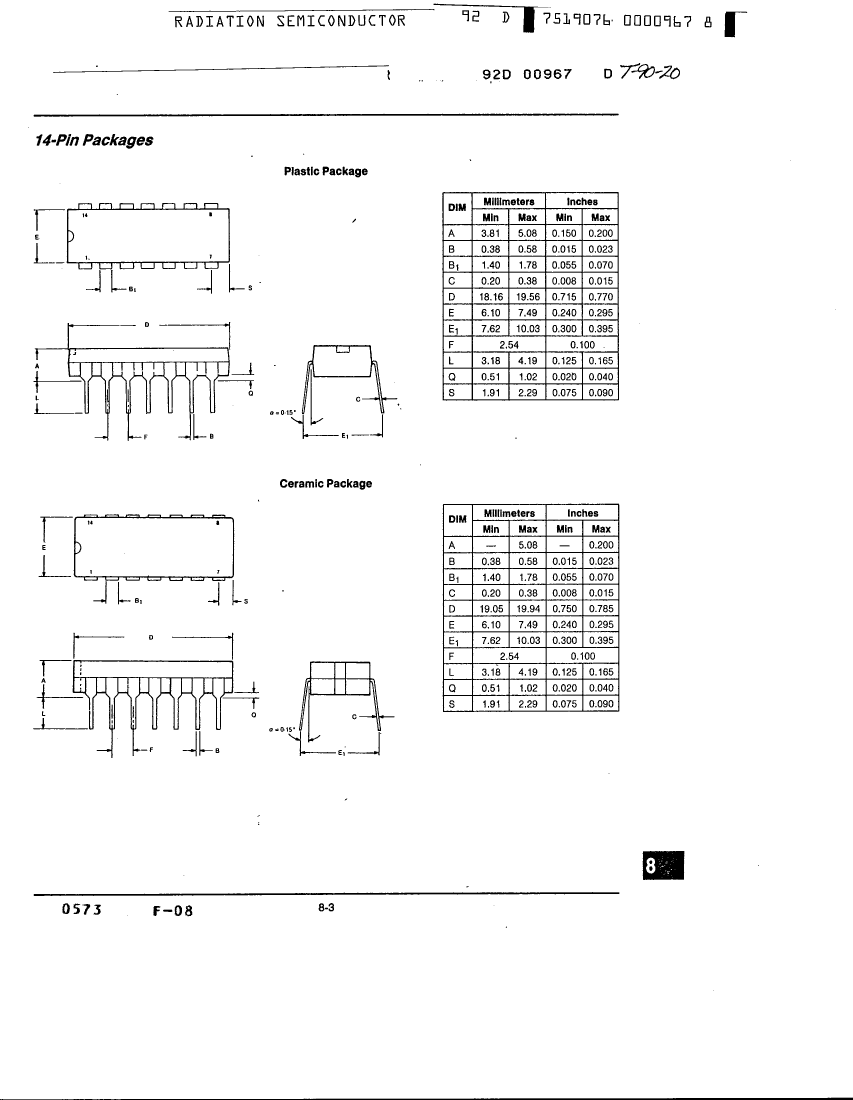

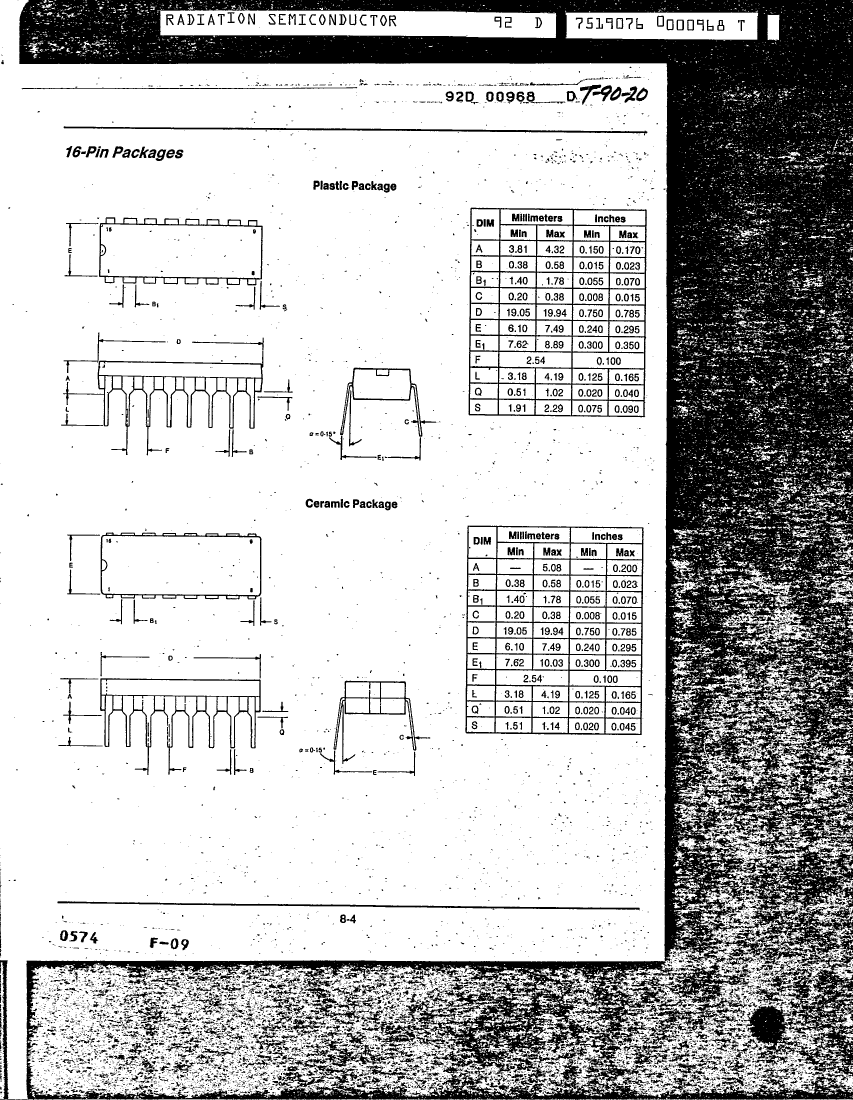

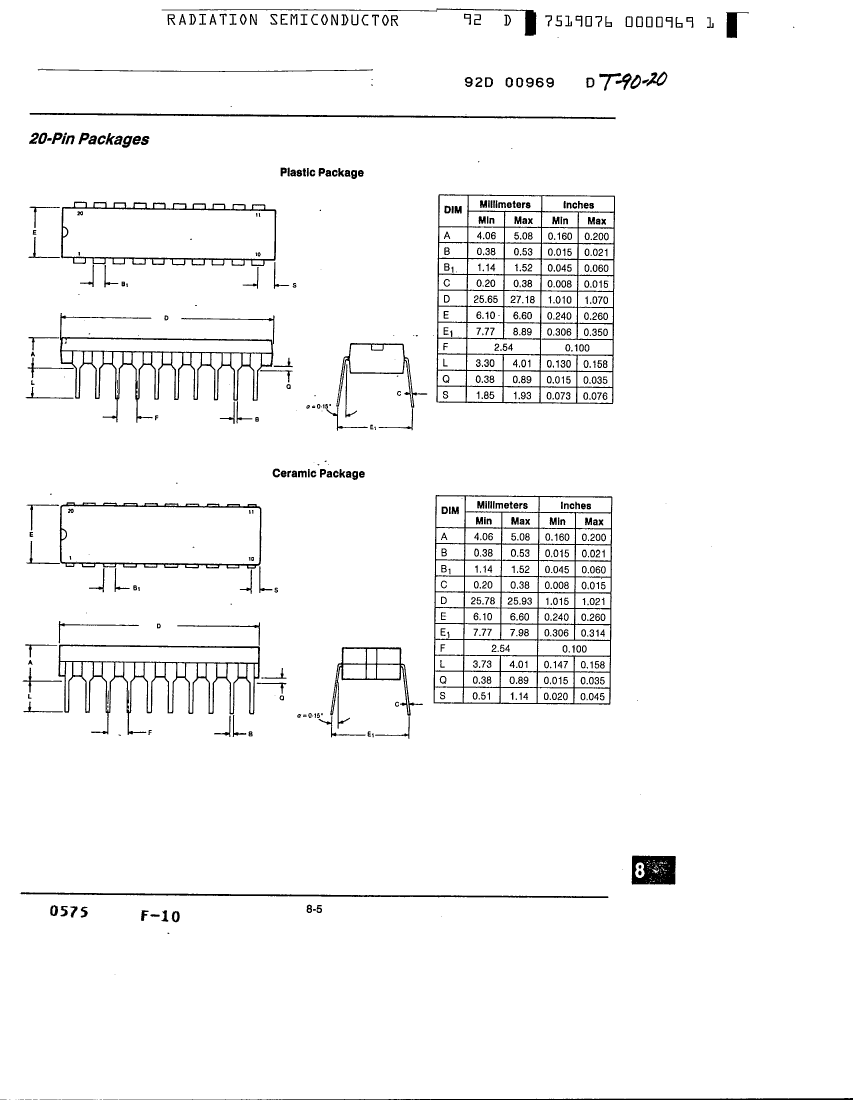

package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
