70 MHz SAW Filter
Applications
•
•
General Purpose
For IF applications
Product Features
•
•
•
•
•
•
•
•
Usable bandwidth 2.4 MHz
Low loss
High Attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 13.30 x 6.50 x 1.5mm
Hermetic
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
10
9
8
7
6
1
2
3
4
5
General Description
The 856980 is a high-performance IF SAW filter with a
center frequency of 70 MHz and a usable bandwidth of 2.4
MHz. It is suitable for a wide variety of applications,
including wireless data transceivers.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
10
5
1,6
2,3,4,7,8,9
Description
Input
Output
Ground
Case Ground
Ordering Information
Part No.
856980
856980-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 6/27/12
© 2012TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856980
70 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-55 to +85 ºC
Parameter
(3)
Conditions
at 70 MHz
69.3 – 70.7 MHz
69.3 – 70.7 MHz
69.3 – 70.7 MHz
5 – 30 MHz
30 – 50 MHz
50 – 63 MHz
77 – 85 MHz
85 – 105 MHz
105 – 130 MHz
130 – 150 MHz
150 – 200 MHz
-
-
Min
-
-
2.4
-
-
-
-
65
50
40
35
45
55
30
70
-
-
Typical
(4)
70
9
2.5
0.2
2
1.22
58.4
72
56
47
43
48
58
33
74
50
50
Max
-
10
-
0.7
5
-
130
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
dB p-p
deg p-p
µs
ns
dB
dB
dB
dB
dB
dB
dB
dB
Ω
Ω
Center Frequency
Insertion Loss
3 dB Bandwidth
(7)
Passband Ripple
(5)
Phase Ripple
Absolute Group Delay at 70 MHz
Group Delay Variation
Stopband Attenuation
(7)
Source Impedance (single-ended)
(8)
Load Impedance (single-ended)
(8)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Is defined as the peak to adjacent valley change in amplitude.
6. An external impedance matching network +/- 2% tolerance will be necessary to achieve proposed return loss
7. Relative to 0 dB.
8. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Rating
-55 to +85
o
C
-55 to +85
o
C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Preliminary Data Sheet: Rev - 6/27/12
© 2012TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856980
70 MHz SAW Filter

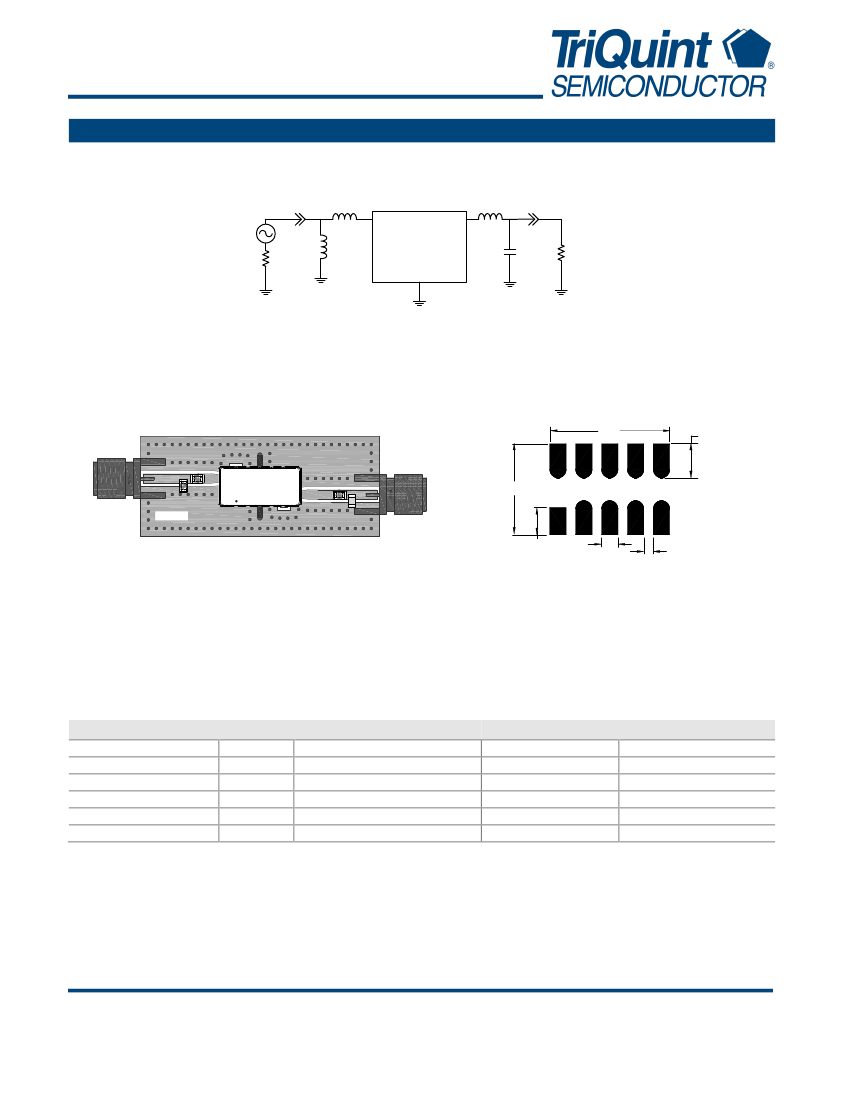

Reference Design – 50Ω SE Input, 50Ω SE Output
Ω
Ω
Schematic
27nH
10
5
68pF
1,2,3,4,
6,7,8,9
50Ω
Ω
150nH
50
Ω
Single-ended
Input
50Ω
Ω
240nH
50
Ω
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitics
PC Board
Mounting Configuration
8.86
2.51
L1
L2
TriQuint
856980
YYWW
L3
C1
6.70
960656
2.00
1.22
.69
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
L3
C1
SMA
PCB
Value
240nH
27nH
150nH
68pF
N/A
N/A
Description
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 08053, 5%
Coil Wire-wound, 0805, 5%
Chip Capacitor, 0805, 5%
SMA connector
3-layer
Manufacturer
CoillCraft
CoillCraft
CoillCraft
Murata
Radiall USA Inc.
multiple
Part Number
0805CS-241XJLC
0805CS-270XJLC
0805CS-151XJLC
GRM2165C1H680JZ01
9602-1111-018
960656
Preliminary Data Sheet: Rev - 6/27/12
© 2012TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856980
70 MHz SAW Filter

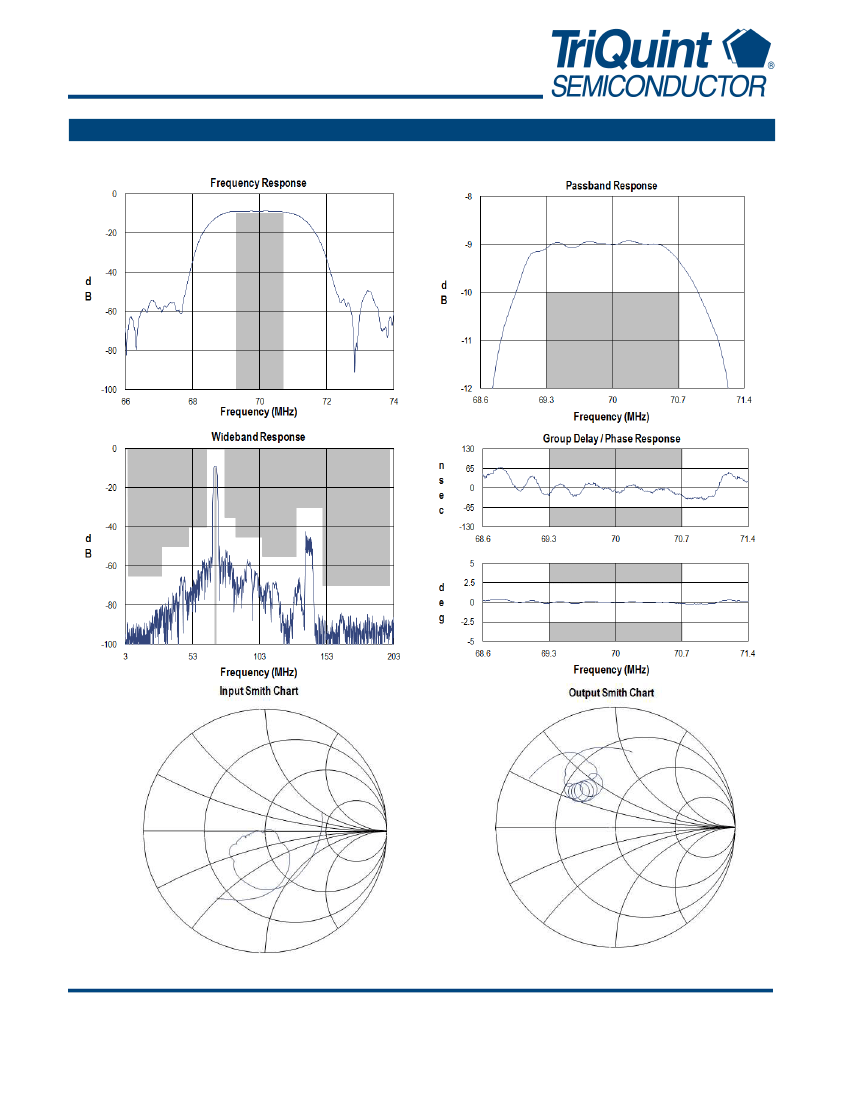

Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev - 6/27/12
© 2012TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856980
70 MHz SAW Filter

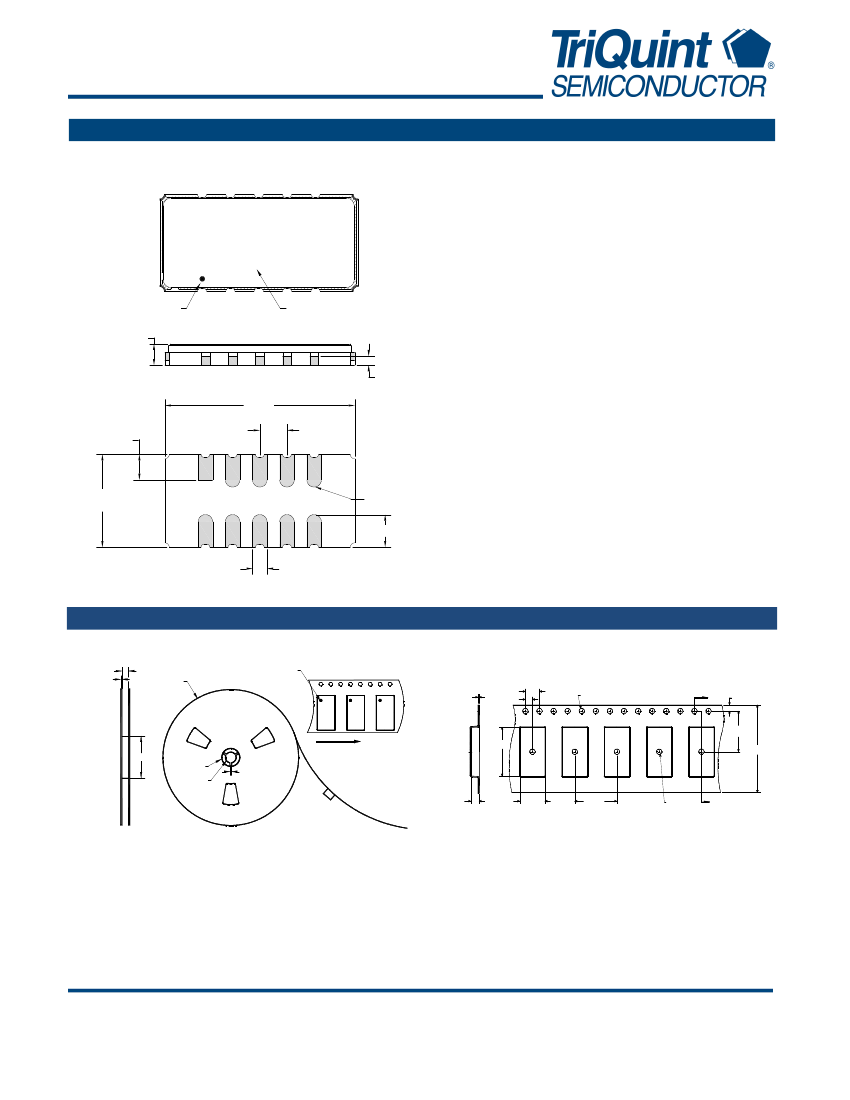

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
856980
YYWW
Package Style: SMP-53C
Dimensions: 13.3 x 6.50 x 1.50 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm, over a 2-6µm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
0.64
13.3
1.80
1.91
ID Dot
Date Code
1.50 NOM.
1.65 MAX.
The date code consists of: YY =The last two digits of the
year (2 Digits), WW = the calendar week of the year (2
Digits)
6.50
R0.51
2.31
1.02
Tape and Reel Information
Standard T/R size = 2000 units/reel. All dimensions are in millimeters
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
13.9
24
2.3
Section A-A
7.1
12.0
Ø1.5
A
Preliminary Data Sheet: Rev - 6/27/12
© 2012TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
