DSM-7W2-AC6(061) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DSM-7W2-AC6(061)

DSM-7W2-AC6(061): DescriptionD Subminiature Connector, 5 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerCambridge Electronic Industries Ltd

Download Datasheet Parametric View All

DSM-7W2-AC6(061) Overview

D Subminiature Connector, 5 Contact(s), Female, Solder Terminal,

DSM-7W2-AC6(061) Parametric

Parameter Name	Attribute value
Objectid	1510372366
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (31)
Contact completed and terminated	GOLD (31)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

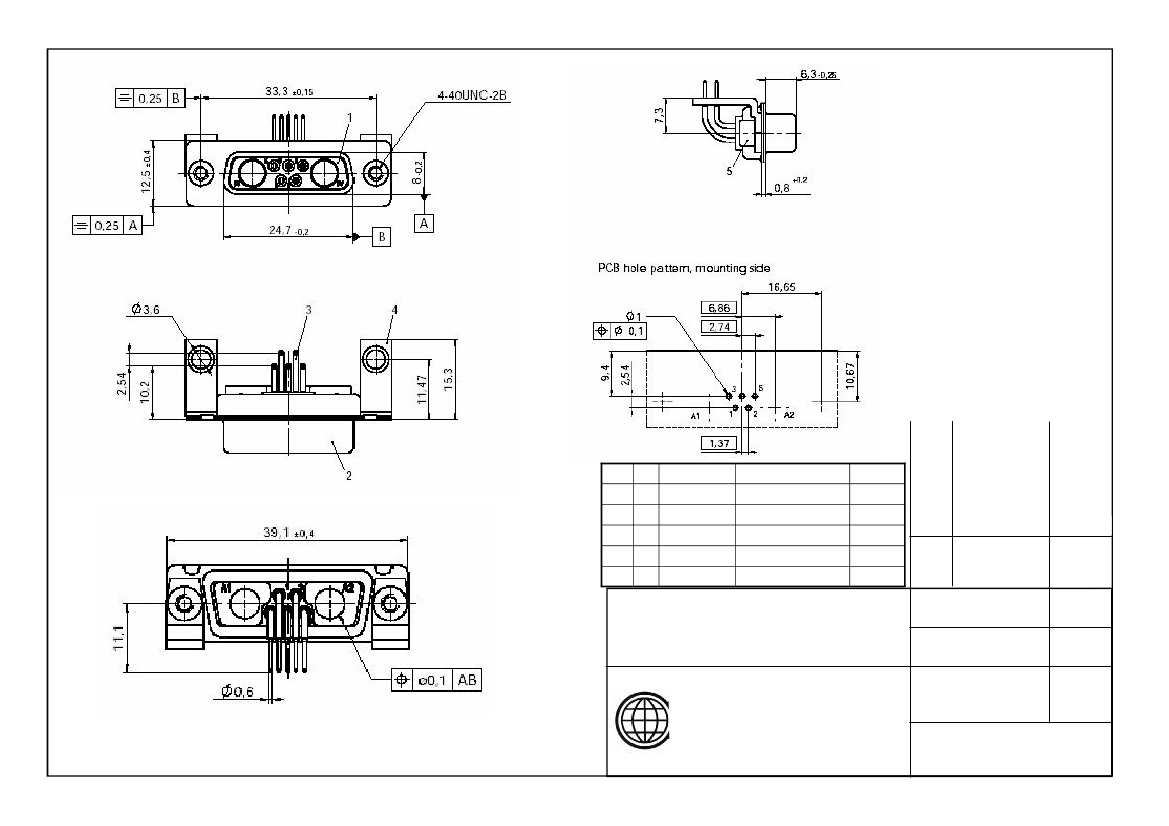

Clinch nut

Bracket

MW 4-40/Steel

F1080-13B/steel

tin plated

0.8µm Au

tin plated

Green

Plating

Signal Contact S5/Brass

Shell

Insulator

Steel

PBTP(-55ºC - +130ºC)

Desc.

Iss.

No.

Issue

CHANGE

P.F.

D.C.

7/6/04

Sig.

Date

7/6/04

Item Qty Part

TITLE

D Subminiature Mixed Layout Connector

Originated

Drn.

Chkd.

7/6/04

Cambridge Connectors

Denny Industrial Centre, Waterbeach, Cambridge.

CB5 9PB Tel: (01223) 860041 Fax: (01223)

Dwg. No.

DSM-7W2-AC6(061)
