GP1601 - GP1607
Taiwan Semiconductor
CREAT BY ART

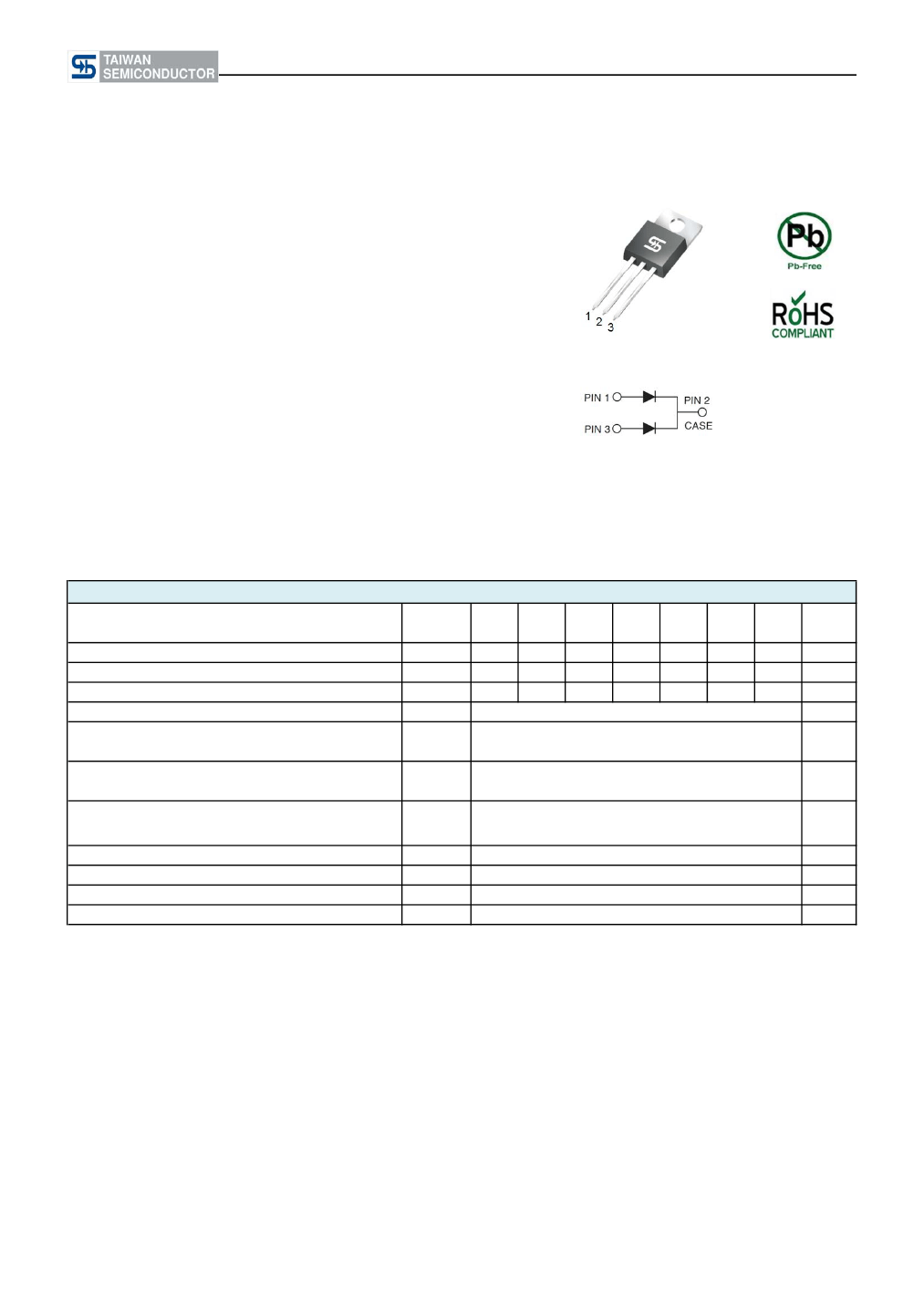

16A, 50V - 1000V Glass Passivated Rectifiers
FEATURES
- High efficiency, low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
TO-220AB
MECHANICAL DATA
Case:
TO-220AB
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.82 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage
@8A
Maximum reverse current @ rated V
R
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1 MHz and applied reverse voltage of 4.0 V DC.
(Note 1)
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
R
θJC
T
J
T
STG
GP
1601
50
35
50
GP
1602
100
70
100
GP
1603
200
140
200
GP
1604
400
280
400
16
150
1.1
10
250
50
1.5
- 55 to +150
- 55 to +150
GP
1605
600
420
600
GP
1606
800
560
800
GP
1607
1000
700
1000
UNIT
V
V
V
A
A
V
μA
pF
°C/W
°C
°C
Version: F1511
GP1601 - GP1607
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
GP160x
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
TO-220AB
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (GP1601) to 1000V (GP1607)
EXAMPLE
EXAMPLE
PART NO.
GP1601HC0G
PART NO.
GP1601
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

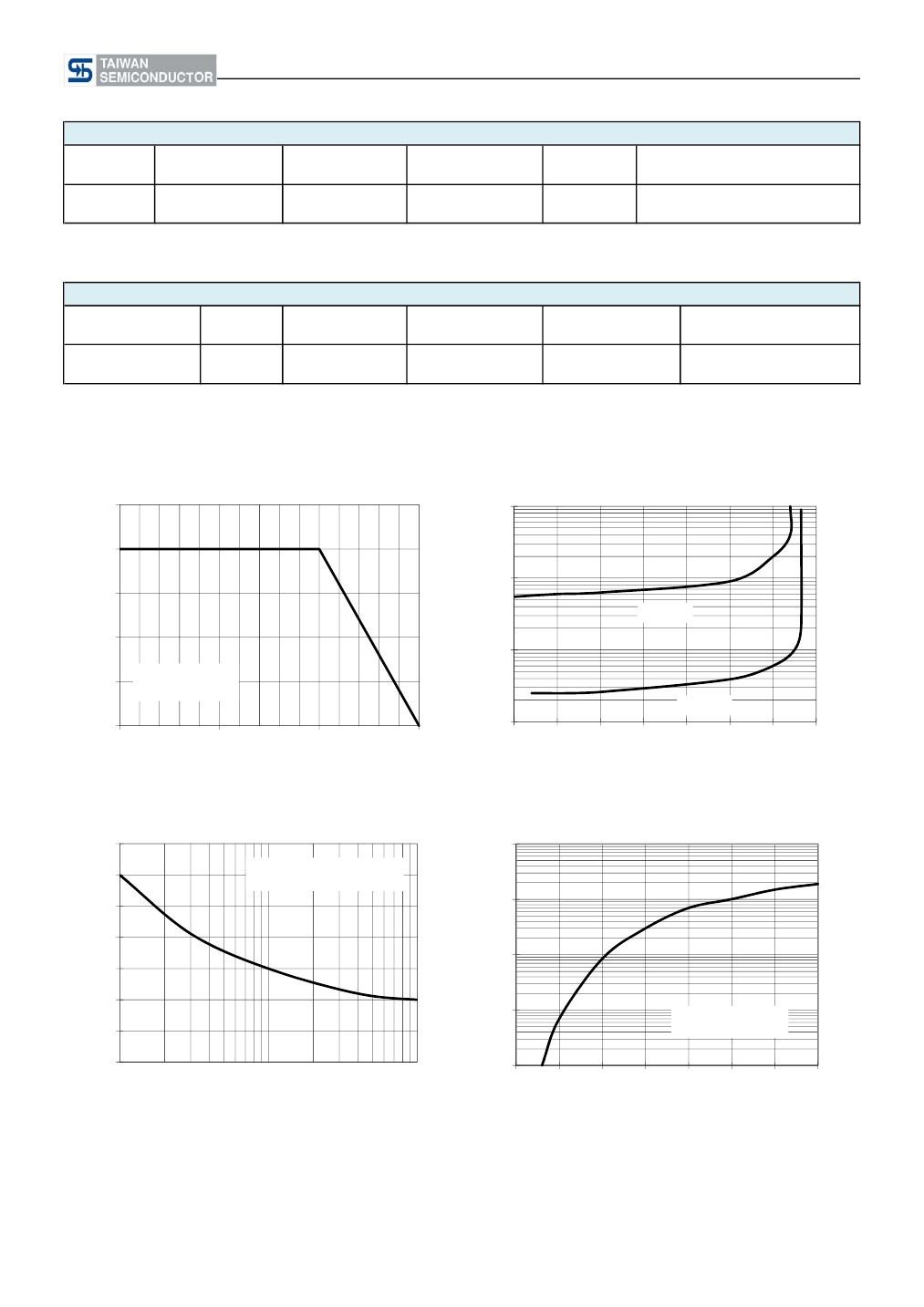

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXMUM FORWARD CURRENT
DERATING CURVE
18
INSTANTANEOUS REVERSE CURRENT (μA)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
AVERAGE FORWARD CURRENT(A)
16
10
14
T
J
=125°C
1
12
10
Resistive of
inductive load
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
8
0
50
100
150
CASE TEMPERATURE(
°
C)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
175
150
125
100
75
50
25
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms single half sine wave
INSTANTANEOUS FORWARD CURRENT (A)
PEAK FORWARD SURGE CURRENT(A)
1000
FIG. 4 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
10
1
Pulse width=300μs
1% duty cycle
0.1
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
Version: F1511
GP1601 - GP1607
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
120
JUNCTION CAPACITANCE (pF)
100
80
60
40
20
0
1
10
REVERSE VOLTAGE (V)
f=1.0MHz
Vslg=50mVp-p
100

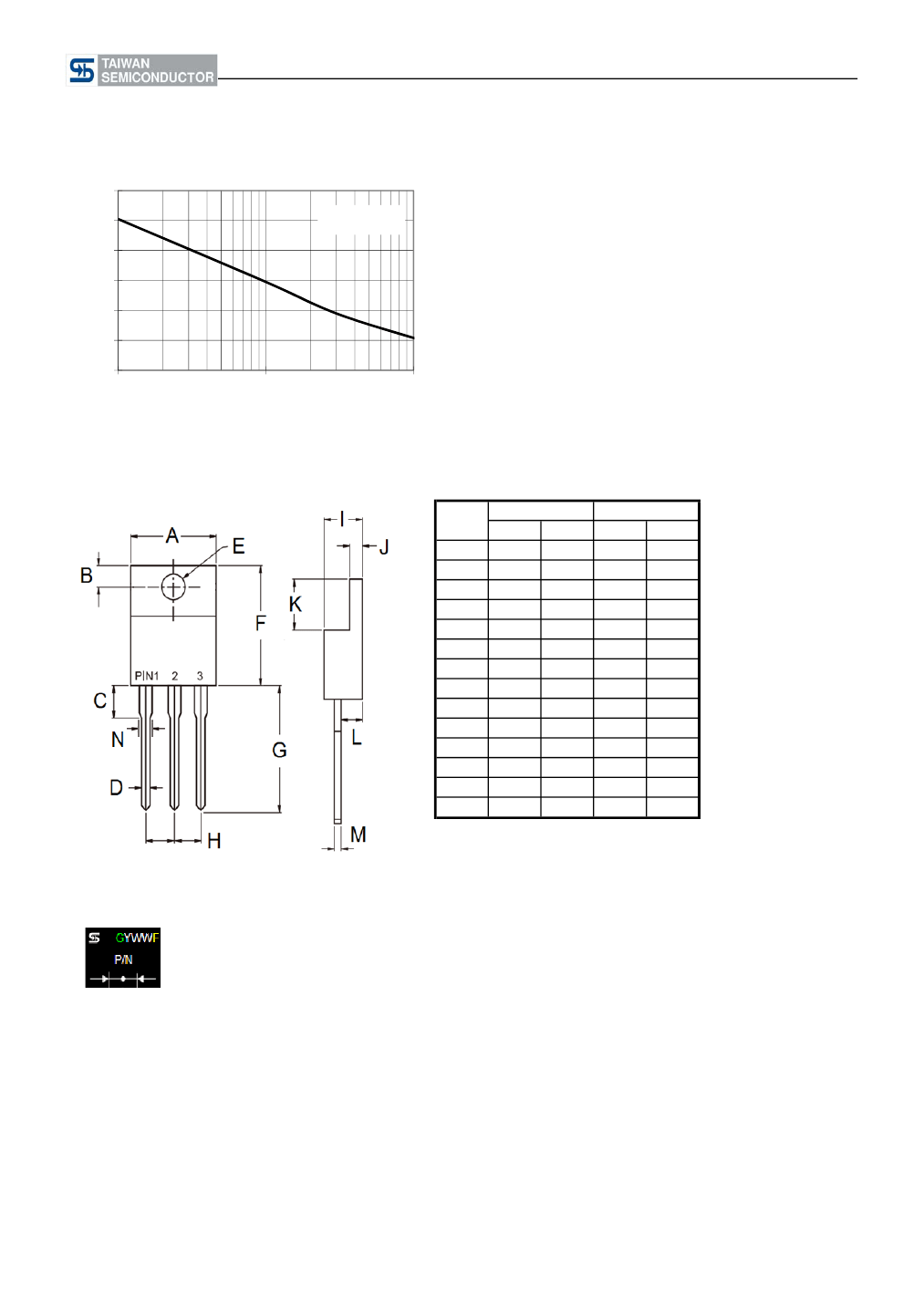

PACKAGE OUTLINE DIMENSIONS
TO-220AB
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
13.19
2.41
4.42
1.14
5.84
2.20
0.35
1.14
Max
10.50
3.44
4.20
0.94
4.00
16.00
14.79
2.67
4.76
1.40
6.86
2.80
0.64
1.77
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.519
0.095
0.174
0.045
0.230
0.087
0.014
0.045
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.582
0.105
0.187
0.055
0.270
0.110
0.025
0.070
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: F1511
GP1601 - GP1607
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: F1511
