9601S-B2-01-10: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9601S-B2-01-10 Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

9601S-B2-01-10 Parametric

Parameter Name	Attribute value
Objectid	1320422687
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.335 inch
body length	2.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600S
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100

Preview

Download Datasheet

View All

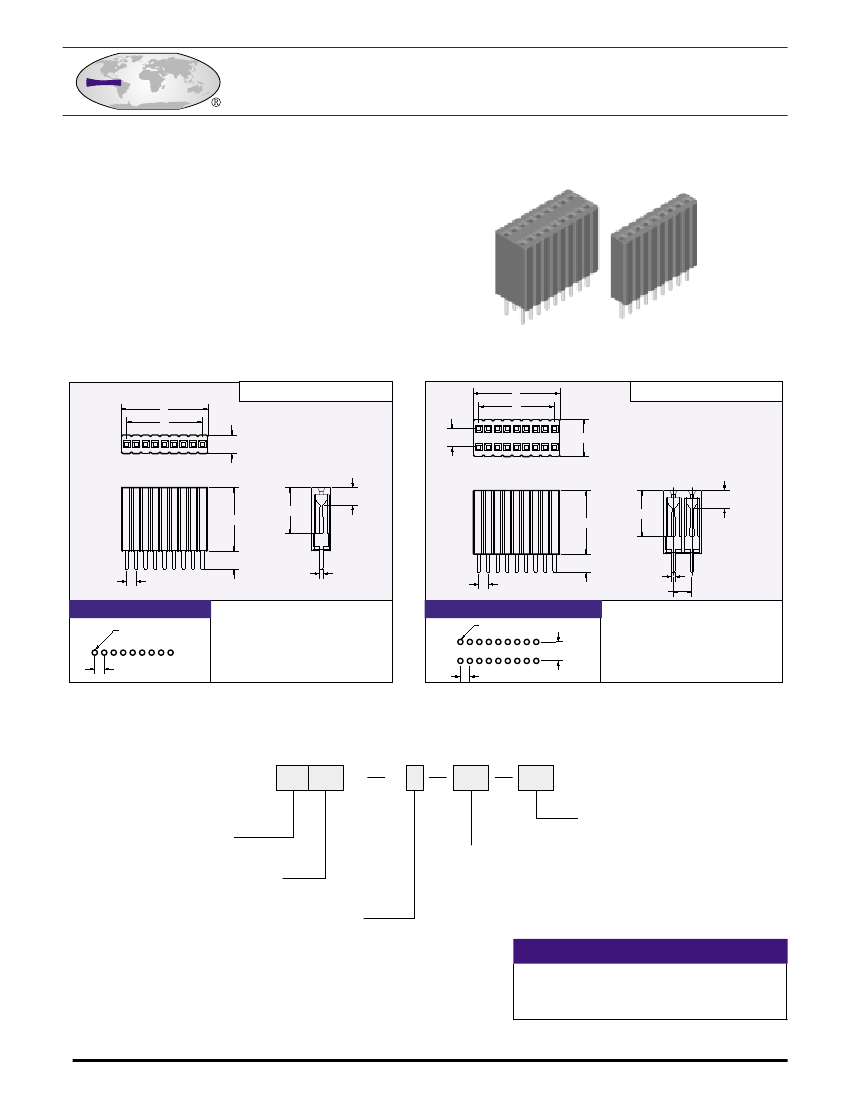

Specifications

.050 [1.27] High Profile Sockets

9600S Series Sockets

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options)

.Insulation Resistance:

5000 M ohms min.

Contact Resistance:

20 m ohms max.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max. Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

SINGLE ROW

.098 [2.50]

.100 [2.54]

.197 [5.00]

DOUBLE ROW

.094 [2.38]

.335 [8.50]

.243 [6.18]

.335 [8.50]

.243 [6.18]

.094 [2.38]

TAIL LENGTH

.050 [1.27]

Ø .018 [.46]

.050 [1.27]

TAIL LENGTH

Ø .018 [.46]

.100 [2.54]

PCB LAYOUT

.028±.003 [.70±0.05]

= .050 x No. of Pos.

= .050 x (No. of Cont. -1)

PCB LAYOUT

.028±.003 [.70±0.05]

= .050 x No. of Pos.

= .050 x (No. of Cont./2 -1)

.100 [2.54]

.050 [1.27]

DIMENSIONS ARE IN INCHES [MM]

PART NUMBERING

96 XX S

SERIES CODE

.050 SOCKETS

B X

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

= 100µ”Sn

100µ”Sn

= Au Flash

100µ”Sn

= Au Flash

Au Flash

= 10µ”Au

100µ”Sn

= 30µ”Au

100µ”Sn

NO. OF CONTACTS

SINGLE ROW =

03 - 36

DOUBLE ROW =

06 - 98

100 =

TAIL LENGTH

NO. OF ROWS

= SINGLE ROW

= DOUBLE ROW

= .106 [2.70] (STANDARD)

= .087 [2.20]

= .118 [3.00]

= .189 [4.80]

SUGGESTED MATING CONNECTORS

SINGLE ROW:

96XX-AX-02-XX

(F-05)

96XX-BX-02-XX

(F-06)

96XX-CX-02-XX-XXX (F-07)

DOUBLE ROW:

(F-14)

96XX-JX-X2-XX

(F-15)

96XX-K1-02-XX

96XX-C2-02-XX-XXX (F-07)

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
