BUX80 datasheet, PDF - EEWORLD Datasheet

BUX80: Description10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3; Categorysemiconductor Discrete semiconductor; File Size119KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

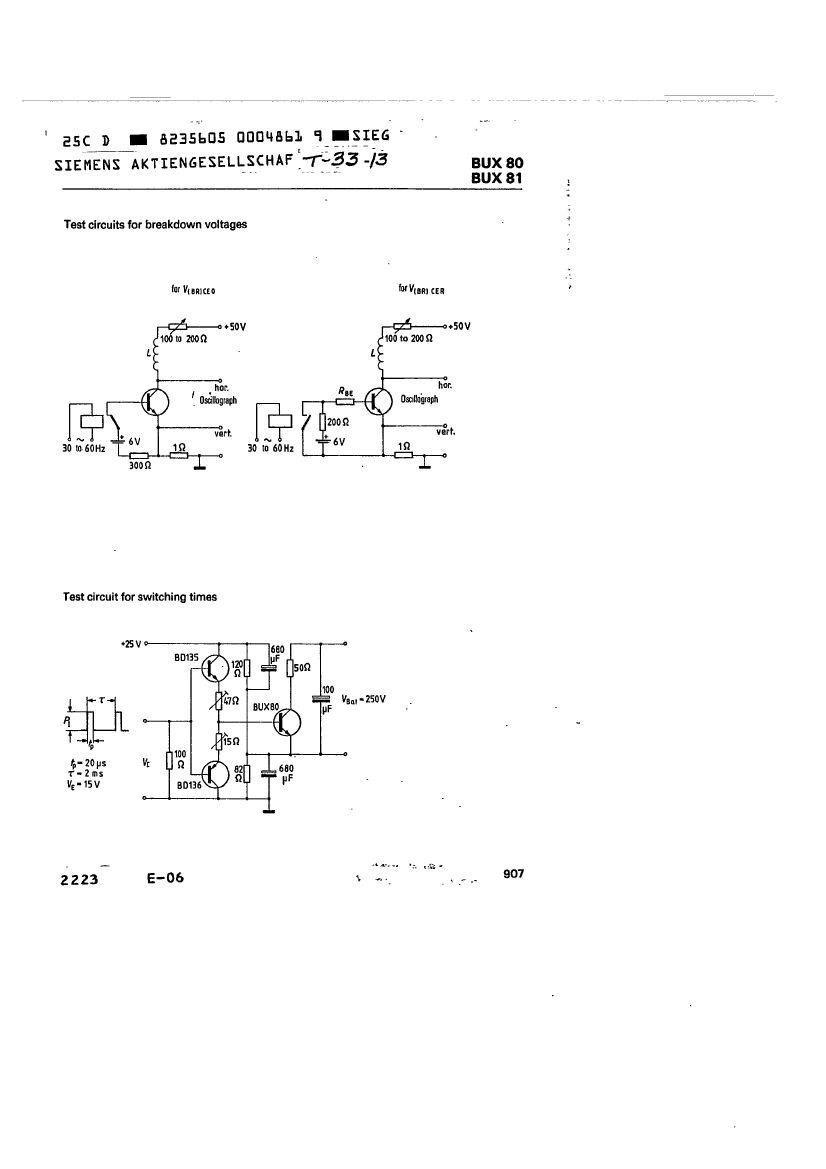

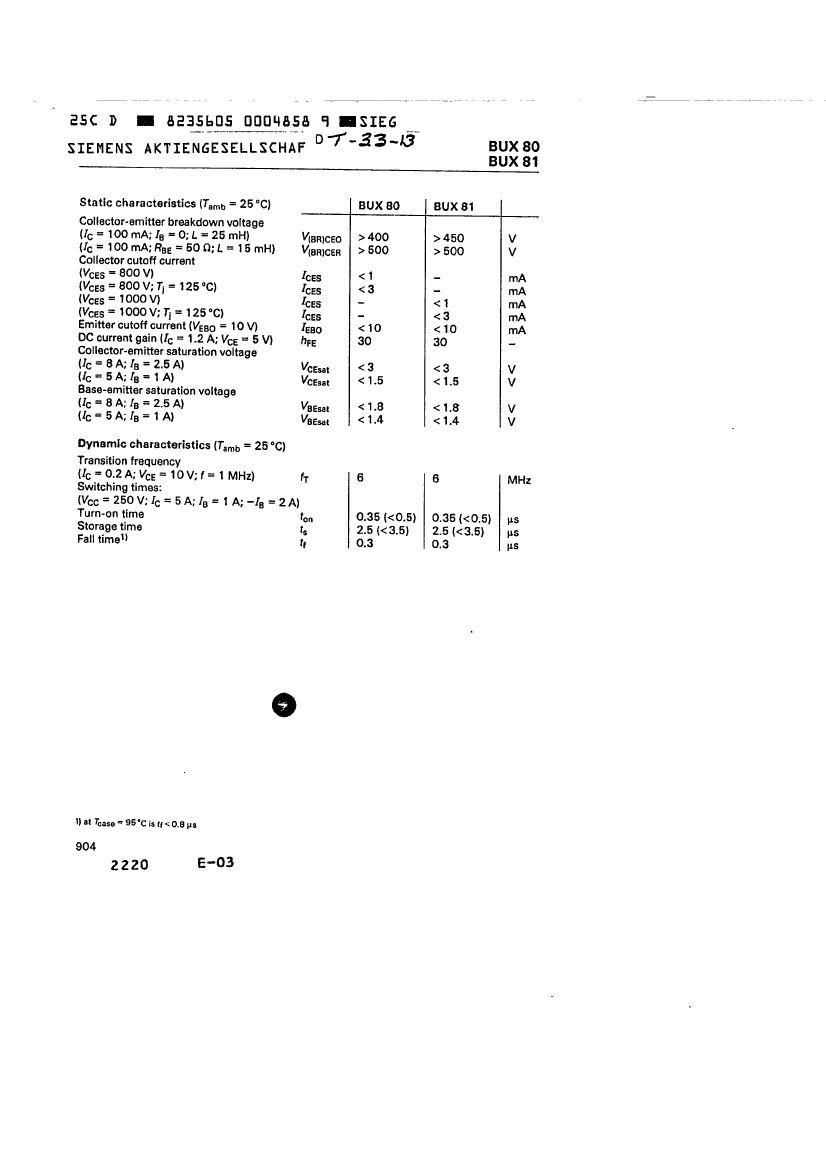

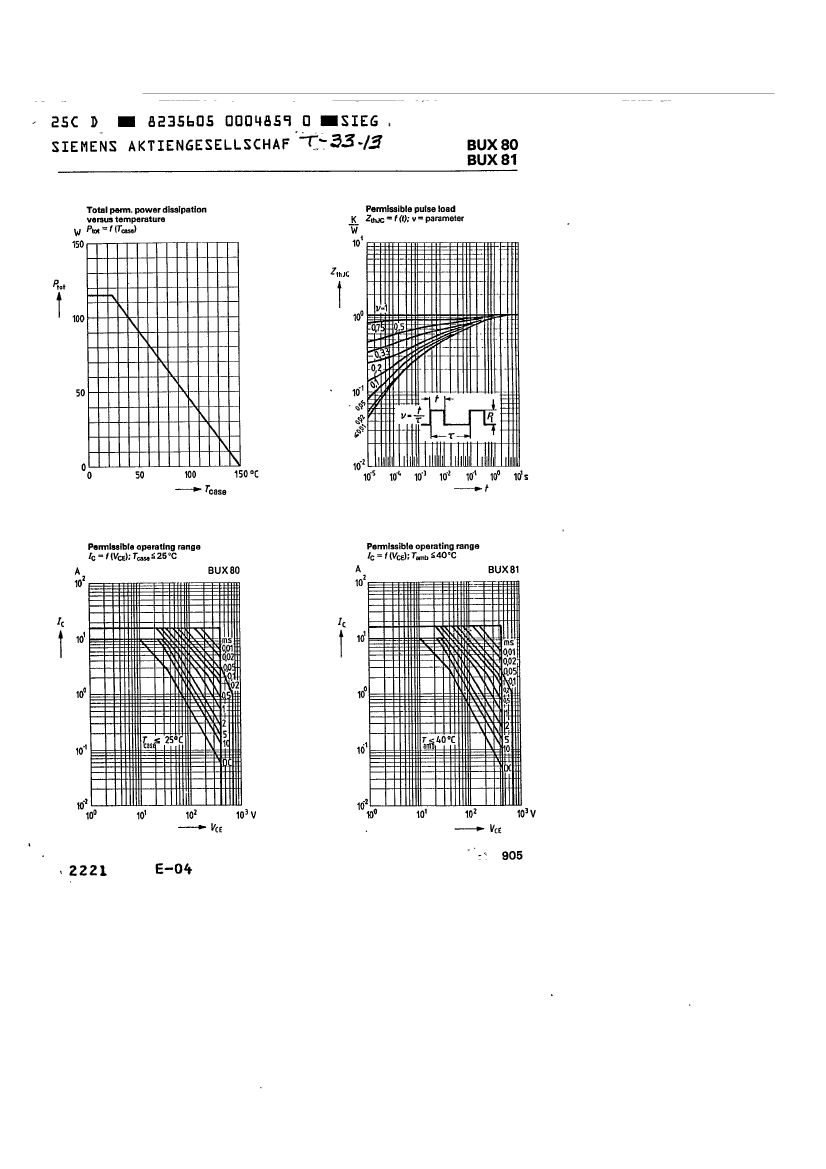

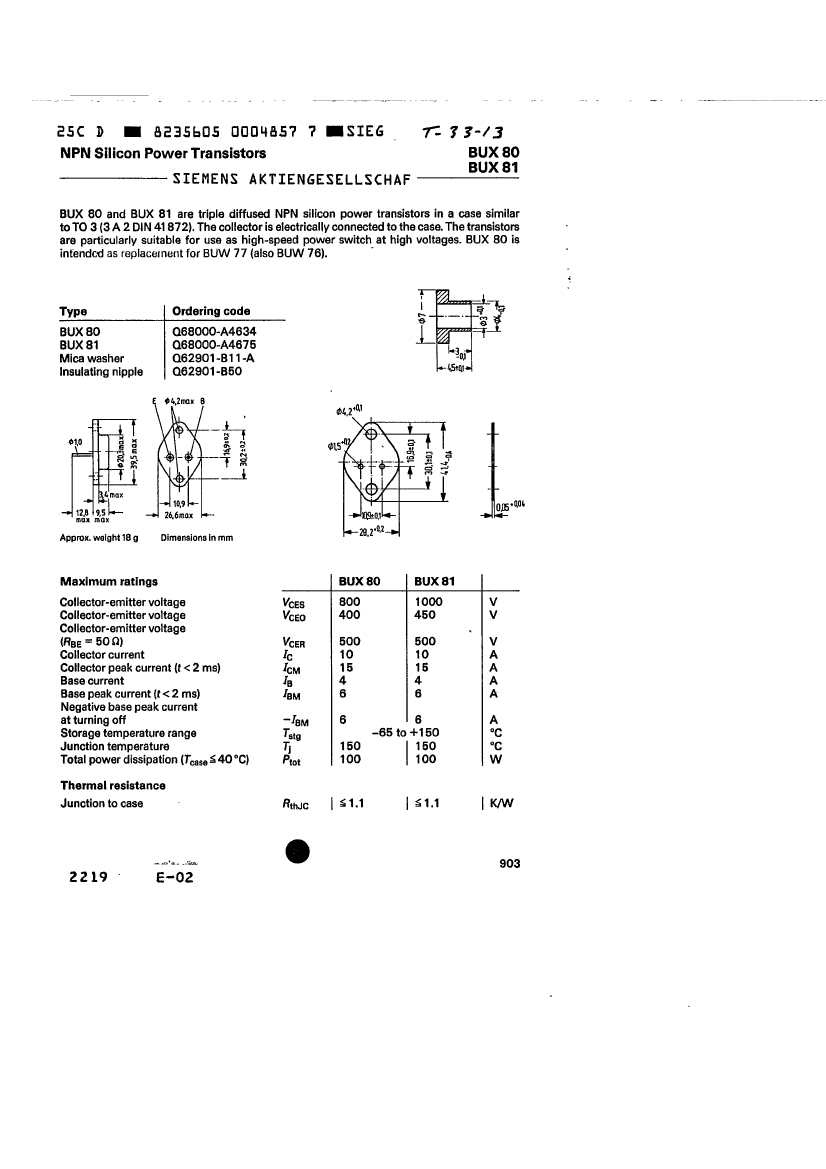

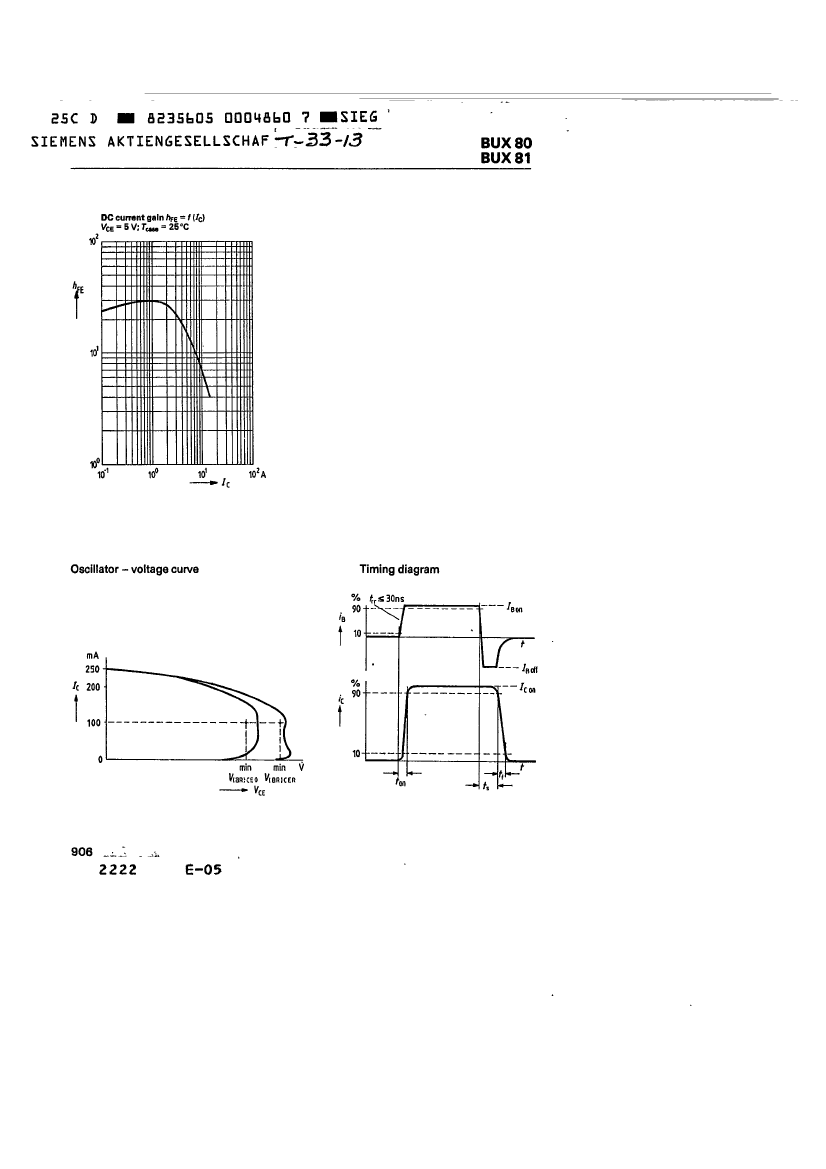

BUX80 Overview

10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3

Parameter Name	Attribute value
Number of terminals	2
Transistor polarity	NPN
Maximum collector current	10 A
Maximum Collector-Emitter Voltage	400 V
Processing package description	TO-3, 2 PIN
state	ACTIVE
packaging shape	ROUND
Package Size	FLANGE MOUNT
Terminal form	PIN/PEG
terminal coating	TIN LEAD
Terminal location	BOTTOM
Packaging Materials	METAL
structure	SINGLE
Shell connection	COLLECTOR
Number of components	1
Transistor component materials	SILICON
Maximum ambient power consumption	100 W
Transistor type	GENERAL PURPOSE POWER

	BUX80	Q68000-A4675	Q68000-A4634	Q62901-B50	Q62901-B11-A
Description	10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3	10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3	10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3	10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3	10 A, 400 V, NPN, Si, POWER TRANSISTOR, TO-3
Number of terminals	2	2	2	2	2
Transistor polarity	NPN	NPN	NPN	NPN	NPN
Maximum collector current	10 A	10 A	10 A	10 A	10 A
Maximum Collector-Emitter Voltage	400 V	400 V	400 V	400 V	400 V
Processing package description	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package Size	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Packaging Materials	METAL	METAL	METAL	METAL	METAL
structure	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Number of components	1	1	1	1	1
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum ambient power consumption	100 W	100 W	100 W	100 W	100 W
Transistor type	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER
