RJB-50V221MH4#-T2 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> RJB-50V221MH4#-T2

RJB-50V221MH4#-T2: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 220uF,; CategoryPassive components capacitor; File Size172KB，2 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric View All

RJB-50V221MH4#-T2 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 220uF,

RJB-50V221MH4#-T2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	223035321
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM
length	16 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	850 mA
series	RJB
Terminal pitch	5 mm

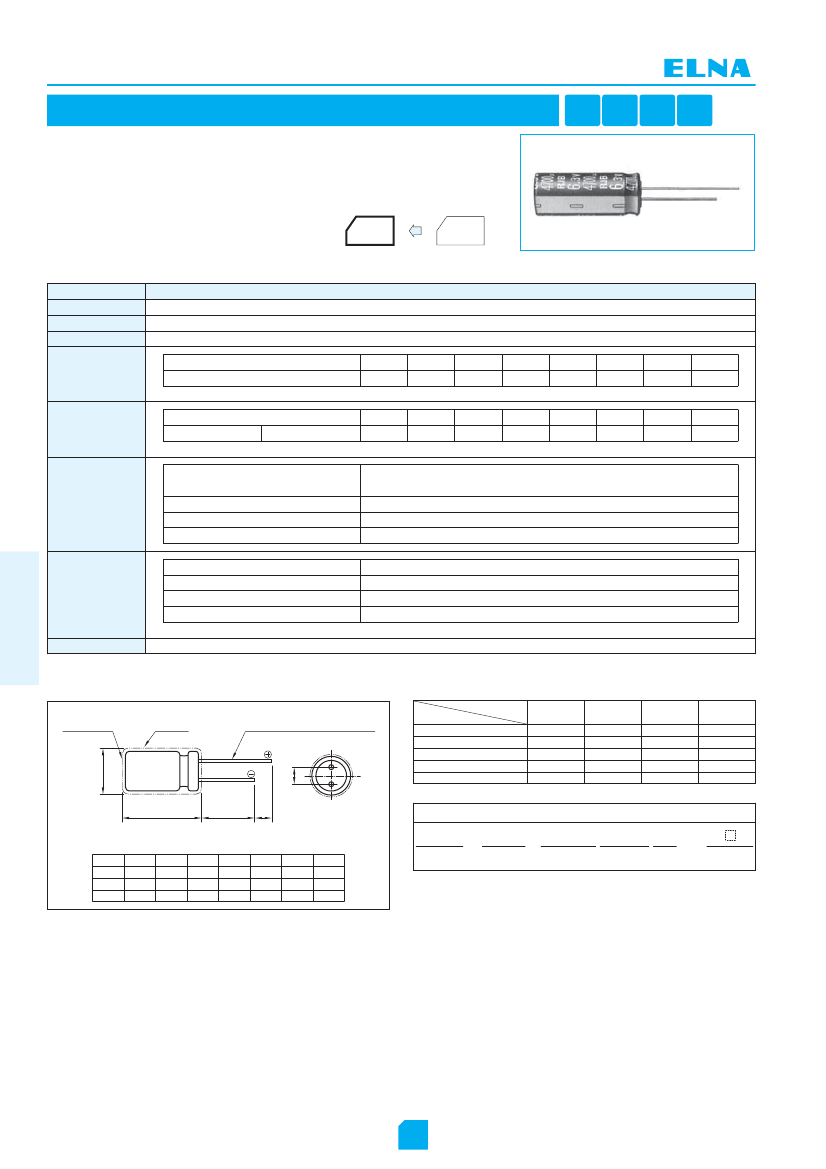

Preview

Download Datasheet

View All

RJB

●

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Smaller and higher ripple current than RJH Series.

Guarantees 5000 hours at 105°

(φ 5 to 6.3 : 2000 hours ; φ 8 to 10 : 3000 hours)

RJB

RJJ

Marking color : White print on a black sleeve

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Performance

ー55 to ＋105

±20

Less than 0.01CV ＋ 2 (after 2 minutes) C : Rated capacitance (µF) ; V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

0.02 is added to every 1000µF increase over 1000µF.

Rated voltage (V)

Impedance ratio (max.)

Ｚ

−55℃/Ｚ

＋20℃

6.3

0.22

0.19

0.16

0.14

0.12

0.10

0.08

100

0.07

(20℃,120Hz)

100

(120Hz)

(φ5 to 6.3 : 2000 hours)

(φ8 to 10 : 3000 hours)

(20℃,120Hz)

(20℃)

Leakage current (µA)

Tangent of loss angle

(tanδ)

Characteristics at high

and low temperature

Test time

Endurance (105℃)

(Applied ripple current)

Leakage current

Percentage of capacitance change

Tangent of the loss angle

Miniature

Aluminum Electrolytic Capacitors

●

5000 hours

The initial speciﬁed value or less

Within ±20% of initial value

200% or less of the initial speciﬁed value

Test time

Leakage current

Shelf life (105℃)

Percentage of capacitance change

Tangent of the loss angle

Voltage application treatment

Applicable standards

1000 hours

The initial speciﬁed value or less

Within ±15% of initial value

150% or less of the initial speciﬁed value

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Outline Drawing

Vent (exceptφ5)

Unit : mm

Coeﬃcient of Frequency for Rated Ripple Current

Frequency (Hz)

Rated

capacitance (µF)

0.47 to 180

220 to 390

470 to 1800

2200 to 3900

4700 to 10000

120

0.40

0.50

0.60

0.75

0.85

0.75

0.85

0.88

0.90

0.95

10k

0.90

0.95

0.96

0.98

100k

Sleeve

φd±0.05 copper clad steel wire (tinned)

φD＋0.5max.

L＋ max.

15min.

min.

F±0.5

Part numbering system (example : 10V1000µF)

RJB

Rated voltage

symbol

102

H4 # ̶

Taping(Forming)

symbol

φD

φd

2.0

0.5

1.0

6.3

2.5

0.5

1.0

3.5

0.6

1.0

5.0

0.6

2.0

12.5

5.0

0.6

2.0

7.5

0.8

2.0

7.5

0.8

2.0

Series code

Rated capacitance

Capacitance

Casing

symbol

tolerance symbol symbol

The electric characteristics are described on page 172.

CAT.No.2013/2014E

100

NOTE

Design, Speciﬁcations are subject to change without notice.

Ask factory for technical speciﬁcations before purchase and/or use.
