Part Number

Search

5414DM

Description
Inverter, TTL, CDIP14,
Categorylogic    logic
File Size182KB,6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

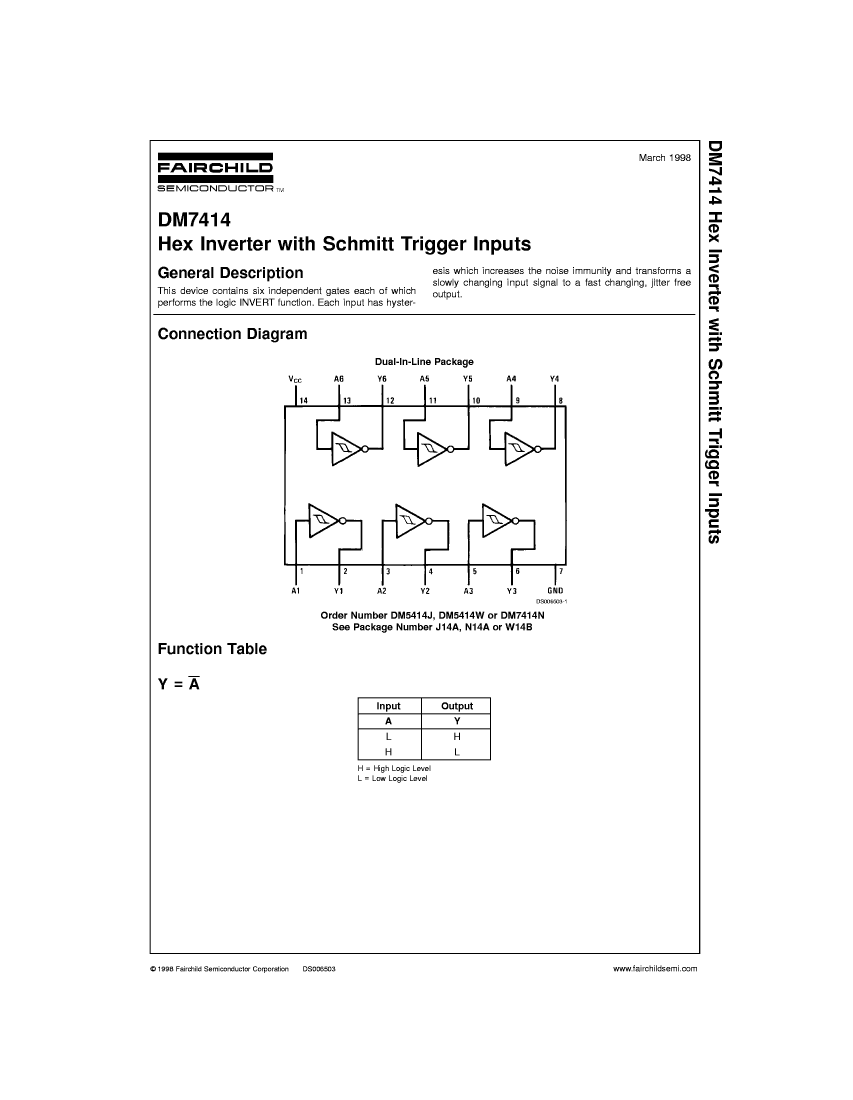

5414DM Overview

Inverter, TTL, CDIP14,

5414DM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1435989124
package instructionDIP, DIP14,.3
Reach Compliance Codecompliant
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Logic integrated circuit typeINVERTER
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Schmitt triggerYES
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
