LCDA05
Low Capacitance TVS Diode Array For High-Speed Data Interfaces
Features
●
●
●
●
●
Ultra low leakage: nA level
Operating voltage: 5V
Low clamping voltage
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±15kV
Contact discharge: ±8kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
– IEC61000-4-5 (Lightning) 24A (8/20μs)
RoHS Compliant
Dimensions SOP-08

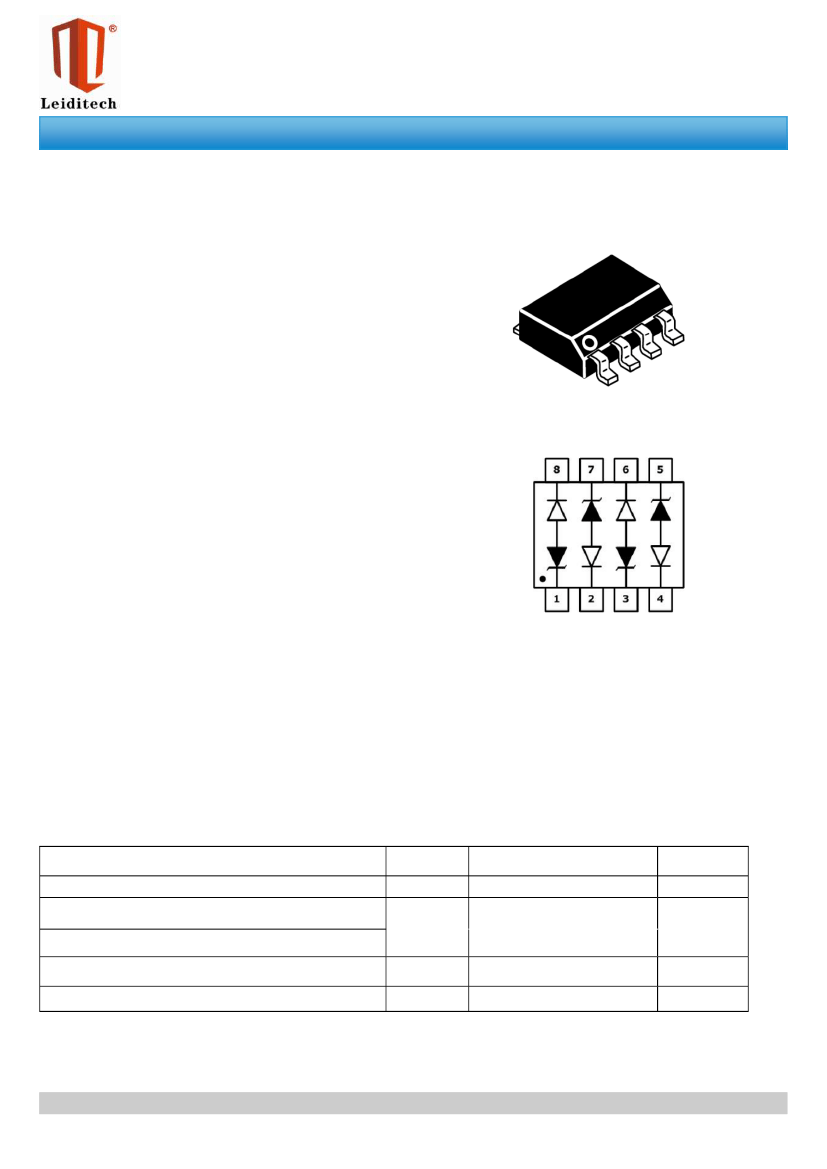

Pin Configuration
Applications
●
●
●
●
●
●
USB 2.0 power and data line
Set-top box and digital TV
Digital video interface (DVI)
Notebook Computers
SIM Ports
10/100 Ethernet
Mechanical Characteristics
●
Package: SOP-08
Lead Finish: Lead Free
UL Flammability Classification Rating 94V-0
Quantity Per Reel:500pcs
Reel Size:7 inch
●
●
●
●
Absolute Maximum Ratings
(Tamb=25°C unless otherwise specified)
Parameter
Peak Pulse Power (8/20µs)
ESD per IEC 61000−4−2 (Air)
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
T
J
T
STJ
Symbol
Ppp
V
ESD
Value
500
±15
Unit
W
Kv
±8
-55 to +125
-55 to +150
℃
℃
Rev
:
01.06.2014
1/3
www.leiditech.com
LCDA05
Electrical Characteristics
(TA=25°C unless otherwise specified)
Vc
Part Number
Device
Marking
V
RWM
(V)
V
BR
(V)
I
T
(mA)
V
C
@1A
(Max)
13.5
(@A)
42
I
R
μA
(Max)
20
C
(Pf)
(Typ.)
5
LCDA05
LCDA05
5
6
1
9.8

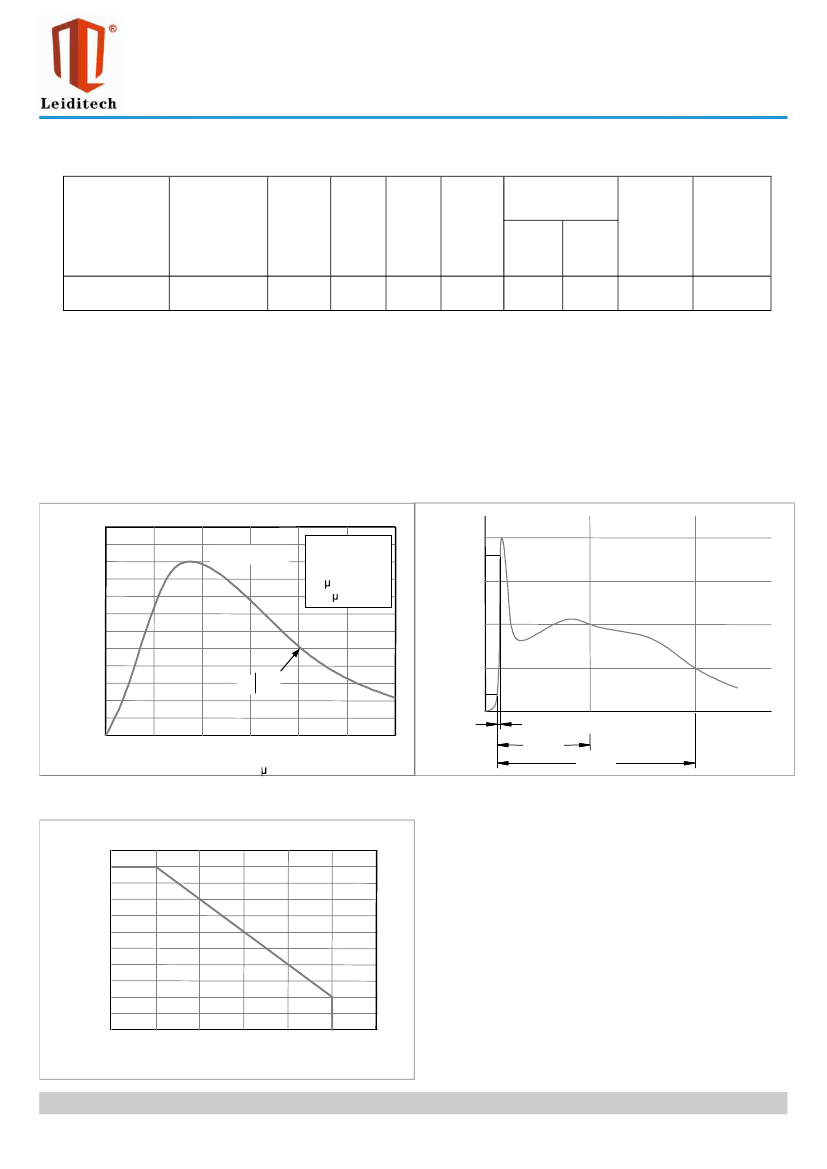

Characteristic Curves
Fig1. 8/20µ s Pulse Waveform
120
I
PP
- Peak Pulse Current - % of I
PP
100
80
60
40
t
d
=t I
PP
/2
20
0
0
5
10
15
t - Time ( s)
20
25
30
Peak Value I
PP
Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)
100%
Percent of Peak Pulse Current %
90%
t
r
TEST
WAVEFORM
PARAMETERS
t
r
=8 s
t
d
=20 s
10%
tr = 0.7~1ns
30ns
60ns
Time (ns)
Fig3.
Power Derating Curve
110
100
90
80
70
60
50
40
30
20
10
0
0
25
50
75
100
125
150
Ambient Temperature
–T
A
(ºC)
Rev
:
01.06.2014
% of Rated Power
2/3
www.leiditech.com
LCDA05

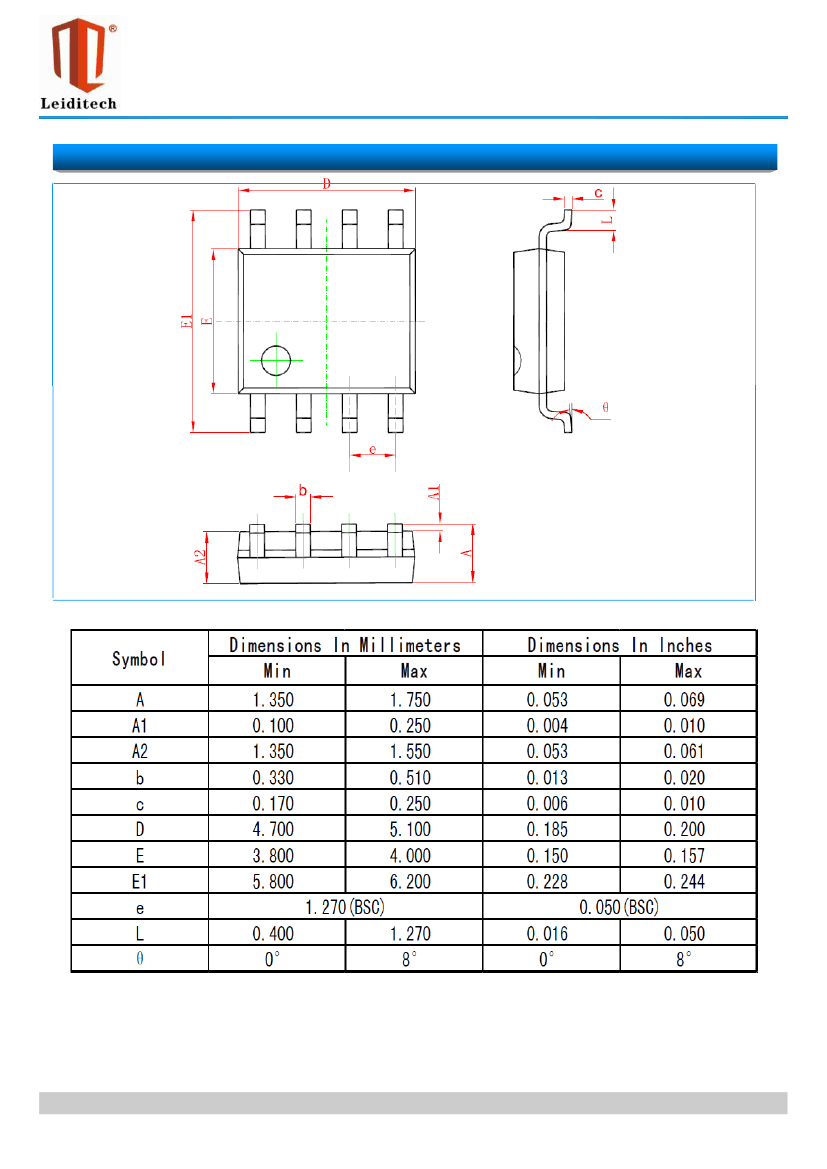

SOP-08 Mechanical Data
Shanghai Leiditech Electronic Co.,Ltd
Email: sale1@leiditech.com
Tel : +86- 021 50828806
Fax : +86- 021 50477059
Rev
:
01.06.2014
3/3
www.leiditech.com
