LPW-751202G

Description
Extremely Low Resistance Power Wirewounds
File Size167KB,2 Pages
ManufacturerIRC ( TT Electronics )
Websitehttp://www.irctt.com/
Download Datasheet View All

LPW-751202G Overview

Extremely Low Resistance Power Wirewounds

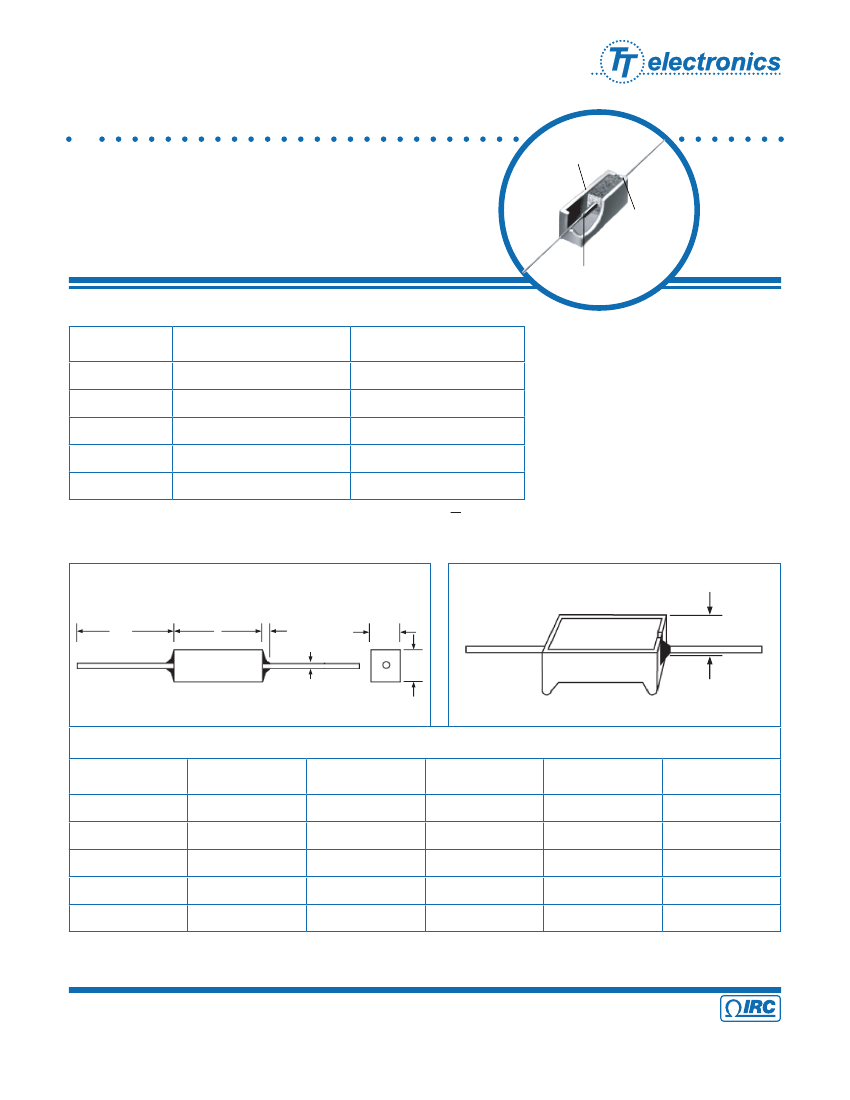

Extremely Low Resistance
Power Wirewounds
LPW Series
3 watts to 15 watts
0.005 ohm to 0.15 ohm
±1%, ±2, ±3, ±5, ±10% tolerance
TC’s from 30 ppm/°C to +500 ppm/°C (range dependant)
½½½½½½½½½½½
½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½
½½½½½½½½½
½½½½½½½½½
½½½½½½½½½½½½½
Electrical Data
IRC
Type
LPW-3
LPW-5
LPW-7
LPW-10
LPW-15
Power @ 25°C
(watts)
3
5
7
10
15
Resistance Range
(ohms)
.005 TO .15
.005 TO .15
.01 TO .15
.01 TO .15
.01 TO .15
-Inductance less than 10 nanohenries
NOTE:
Standard test points for LPW-3 and LPW-5 are 1.75 in.
(44.45mm); test points for LPW-7, LPW-10, LPW-15 are 2.500 in.
(63.50mm). Consult factory for application.
Please note: When ordering the alternate configuration please add an "A" after the part number. (LPW-3A)
Standard Configuration
0.125” Max.
L
Alternate Configuration
.75”
Min.
W
D
H
E
Dimensions (Inches (mm))
IRC
Type
LPW-3
LPW-5
LPW-7
LPW-10
LPW-15
L
±.063 (1.6)
.88 (22.4)
.88 (22.4)
1.39 (35.3)
1.88 (47.8)
1.88 (47.8)
W
±.03 (.8)
.31 (7.87)
.38 (9.65)
.38 (9.65)
.38 (9.65)
.50 (12.7)
H
±.03 (.8)
.31 (7.87)
.35 (8.89)
.35 (8.89)
.35 (8.89)
.50 (12.7)
D - Diameter
±.002 (.05)
.040
.040
.040
.040
.040
E
±.03 (.8)
.38 (9.65)
.41 (10.4)
.47 (11.9)
.47 (11.9)
.63 (16.0)
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
Wire and Film Technologies Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
LPW Series Issue October 2008 Sheet 1 of 2
