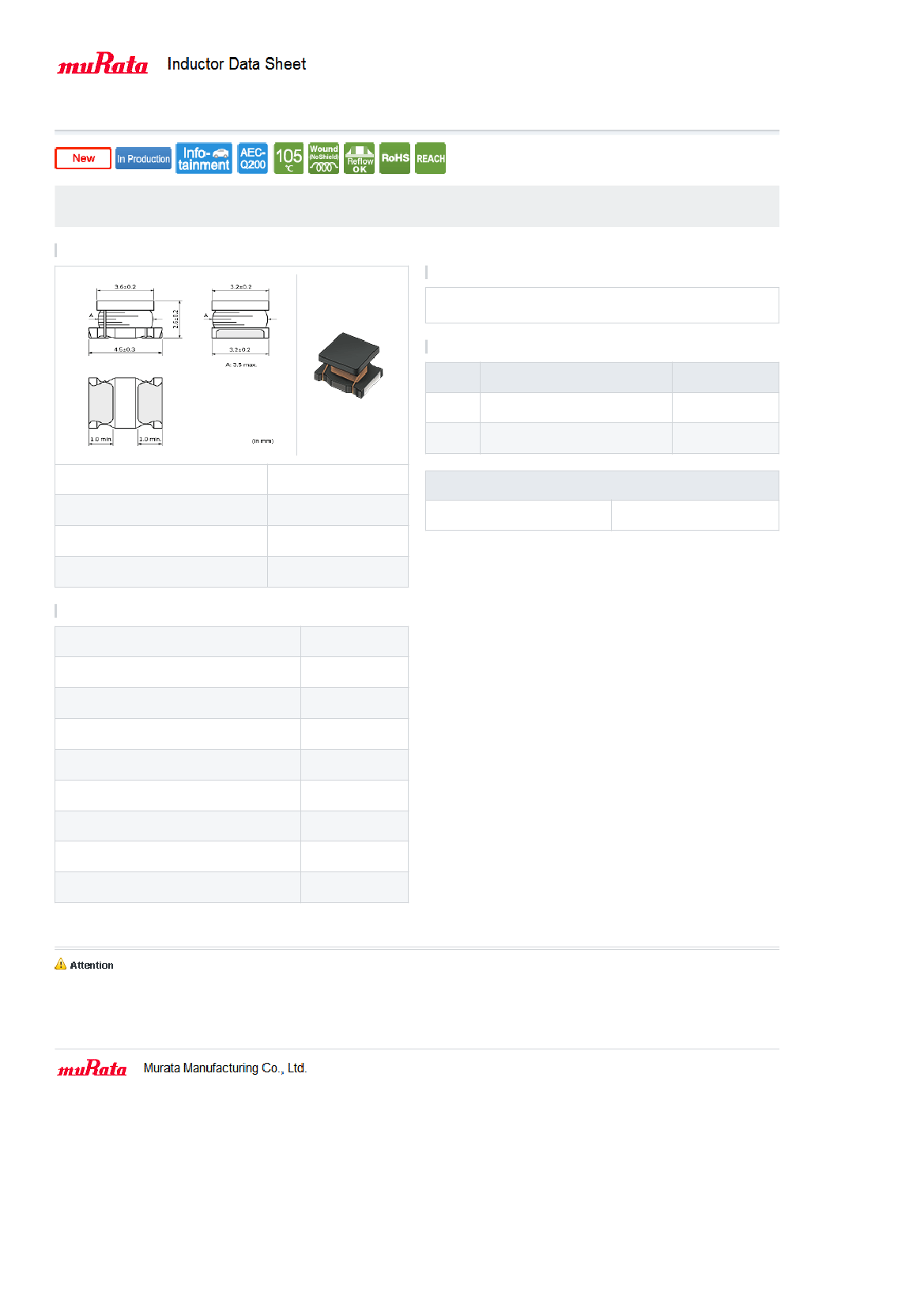

LQH43NZ150J03#
# indicates a package specification code.
< List of part numbers with package codes >
LQH43NZ150J03L , LQH43NZ150J03K
Shape
Notes
When applied Rated current to the Products, self temperature rise shall be limited
to 20℃ max and Inductance will be within ±10% of initial Inductance value.
References
Packaging
code
Specifications
φ180mm Embossed taping
φ330mm Embossed taping
Minimum quantity
500
2500
L size
W size
T size
Size code in inch (mm)
4.5 ±0.3mm
3.2 ±0.2mm
2.6 ±0.2mm
1812 (4532)
Mass (Typ.)
1 piece
0.13g
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range
Class of magnetic shield
15µH ±5%
1MHz
360mA
0.73Ω
35
1MHz
19MHz
-40∼105℃
No magnetic shield
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Current characteristics (Typ.)
Q-Frequency characteristics (Typ.)
2 of 2
This PDF data has only typical specifications because there is no space
for detailed specifications.
Therefore, please reviewour product specifications or consult the
approval sheet for product specifications before ordering.
Last updated: 2016/04/21
