394860: DescriptionFederleiste M12 A Cod; File Size63KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

394860 Overview

Federleiste M12 A Cod

Preview

Download Datasheet

View All

Verpackt in Gurtverpackung

Tape on Reel Packaging

4,5

Einbaulage beachten

Zapfen rechts

Verpackungseinheit: 100 Stück

bolt right

Packaging unit: 100 pcs

7,2

Pin 1

Abspulrichtung -

Reel off Direction

12,84

±0,25

Pad

150

330

2,5

PCB - Layout proposal

13,3

+0,2

Layout-Vorschlag

±0,05

1,2 (5x)

+0,1

7,9

5,1

3,54

1,5

-0,03

3,54

2,25

+0,2

±0,1

11,3

0,9

±0,1

max.12,6

Koplanarität aller Clip <= 0,1mm

394861

5 Pol.

Gurtverpackung mit Pad /

Tape on Reel with Pad Packaging

coplanarity of all clips <= 0,1mm

Proprietary notice pursuant to ISO 16016 to be observed.

Ident-Nr.

Tolerances

All Dimensions

in mm

Typ

Scale

Bemerkung

5:1

Information:

SPC-Maß: Prüfmaße der Kategorie /1

/1 Für SPC-Maße muss eine x/s Regelkarte geführt werden mit

Nachweis der Prozessfähigkeit in der Serie (Cpk) oder 100% - Prüfung

Prüfmaß: Prüfmaße der Kategorie /2 und /3

/2 Für Prüfmaße muss eine x/s Regelkarte geführt werden

/3 Prüfmaße werden serienbegleitend attributiv (i.O. / n.i.O.) geprüft

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

10.07.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

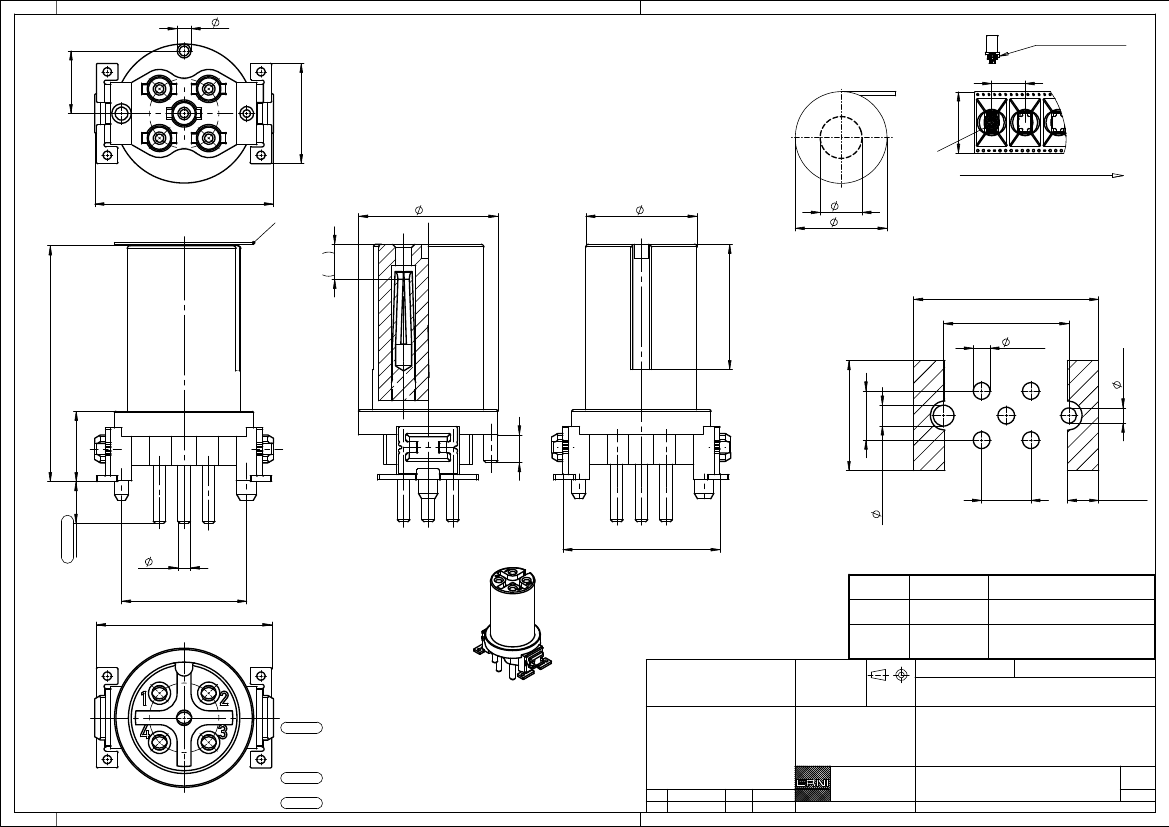

Federleiste M12 A Cod.

5 polig 17 mm Type THR V

www.ERNI.com

Class

394860

M12

1,1

-0,03
