COPAL ELECTRONICS
ROTARY CODED SWITCHES
SD-1000/2000
■

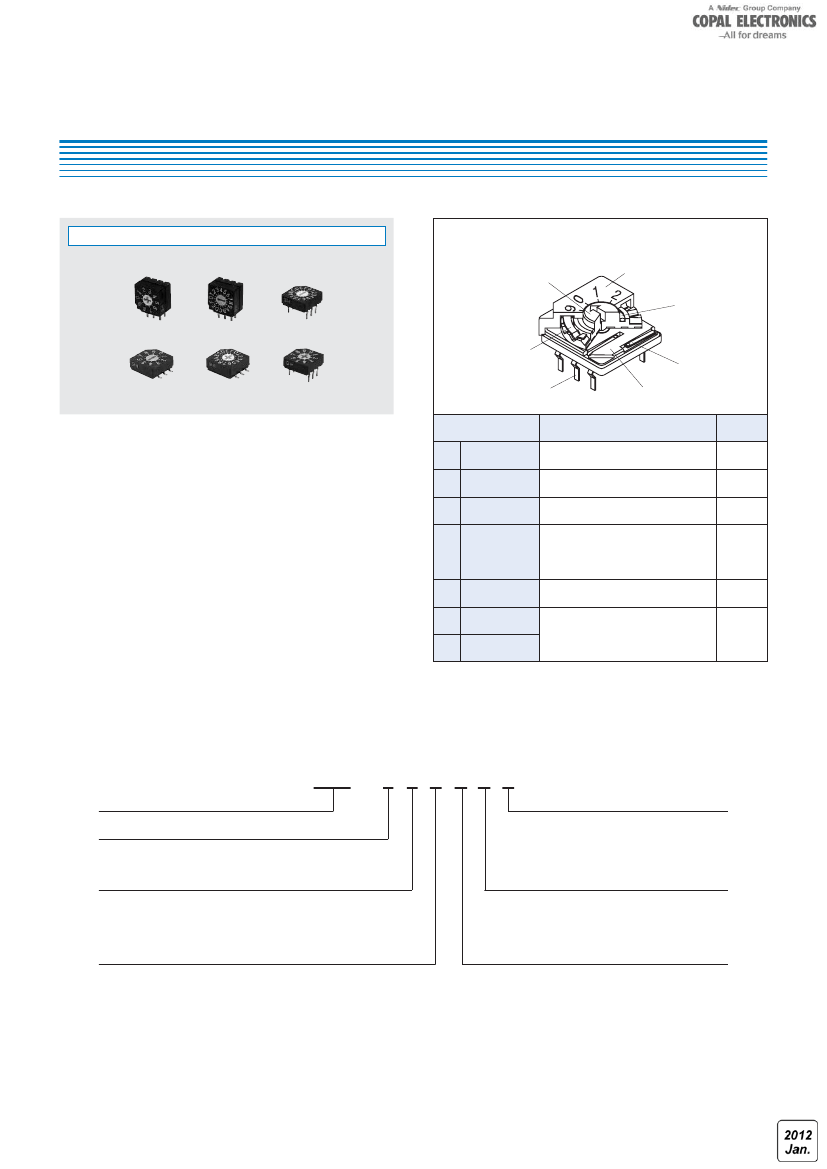

LIST OF PART NUMBERS
●
Binary coded decimal
Shape of rotor
Without knob (Minus slot)
Top setting
(Through hole pin)
With knob
Without knob (Cross slot)
Without knob (Minus slot)
Side setting
(Through hole pin)
With knob
Without knob (Cross slot)
Form of packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Taping
Plastic bag
Real cod
e
SD-2010
SD-2010W
SD-2110
SD-2110W
SD-2210
SD-2210W
SD-2011
SD-2011W
SD-2111
SD-2111W
SD-2211
SD-2211W
SD-2010B
SD-2010WB
SD-2010TB
SD-2210B
SD-2210WB
SD-2210TB
Complementary code
SD-2030
SD-2030W
SD-2130
SD-2130W
SD-2230
SD-2230W
SD-2031
SD-2031W
SD-2131
SD-2131W
SD-2231
SD-2231W
SD-2030B
SD-2030WB
SD-2030TB
SD-2230B
SD-2230WB
SD-2230TB
Pieces in package
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
500 pcs./reel
25 pcs./pack
50 pcs./tray
500 pcs./reel
Without knob (Minus slot)
Top setting
(Gull wing)
Without knob (Cross slot)
Tray packaging
Taping
●
Binary coded hexadecimal
Shape of rotor
Without knob (Minus slot)
Top setting
(Through hole pin)
With knob
Without knob (Cross slot)
Without knob (Minus slot)
Side setting
(Through hole pin)
With knob
Without knob (Cross slot)
Form of packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Taping
Plastic bag
Real code
SD-1010
SD-1010W
SD-1110
SD-1110W
SD-1210
SD-1210W
SD-1011
SD-1011W
SD-1111
SD-1111W
SD-1211
SD-1211W
SD-1010B
SD-1010WB
SD-1010TB
SD-1210B
SD-1210WB
SD-1210TB
Complementary code
SD-1030
SD-1030W
SD-1130
SD-1130W
SD-1230
SD-1230W
SD-1031
SD-1031W
SD-1131
SD-1131W
SD-1231
SD-1231W
SD-1030B
SD-1030WB
SD-1030TB
SD-1230B
SD-1230WB
SD-1230TB
Pieces in package
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
500 pcs./reel
25 pcs./pack
50 pcs./tray
500 pcs./reel
Without knob (Minus slot)
Top setting
(Gull wing)
Without knob (Cross slot)
Tray packaging
Taping
※
Verify the above part numbers when placing orders.
※
Taping and tray version can be supplied only in reel or tray units.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
ROTARY CODED SWITCHES
SD-1000/2000
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
Storage temperature range
Sealing
Non washable
BCD (Real code, complementary code)
BCH (Real code, complementary code)
−
40 ~ 85 °C
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1 μA
100 mΩ maximum
1000 MΩ (DC100 V) minimum
AC250 V, 60 s
Net weight
Without knob Top setting 0.65 g
With knob Top setting 0.76 g
Without knob Side setting 0.95 g
With knob Side setting 1.05 g
Dielectric strength
■
MECHANICAL CHARACTERISTICS
No. of positions
16 (SD-1000), 10 (SD-2000)
4 ~ 25 mN·m {41 ~ 255 gf·cm}
22.5° (SD-1000), 36° (SD-2000)
10 N {1.02 kgf} minimum
10 N {1.02 kgf}, 10 s
245
±
3 °C, 2 ~ 3 s
Reflow : Peak temperature 255 °C
(Please refer to the profile below.)
Manual soldering
：
350
±
10 °C, 3 ~ 4 s
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
Amplitude 1.5 mm or Acceleration 98 m/s ,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
Resistance load DC50V 100mA
40 °C, Relative humidity 90 ~ 95 %, 240 h
20000 steps
DC5 V, 100 mA
85 °C, 96 h
−
40 °C, 96 h
−
40 (0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles
2
Adjustment torque
Stepping angle
Terminal strength (Through hole pin only)
Stop strength (With knob only)
Solderability
Shock
Humidity
Load life
High temperature exposure
Low temperature exposure
Thermal shock
Gull wing
Soldering
heat
Through
hole pin
Reflow profile for soldering heat evaluation
〉
(°C)
250
Temperature
200
150
100
50
Peak : 250
+5
0
°C
Shear (Gull wing only)
Substrate bending (Gull wing only)
Flow : 260
±
3 °C as the temperature in
a pot of molten solder, immer-
sion from head of terminal to
backside of board 5 ~ 6 s, two
times maximum
Manual soldering
：
380
±
10 °C, 3 ~ 4 s
Over 230
°C
180
°C
150
°C
Pre Heating Zone
5 N {0.51 kgf}, 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf}, 10 s
{ } : Reference only
90
±
30 s
30
±
10 s
Heating time
Soldering Zone
Pull-off strength (Gull wing only)
Reflow : two times maximum
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
ROTARY CODED SWITCHES
SD-1000/2000
■

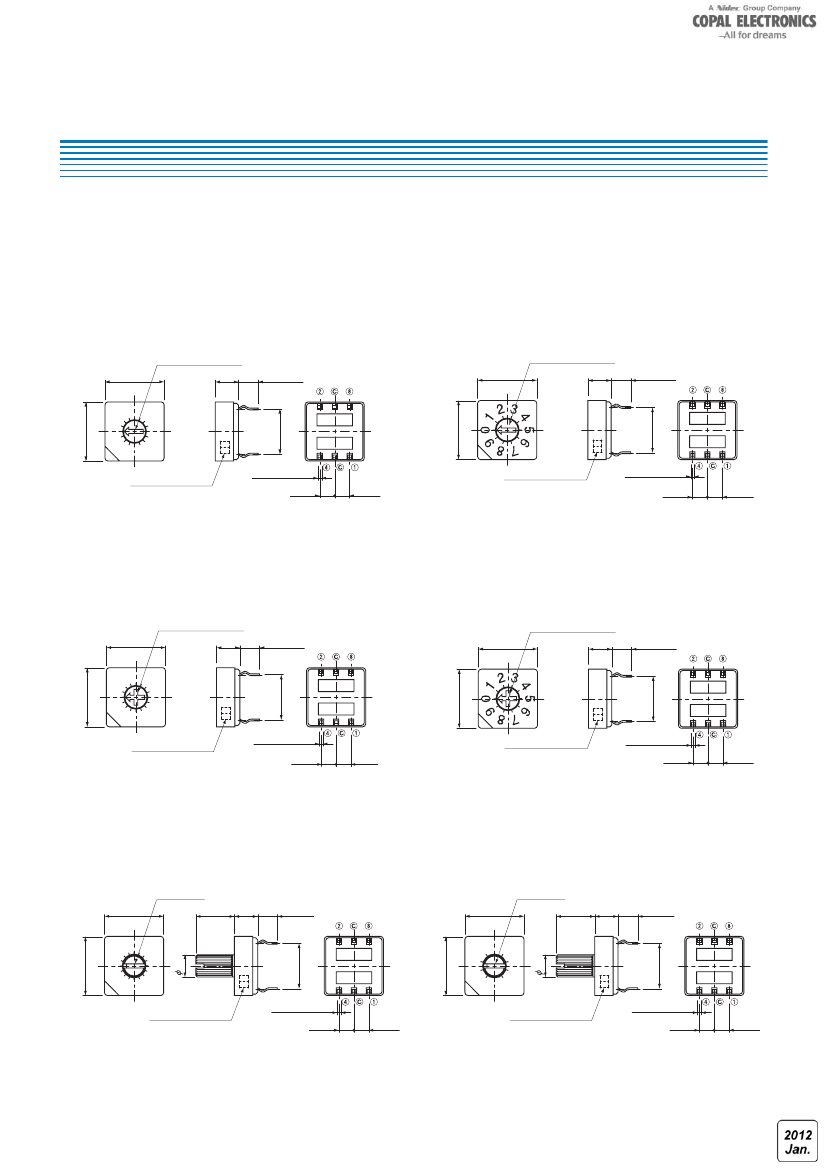

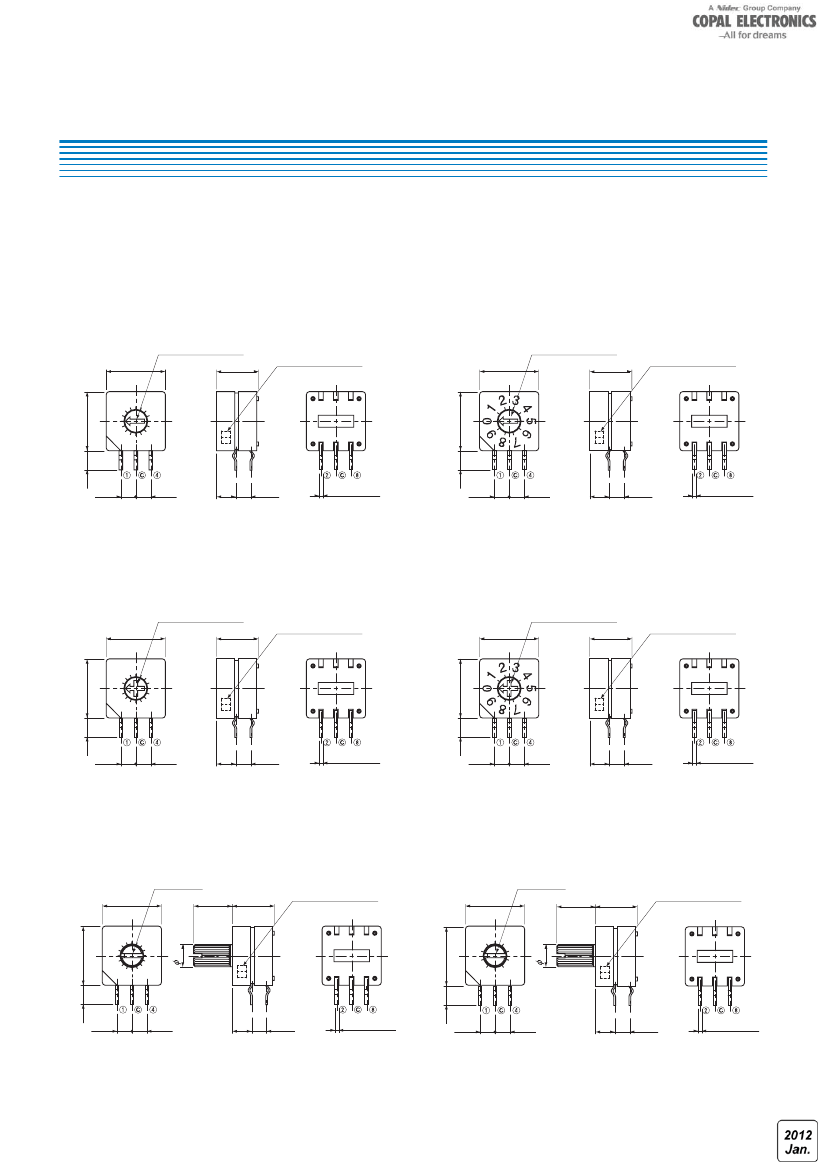

OUTLINE DIMENSIONS
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
<Through hole pin, Top setting>
●
SD-1010 (Real code)
●
SD-1030 (Complementary code)
●
SD-2010 (Real code)
●
SD-2030 (Complementary code)
0.6 W
×
3.2 L
×
1.2 D
10
3.9
3.3±0.5
10
0.6 W
×
3.2 L
×
1.2 D
3.9
3.3±0.5
0
1
E
F
2
3
4
5
8
9
6
7
A
7.62
Production date code
6 – 0.6
±
0.1
t = 0.15
2.54
Production date code
2.54
6 – 0.6
±
0.1
t = 0.15
2.54
7.62
10
10
●
SD-1210 (Real code)
●
SD-1230 (Complementary code)
0
1
E
F
2
7.62
Production date code
6 – 0.6
±
0.1
t = 0.15
2.54
Production date code
2.54
6 – 0.6
±
0.1
t = 0.15
2.54
7.62
10
10
●
SD-1110 (Real code)
●
SD-1130 (Complementary code)
0
1
E
F
2
9
0
1
3
4
5
3.9
7.62
3.9
Production date code
6 – 0.6
±
0.1
t = 0.15
2.54
Production date code
2.54
6 – 0.6
±
0.1
t = 0.15
2.54
7.62
10
10
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
78
B
C
D
B
C
D
10
10
2.54
●
SD-2210 (Real code)
●
SD-2230 (Complementary code)
0.6 W
×
3.2 L
×
1.5 D
3.9
3.3±0.5
10
0.6 W
×
3.2 L
×
1.5 D
3.9
3.3±0.5
3
4
5
8
9
6
7
A
0.7 W
×
1 D
6.5
3.9
2.54
●
SD-2110 (Real code)
●
SD-2130 (Complementary code)
0.7 W
×
1 D
3.3±0.5
10
6.5
3.9
3.3±0.5
23
8
9
6
7
A
4
5
6
B
C
D
2.54
COPAL ELECTRONICS
ROTARY CODED SWITCHES
SD-1000/2000
■
OUTLINE DIMENSIONS
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
<Through hole pin, Side setting>
●
SD-1011 (Real code)
●
SD-1031 (Complementary code)
●
SD-2011 (Real code)
●
SD-2031 (Complementary code)
0.6 W
×
3.2 L
×
1.2 D
10
6.8
Production date code
0.6 W
×
3.2 L
×
1.2 D
10
6.8
Production date code
0
1
E
F
2
3
4
5
8
9
6
7
A
10
3.3±0.5
2.54
2.54
3.3
2.54
6 – 0.6
±
0.1
t = 0.15
3.3±0.5
10
●
SD-1211 (Real code)
●
SD-1231 (Complementary code)
0
1
E
F
2
10
2.54
2.54
3.3
2.54
6 – 0.6
±
0.1
t = 0.15
3.3±0.5
3.3±0.5
10
●
SD-1111 (Real code)
●
SD-1131 (Complementary code)
0
1
E
F
2
9
0
1
3
4
5
3.9
10
10
3.3±0.5
2.54
2.54
3.3
2.54
6 – 0.6
±
0.1
t = 0.15
3.3±0.5
3.9
2.54
■
