311UW034XM2009

Description
Connector Accessory
CategoryThe connector    Connector bracket
File Size156KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

311UW034XM2009 Overview

Connector Accessory

311UW034XM2009 Parametric

Parameter NameAttribute value
Objectid1947305862
Reach Compliance Codecompliant
Connector bracket typeCONNECTOR ACCESSORY
Manufacturer's serial number311-034

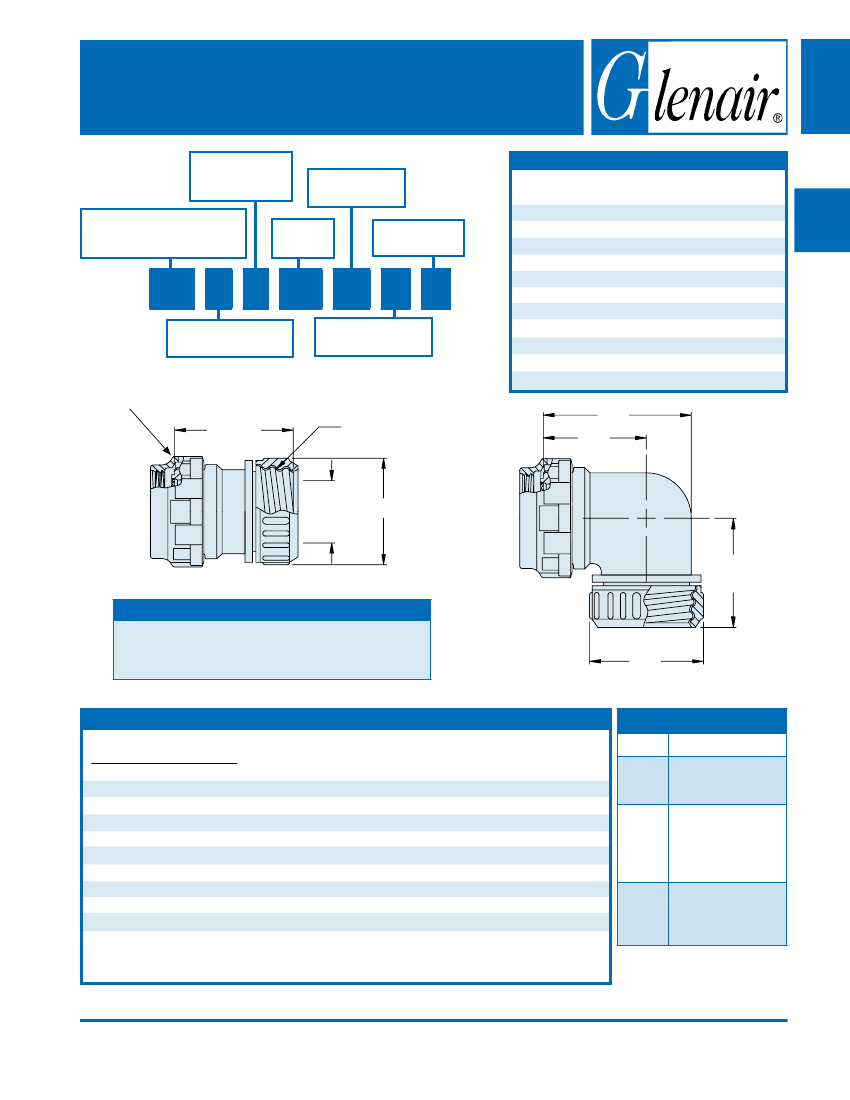

EMI/RFI Shield Termination Backshell
with Self-Locking Rotatable Coupling Nut
Angle and Profile
S
- Straight
W
- 90° Elbow
Product Series
311
- EMI/RFI Lamp Base Thread
w/ Shrink Boot Porch
Finish Symbol
(See
Table III)
Cable Entry
(See
Table II)
Basic Part
Number
311
H
S
034
XM
19
07
Connector Designator
A, F, L, H, G and U
Connector Shell Size
(See
Table II)
TABLE II: CABLE ENTRY
H
Entry Dia.
Dash No.
± .06
(1.5) ±.03 (0.8)
01
.45 (11.4)
.13 (3.3)
02
.52 (13.2)
.25 (6.4)
03
.64 (16.3)
.38 (9.7)
04
.77 (19.6)
.50 (12.7)
05
.92 (23.4)
.63 (16.0)
06
1.02 (25.9)
.75 (19.1)
07
1.14 (29.0)
.81 (20.6)
08
1.27 (32.3)
.94 (23.9)
09
1.43 (36.3) 1.06 (26.9)
10
1.52 (38.6) 1.19 (30.2)
11
1.64 (41.7) 1.38 (35.1)
F
E
Anti-Decoupling Device
1.25
(31.8)
Lamp Base Thread
Shield Termination
Entry
Diameter
H
G
NOTES
1.
2.
3.
See Table I in Intro for front-end dimensional details.
Coupling nut supplied unplated.
Metric dimensions (mm) are for reference only.
H
Shell Size For
Connector Designator*
A F/L H G U
08 08 09 – –
10 10 11 – 08
12 12 13 11 10
14 14 15 13 12
16 16 17 15 14
18 18 19 17 16
20 20 21 19 18
22 22 23 – 20
24 24 25 23 22
28 – – 25 24
TABLE II: CONNECTOR SHELL SIZE
± .06
.69
.75
.81
.88
.94
.97
1.06
1.13
1.19
1.34
E
(1.5)
(17.5)
(19.1)
(20.6)
(22.4)
(23.9)
(24.6)
(26.9)
(28.7)
(30.2)
(34.0)
± .09
.88
1.00
1.13
1.31
1.38
1.44
1.63
1.75
1.88
2.13
F
(2.3)
(22.4)
(25.4)
(28.7)
(33.3)
(35.1)
(36.6)
(41.4)
(44.5)
(47.8)
(54.1)
± .09
1.19
1.25
1.31
1.38
1.44
1.47
1.56
1.63
1.69
1.78
G
(2.3)
(30.2)
(31.8)
(33.3)
(35.1)
(36.6)
(37.3)
(39.6)
(41.4)
(42.9)
(45.2)
Max Entry
Dash No.**
02
03
04
05
06
07
08
09
10
11
Symbol
XM
TABLE III
Finish Description
2000 Hour Corrosion
Resistant Electroless
Nickel
2000 Hour Corrosion
Resistant Ni-PTFE,
Nickel-Fluorocarbon
Polymer.
1000 Hour
Grey
TM
2000 Hour Corrosion
Resistant Cadmium/
Olive Drab over
Electroless Nickel
XMT
XW
**Consult factory for additional entry sizes available.
See introduction for additional connector front-end details.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-5
Rev. 12 FEBRUARY 2013
Composite
Backshells
311-034
Composite Lamp Base Thread
A
B
C
D
E
F
G
