1882.5 MHz SAW Filter
Applications
•
•
•
General purpose wireless
Wireless infrastructure
Base Station Applications
Product Features
•
•
•
•
•
•
•
•
•
Usable bandwidth 65 MHz
Low loss
Excellent power handling
Single-ended operation
Ceramic Surface Mount Package (SMP)
Matching required for operation at 50
Small Size: 3.00 x 3.00 x 1.22 mm
Hermetically sealed
RoHS
compliant,
Pb-free

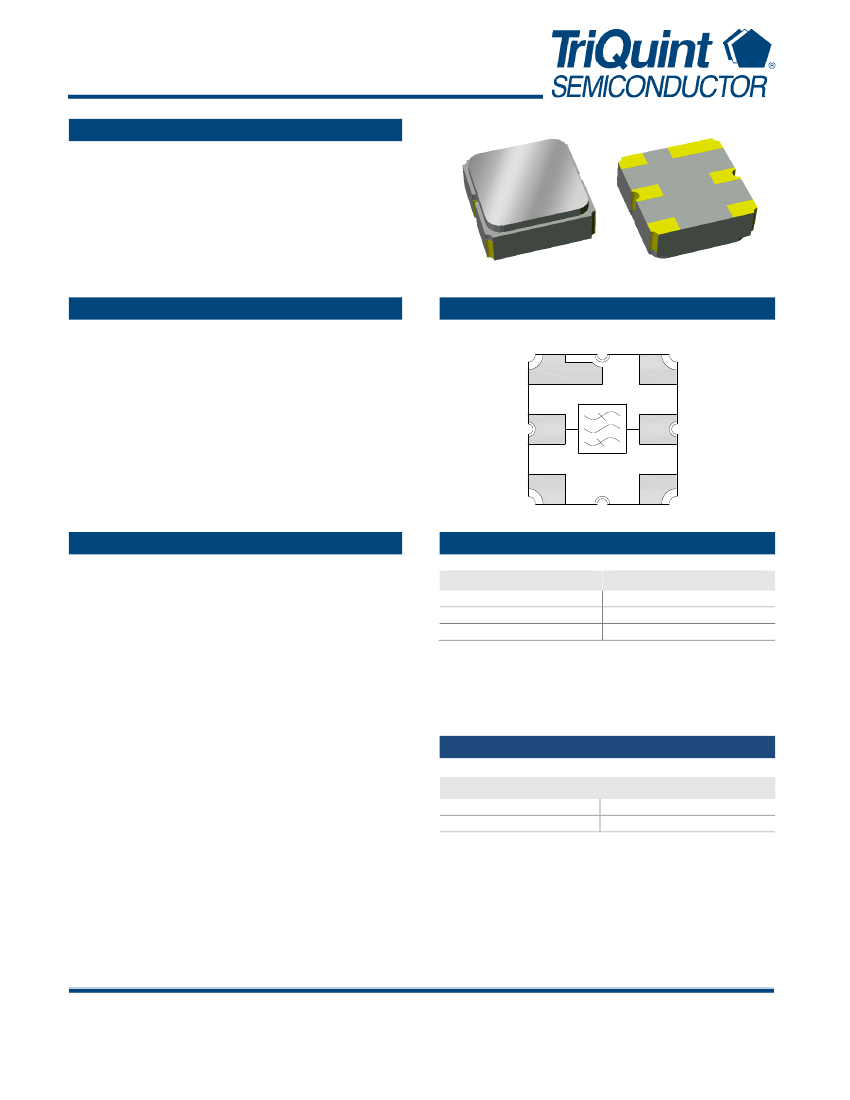

Functional Block Diagram
Top view
Gnd
Input
1
6
Gnd
Output
2
5
Gnd
3
4
Gnd
General Description
856992 is a general purpose Uplink filter for Band 25. This
filter was specifically designed in a 3x3mm hermetic
package for base station applications and is part of our wide
portfolio of RF filters in the same package.
Low insertion loss, coupled with high attenuation and
excellent power handling, makes this filter a natural choice
for our customers’ Uplink RF filtering needs.
Pin Configuration
Pin # SE
2
5
1,3,4,6
Description
Input
Output
Case Ground
Ordering Information
Part No.
856992
856992-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev C 09/20/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856992
1882.5 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-30 to +100 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
(5)
Amplitude Variation
(5)
(over 5 MHz window)
Temperature Drift
(6)
Absolute Group Delay
Group Delay Variation
Phase Ripple
IIP3
(Tones 5 MHz separated, power > 5 dBm per
tone)
Conditions
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
1850 – 1915 MHz
50 – 110 MHz
300 – 400 MHz
920 – 965 MHz
965 – 1300 MHz
1300 – 1635 MHz
1635 – 1700 MHz
1700 – 1790 MHz
2030 – 2090 MHz
2560 – 2635 MHz
4074 – 4162 MHz
4791 – 4879 MHz
1850 – 1915 MHz
Min
-
-
-
-
-
-
-
-
44
-
35
35
35
25
25
25
10
20
43
20
20
-
-
-
Typical
(4)
1882.5
1.9
0.3
0.14
0.1
10
6
14
45
0.5
77
55
43
38
34
38
25
32
45
44
36
1.4/1.7
50
50
Max
-
2.5
1.2
0.8
0.2
15
15
30
-
1.0
-
-
-
-
-
-
-
-
-
-
-
2:0
-
-
Units
MHz
dB
dB p-p
dB p-p
dB
ns
ns p-p
◦
p-p
dBm
%
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
-
Ω
Ω
EVM (Any 3.84 MHz Channel )
Relative Attenuation
(7)
Input/Output VSWR
Source Impedance (single-ended)
(8)
Load Impedance (single-ended)
(8)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Amplitude Variation is defined as the difference between the lowest loss and the highest loss within defined frequency points
6. Temperature Drift specification is defined on Page 3 and is guaranteed by design and won’t be measured in production
7. Relative to insertion loss at Center Frequency
8. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operable Temperature
Storage Temperature
Input Power
(9)
Rating
-40 to +100
o
C
-40 to +100
o
C
+22 dBm
9. Power handling is targeted for an applied CW modulated RF signal at 55 ºC for 125 hours
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev C 09/20/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856992
1882.5 MHz SAW Filter
Temperature Drift Specification
Temperature Drift Equations:
Temp Drift
Temp Drift
=│
max(T
max(T
−T
) − min(T
2
) − min(T
2
− T
)
│
)
│
Temperature Drift Terms Defined:
T
T
T
=│
−T
− T
- Transmission power in dB measured at +25 degrees C.
- Transmission power in dB measured at +85 degrees C.
- Transmission power in dB measured at -40 degrees C.
vs
Temp Drift
Temperature Drift - Greater of
Temp Drift

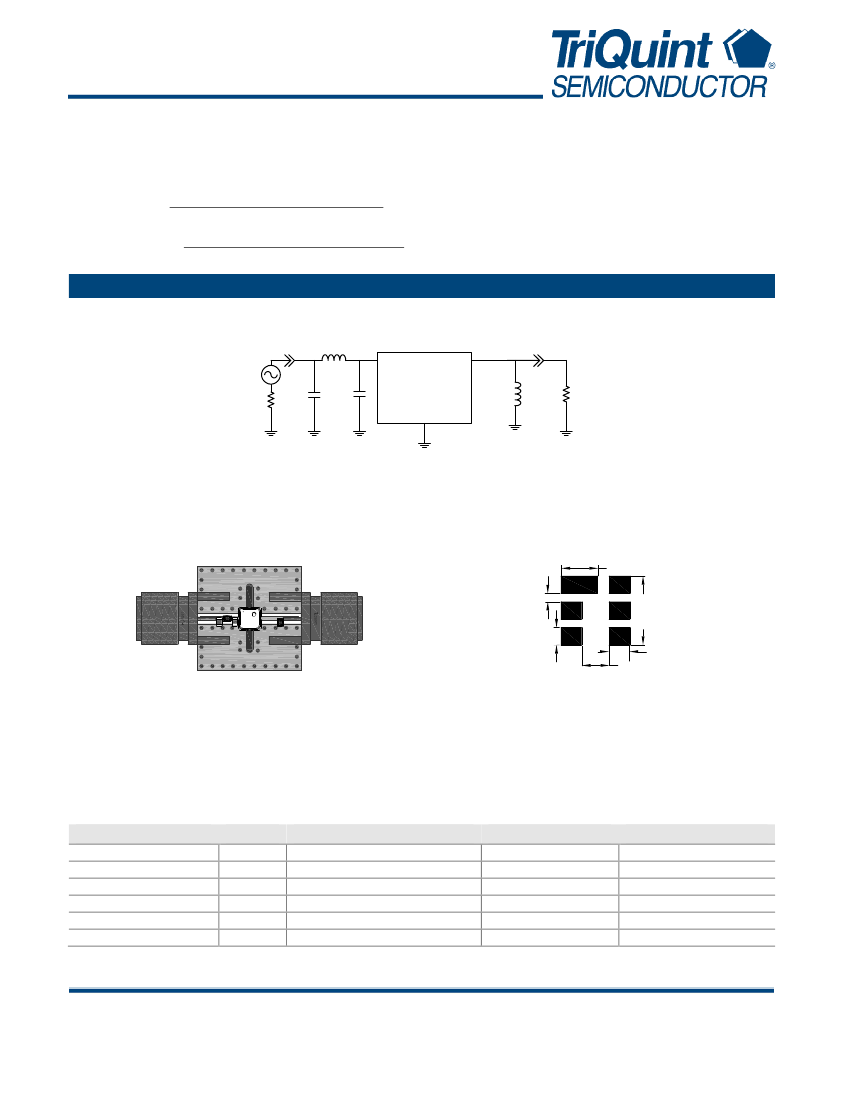

Reference Design – 50Ω SE Input, 50Ω SE Output
Ω
Ω
Schematic
3.9nH
2
5
6.2nH
1,3,4,6
50Ω
Ω
50
Ω
Single-ended
Input
50Ω
Ω
2.4pF
1.3pF
50
Ω
Single-ended
Output
Notes:
1.
Impedance matching is required
2.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.70
L1
JJJYM
HH
3.20 SQ
.38
C1
C2
L2
.96
960728
.81
1.27
Notes:
Top, middle & bottom layers: 1/2 oz copper
Substrates: FR4 dielectric .063” / Taconic TLY-5A .0075”
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
C1
C2
SMA
PCB
Value
3.9nH
6.2nH
2.4pF
1.3pF
N/A
N/A
Description
Coil wire-wound, 0402, 5%
Coil wire-wound, 0402, 5%
Chip Capacitor, 0402
Chip Capacitor, 0402
SMA connector
3-layer
Manufacturer
MuRata
MuRata
MuRata
MuRata
Radiall USA Inc.
multiple
Part Number
LQW15AN3N9D00
LQW15AN6N2D00
GRM1555C1H2R4JZ01
GRM1555C1H1R3JZ01
9602-1111-018
960728
Data Sheet: Rev C 09/20/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856992
1882.5 MHz SAW Filter

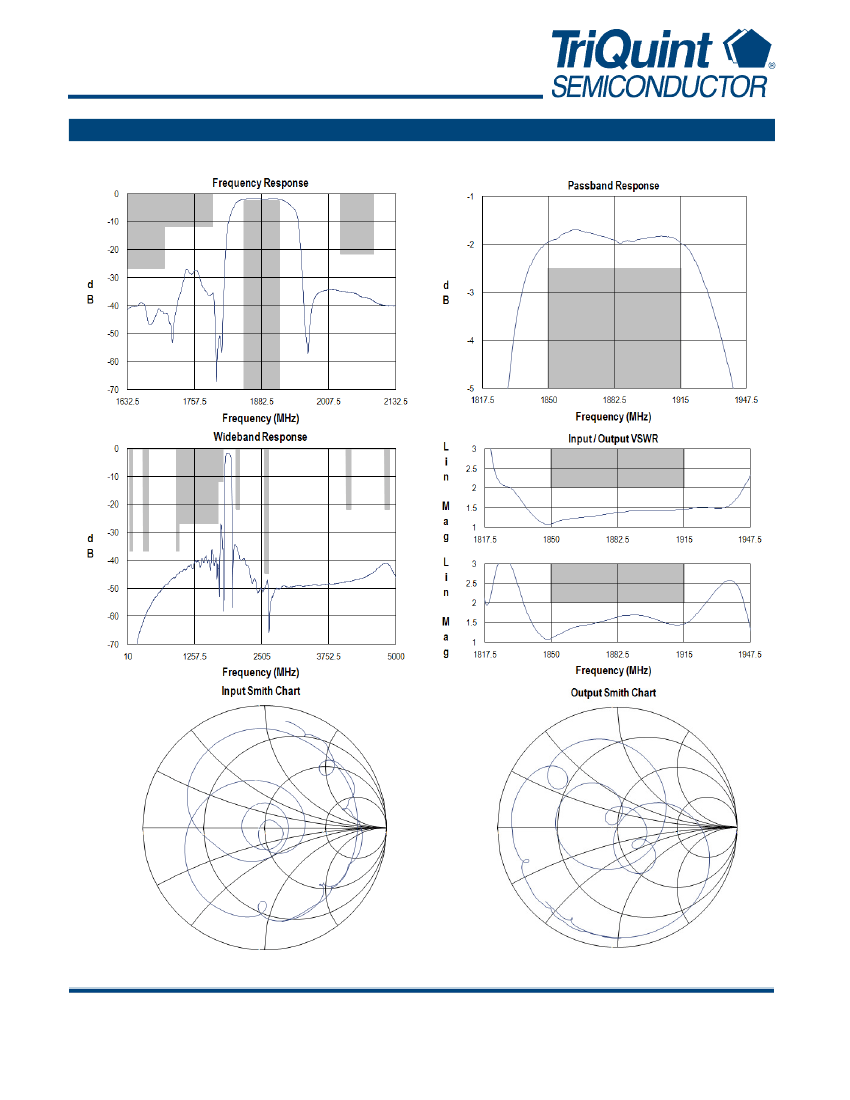

Typical Performance
(at room temperature)
Data Sheet: Rev C 09/20/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856992
1882.5 MHz SAW Filter

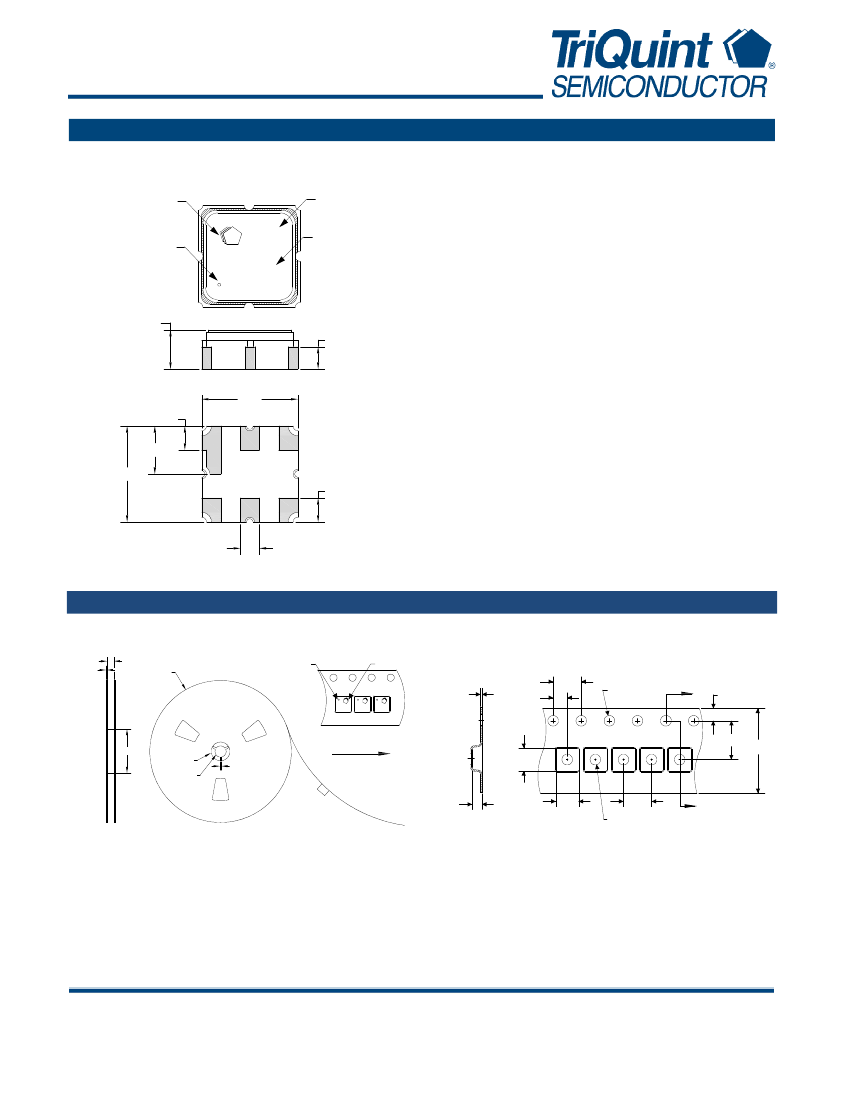

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-12A
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm, over a 2-6µm
Ni
plating
ID dot
HH
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
3.00
0.75
1.50
3.00
0.75
0.60
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
2.7
12.8
Ø330
ID dot
TriQuint
logo
Section A-A
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
12.0
1.4 3.25
4.0
Ø1.5
A
Data Sheet: Rev C 09/20/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
