802-048ZL12-37PSD-03N datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-048ZL12-37PSD-03N

802-048ZL12-37PSD-03N: DescriptionCircular Connector Adapter; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-048ZL12-37PSD-03N Overview

Circular Connector Adapter

802-048ZL12-37PSD-03N Parametric

Parameter Name	Attribute value
Objectid	7049817871
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AQUAMOUSE
Body/casing type	RECEPTACLE-RECEPTACLE
Connector type	CIRCULAR CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Options	HERMETIC
Shell surface	NICKEL
Shell material	STAINLESS STEEL
Total number of contacts	37

Preview

Download Datasheet

View All

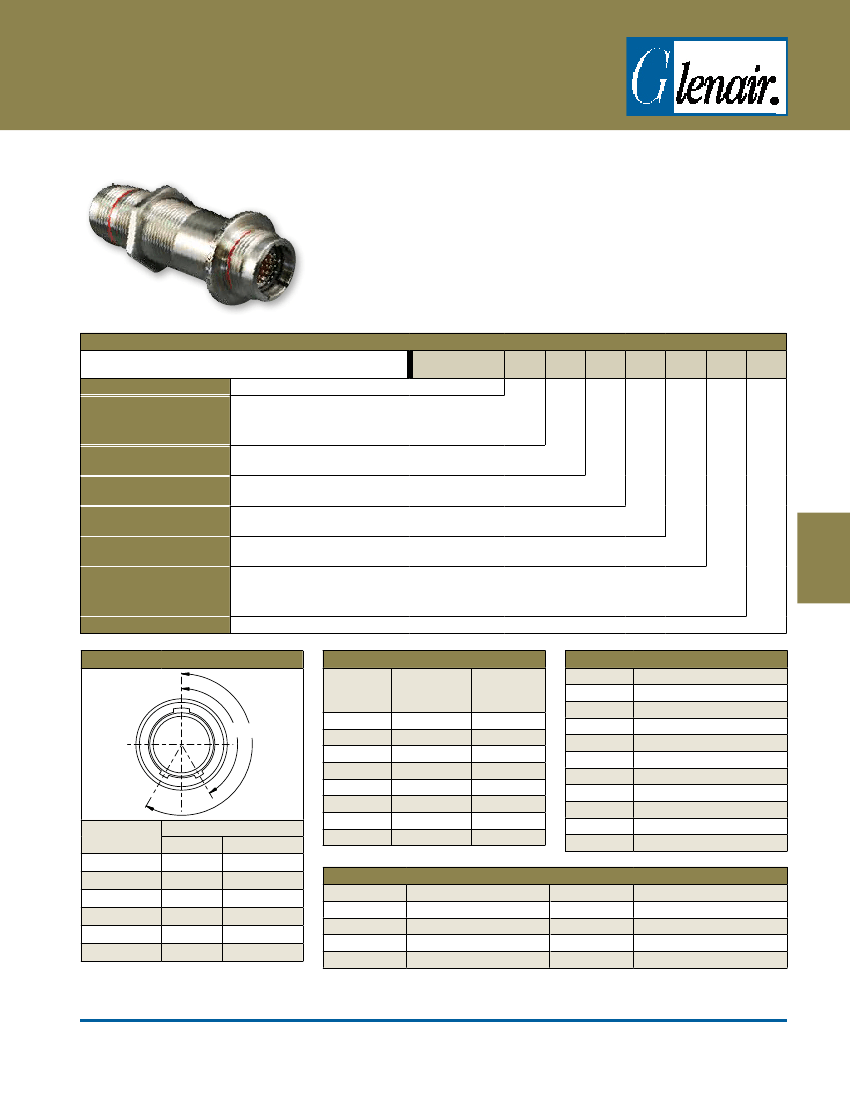

802-048 Ordering Information

Series 802 Hermetic Jam Nut Mount Bulkhead Feed–Thru Receptacles

feature

gold plated iron alloy contacts and compression glass dielectric material. The

316 series stainless steel connector shell provides excellent corrosion protection.

Available in PS, SP, PP and SS for PP or SS application, power applied to a given

contact on one end will result in power to contact directly opposite, regardless of

contact identification letter. DWV of contact size #23 is 500 VAC with sizes #20, #16

and #12 rated at 1800 VAC. Hermeticity is rated at: 1 x 10

-7

ccHe/sec @ 1 atmosphere

differential. 802-048 is designed to mate with Glenair 802 Series plugs

How To Order

Sample Part Number

Series

Shell Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Jam Nut Side

Contact Type

Opposite Side

Keyway Position

(See Table I)

Panel Thickness

(See Table II)

O-ring Material

802-048

= Bulkhead Feed–Thru Hermetic Receptacle

= Stainless Steel / Passivated RoHS Compliant

= Stainless Steel / Nickel Plated

INC

= Inconel 600

See Table III

= Pin

= Socket

= Pin

= Socket

= Normal

= Pos. B

= Pos. C

= Pos. D

-01

= .125/.500

-04

= 1.500/2.00

-07

= 3.000/3.500

See Table IV

-02

= .500/1.00

-05

= 2.000/2.500

-08

= 3.500/4.000

= Pos. E

12-37

= Pos. F

-03

= 1.00/1.500

-06

= 2.500/3.000

Table I: Key Positions

Table II: Panel Thickness

Panel

Thickness

Code

-01

-02

-03

-04

-05

H Panel

Thickness

.125/.500

.500/1.000

1.000/1.5000

1.500/2.000

2.000/2.500

2.500/3.000

3.000/3.500

3.500/4.000

J Maximum

Length

1.750

2.250

2.750

3.250

3.750

4.250

4.750

5.250

Table III: Insert Arrangements

Shell Size

Insert Arrangement(s)

-3

-1, -4, -6, -7, -23

-1, -10, -25

-1, -2, -13, -28, -200

-4, -19, -200, -201, -210

-2, -5, -26, -200, -201, -202

-2, -3, -7, -37, -200, -201, -220

-2, -5, -12, -55, -235

-3, -7, -14, -85, -241

-5, -12, -22, -130, -269

A° B°

Key Position

Normal

Key Rotation

A°

150°

75°

95°

140°

75°

95°

B°

210°

230°

275°

210°

-06

-07

-08

Table IV: O-ring Material

Designator

Material

Fluorosilicone, Conductive

EPDM

Viton

Nitrile

Designator

Material

Silicone

Butyle Rubber

Kalrez

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-21

E-Mail: sales@glenair.com

Series 802

Series 802 AquaMouse™ Hermetic
