09195245924 datasheet, PDF - EEWORLD Datasheet

09195245924: DescriptionBoard Euro Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Beige Insulator; CategoryThe connector The connector; File Size563KB，3 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric View All

09195245924 Overview

Board Euro Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Beige Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1839494428
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Connectors, Male connector, Reflow soldering termination (THR), Rated current: ?1 A, Contacts: 24, Straight
Samacsys Manufacturer	HARTING
body width	0.335 inch
subject depth	0.681 inch
body length	1.972 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

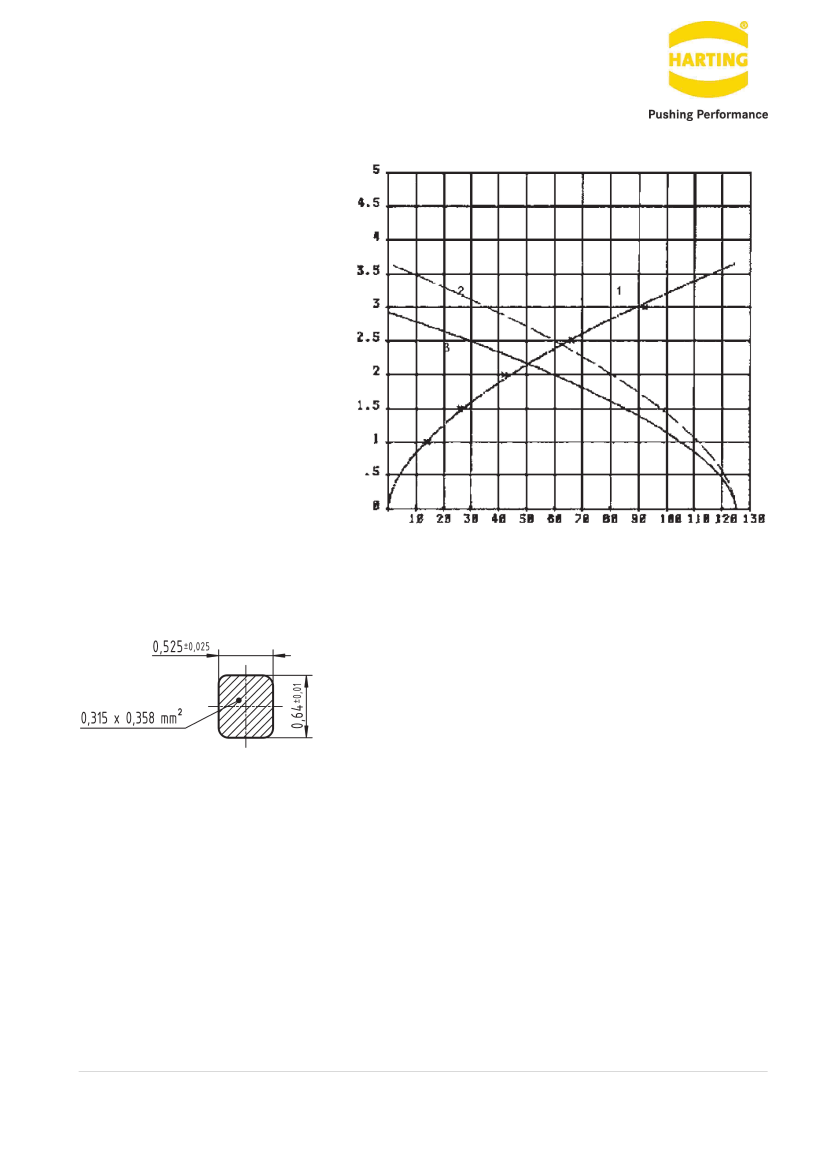

Product data sheet

09 19 524 5924

SEK-19 SV MA STD STR29 24P PLS4

Part number

Specification

HARTING eCatalogue

09 19 524 5924

SEK-19 SV MA STD STR29 24P PLS4

https://b2b.harting.com/09195245924

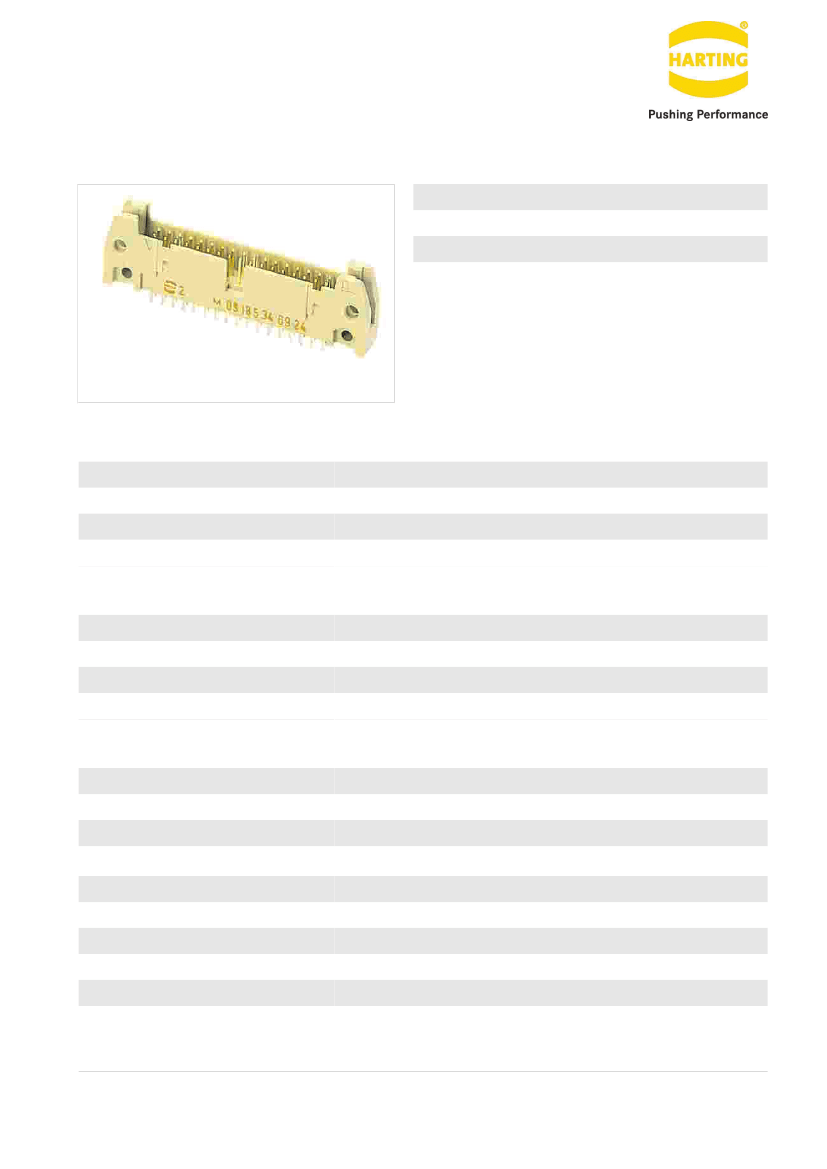

Image is for illustration purposes only. Please refer to product description.
