BUZ100L: Description60 A, 50 V, 0.018 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220; CategoryDiscrete semiconductor The transistor; File Size114KB，9 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BUZ100L Overview

60 A, 50 V, 0.018 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220

BUZ100L Parametric

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AVALANCHE RATED, LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	250 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (ID)	60 A
Maximum drain-source on-resistance	0.018 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	525 pF
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	250 W
Maximum pulsed drain current (IDM)	240 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Maximum off time (toff)	605 ns
Maximum opening time (tons)	280 ns
Base Number Matches	1

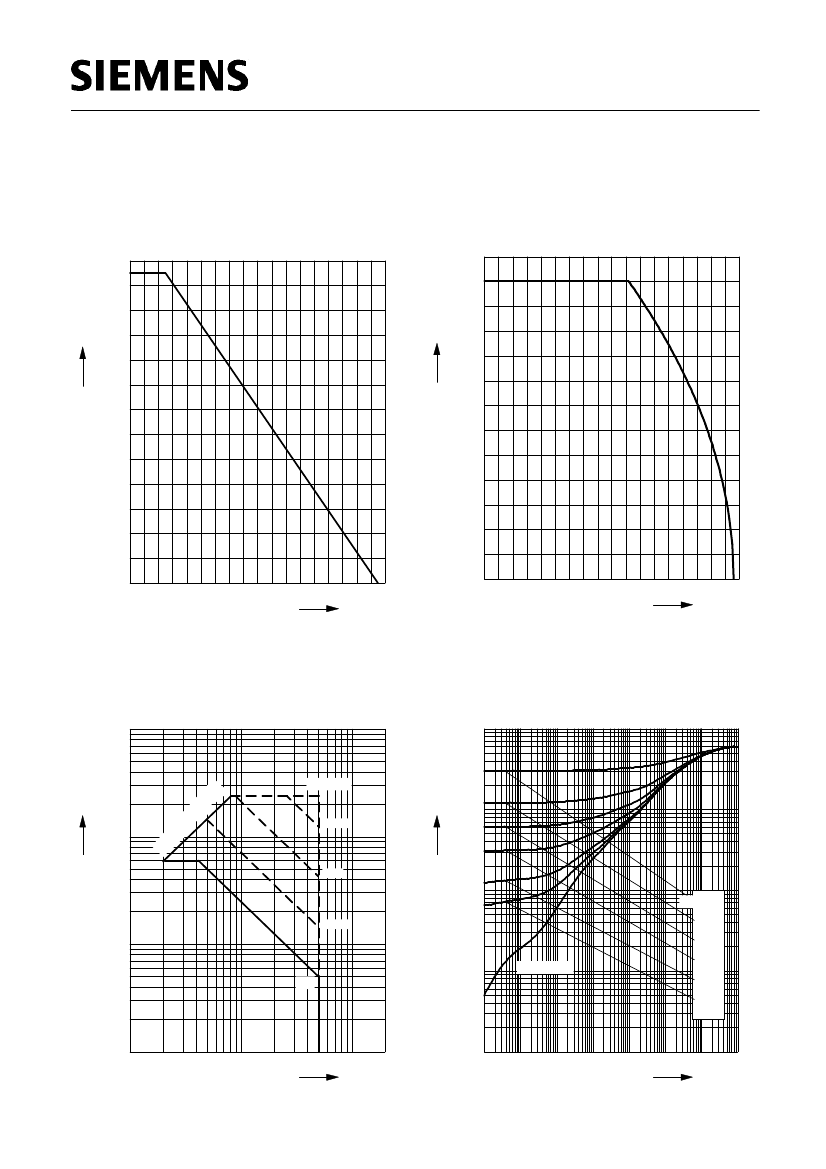

Preview

Download Datasheet

View All

BUZ 100L

SIPMOS

Power Transistor

• N channel

• Enhancement mode

• Avalanche-rated

• Logic Level

• dv/dt rated

• Ultra low on-resistance

• 175 °C operating temperature

• also in TO-220 SMD available

Pin 1

Pin 2

Pin 3

Type

BUZ 100L

50 V

60 A

DS(on)

0.018

Ω

Package

TO-220 AB

Ordering Code

C67078-S1354-A2

Maximum Ratings

Parameter

Continuous drain current

Symbol

Values

Unit

Dpuls

240

= 101 °C

Pulsed drain current

= 25 °C

Avalanche energy, single pulse

250

dv/dt

= 60 A,

= 25 V,

= 25

Ω

= 70 µH,

= 25 °C

Reverse diode dv/dt

kV/µs

= 60 A,

= 40 V, di

/dt = 200 A/µs

jmax

= 175 °C

Gate source voltage

Gate-source peak voltage,aperiodic

Power dissipation

tot

= 25 °C

250

Semiconductor Group

07/96

BUZ100L Related Products

	BUZ100L	C67078-S1354-A2
Description	60 A, 50 V, 0.018 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220	60 A, 50 V, 0.018 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220
Number of components	1	1
Number of terminals	3	3
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON
