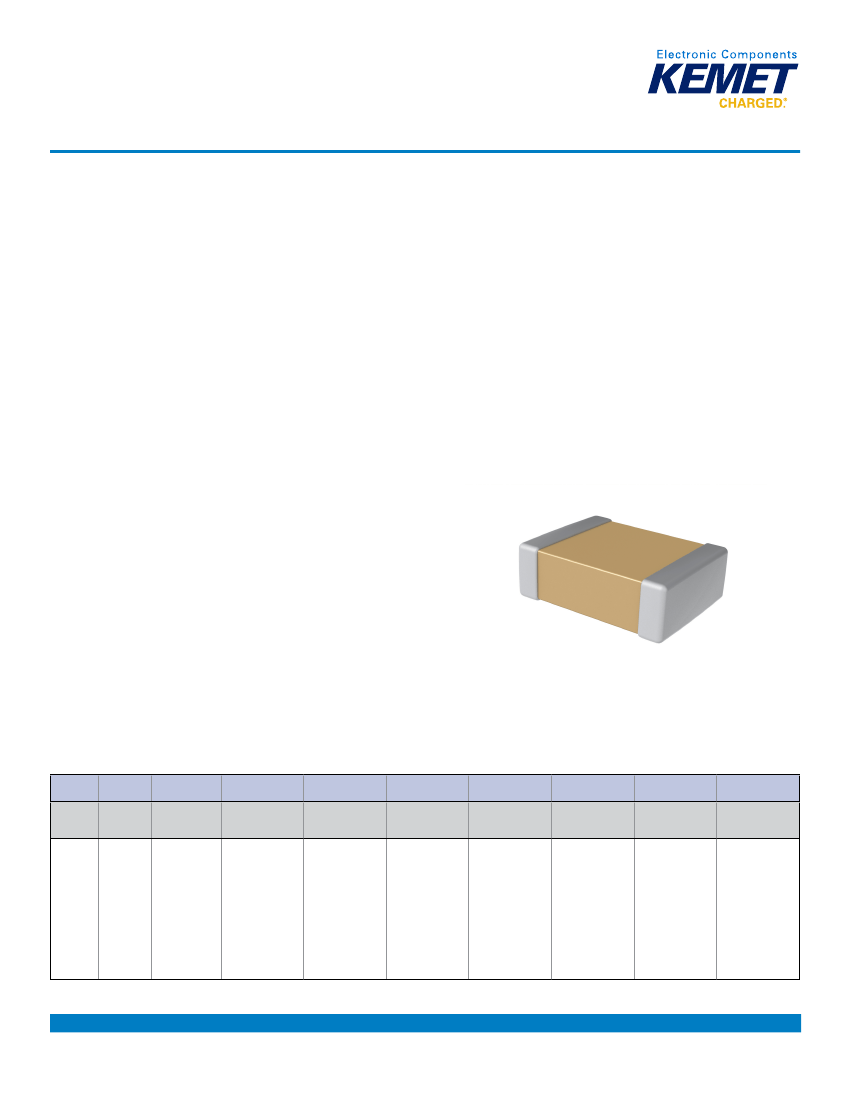

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP) X7R Dielectric,
6.3 – 250 VDC (Automotive Grade)
Overview
KEMET’s Automotive Grade Flexible Termination (FT-CAP)
multilayer ceramic capacitor in X7R dielectric incorporates
a unique, flexible termination system that is integrated with
KEMET’s standard termination materials. A conductive silver
epoxy is utilized between the base metal and nickel barrier layers
of KEMET’s standard termination system in order to establish
pliability while maintaining terminal strength, solderability and
electrical performance. This technology was developed in order to
address the primary failure mode of MLCCs– flex cracks, which
are typically the result of excessive tensile and shear stresses
produced during board flexure and thermal cycling. Flexible
termination technology inhibits the transfer of board stress to the
rigid ceramic body, therefore mitigating flex cracks which can
result in low IR or short circuit failures.
Although this technology does not eliminate the potential
for mechanical damage that may propagate during extreme
environmental and handling conditions, it does provide superior
flex performance over standard termination systems. FT-CAP
complements KEMET’s Open Mode, Floating Electrode (FE-
CAP), Floating Electrode with Flexible Termination (FF-CAP)
and KEMET Power Solutions (KPS) product lines by providing a
complete portfolio of flex mitigation solutions.
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Combined with the stability of an X7R dielectric and designed to
accommodate all capacitance requirements, these flex-robust
devices are RoHS-compliant, offer up to 5mm of flex-bend capability
and exhibit a predictable change in capacitance with respect to
time and voltage. Capacitance change with reference to ambient
temperature is limited to ±15% from -55°C to +125°C.
Whether under-hood or in-cabin, these capacitors are designed
to provide reliable performance in mission and safety critical
automotive circuits. Stricter testing protocol and inspection criteria
have been established for automotive grade products in recognition
of potentially harsh environmental conditions. KEMET automotive
grade series capacitors meet the demanding Automotive Electronics
Council's AEC-Q200 qualification requirements.
Ordering Information
C
Ceramic
1206
X
106
Capacitance
Code (pF)
2 significant
digits +
number of
zeros
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
4
Rated Voltage
(VDC)
9 = 6.3
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
2 = 200
A = 250
R
Dielectric
R = X7R
A
Failure Rate/
Design
A = N/A
C
Termination
Finish
1
C = 100%
Matte Sn
AUTO
Packaging/Grade
(C-Spec)
2
See
"Packaging
C-Spec
Ordering
Options Table"
below
Case Size
Specification/
(L" x W")
Series
0603
0805
1206
1210
1808
1812
1825
2220
2225
X = Flexible
Termination
1
Additional termination finish options may be available. Contact KEMET for details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1078_X7R_FT-CAP_AUTO_SMD • 9/30/2015
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
1
7" Reel
13" Reel / Punched Paper / Unmarked
13" Reel / Embossed Plastic / Unmarked
7" Reel / Unmarked / 2 mm pitch
2
13" Reel / Unmarked / 2 mm pitch
2
1
Packaging/Grade
Ordering Code (C-Spec)
3
AUTO
AUTO7411
AUTO7210
AUTO3190
AUTO3191
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel Packaging
Quantities" and "Tape & Reel Packaging Information".
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case size
devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information".
3
All Automotive packaging C-Specs listed exclude the option to laser mark components. Please contact KEMET if you require a laser marked option. For more
information see "Capacitor Marking".
3
For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".
Benefits
•
•
•
•
•
•
AEC-Q200 automotive qualified
-55°C to +125°C operating temperature range
Superior flex performance (up to 5 mm)
High capacitance flex mitigation
Lead (Pb)-Free, RoHS and REACH compliant
EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and
2225 case sizes
• DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V,
200 V, and 250 V
• Capacitance offerings ranging from 180 pF to 22 μF
• Available capacitance tolerances of ±5%, ±10%, and ±20%
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated termination finish allowing for
excellent solderability
Applications
Typical applications include circuits with a direct battery or power source connection, critical and safety relevant circuits without
(integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Examples
include raw power input side filtering (power plane/bus), high current applications (automobile battery line) and circuits that cannot be
fused to open. Markets include consumer, medical, industrial (power supply), automotive, aerospace and telecom.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1078_X7R_FT-CAP_AUTO_SMD • 9/30/2015
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Automotive C-Spec Information
KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding
test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. These
products are supported by a Product Change Notification (PCN) and Production Part Approval Process warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, "AUTO". This
C-Spec was developed in order to better serve small and medium sized companies that prefer an automotive grade component without
the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a KEMET engineering specialist.
This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are not granted the same “privileges” as
other automotive C-Specs. Customer PCN approval and PPAP request levels are limited (see details below).
Product Change Notification (PCN)
The KEMET Product Change Notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit , function, and /or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification due to:
Process/Product change
Yes (with approval and
sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days prior to
implementation
180 days Minimum
90 days Minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design record and specification requirements are properly understood and
fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part
KEMET
Automotive
C-Spec
KEMET
assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
●
○
2
●
3
●
○
4
●
5
●
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
● Part Number specific PPAP available
○ Product family PPAP only
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1078_X7R_FT-CAP_AUTO_SMD • 9/30/2015
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA
Size
Code
0603
0805
1206
1210
1808
1812
1825
2220
2225
Metric
Size
Code
1608
2012
3216
3225
4520
4532
4564
5650
5664
L
Length
W
Width
T
Thickness
B
Bandwidth
0.45 (.018) ± 0.15 (.006)
0.50 (0.02) ± 0.25 (.010)
0.60 (.024) ± 0.25 (.010)
0.60 (.024) ± 0.25 (.010)
S
Separation
Minimum
0.58 (.023)
0.75 (.030)
Mounting
Technique
Solder Wave
or
Solder Reflow
1.60 (.063) ± 0.17 (.007) 0.80 (.032) ± 0.15 (.006)
2.00 (.079) ± 0.30 (.012) 1.25 (.049) ± 0.30 (.012)
3.30 (.130) ± 0.40 (.016) 1.60 (.063) ± 0.35 (.013)
3.30 (.130) ± 0.40 (.016) 2.60 (.102) ± 0.30 (.012)
4.70 (.185) ± 0.50 (.020) 2.00 (.079) ± 0.20 (.008)
4.50 (.178) ± 0.40 (.016) 3.20 (.126) ± 0.30 (.012)
4.60 (.181) ± 0.40 (.016) 6.40 (.252) ± 0.40 (.016)
5.90 (.232) ± 0.75 (.030) 5.00 (.197) ± 0.40 (.016)
5.90 (.232) ± 0.75 (.030) 6.40 (.248) ± 0.40 (.016)
See Table 2 for
Thickness
0.70 (.028) ± 0.35 (.014)
0.70 (.028) ± 0.35 (.014)
0.70 (.028) ± 0.35 (.014)
0.70 (.028) ± 0.35 (.014)
0.70 (.028) ± 0.35 (.014)
N/A
Solder Reflow
Only
Qualification/Certification
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC-Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC-Q200, please visit their website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-Free, RoHS, and REACH compliant without exemptions.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1078_X7R_FT-CAP_AUTO_SMD • 9/30/2015
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±15%
3.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
5% (6.3 and 10 V), 3.5% (16 and 25 V) and 2.5% (50 to 250 V)
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X7R
16/25
< 16
All
Capacitance
Value
Dissipation Factor
(Maximum %)
3.0
5.0
7.5
±20%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1078_X7R_FT-CAP_AUTO_SMD • 9/30/2015
