SMD Transient Voltage Suppressor
TV30C5V0-HF Thru. TV30C441-HF
Working Peak Reverse Voltage: 5.0 to 440 Volts
Power Dissipation: 3000 Watts
RoHS Device
Halogen Free
Features
- Glass passivated chip.
- 3000W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%
- Low leakage.
- Uni and Bidirectional unit.
- Excellent clamping capability.
- Very fast response time.
- UL recognized file # E349157
-
Range:
TV30C5V0J(B) thru. TV30C171J(B)
R
SMC/DO-214AB
0.280(7.02)
0.260(6.52)
0.126(3.16)
0.114(2.86)
0.245(6.15)
0.220(5.52)
0.320(8.02)
0.305(7.64)
0.012(0.30)
0.006(0.15)
0.103(2.59)
0.079(1.98)
0.060(1.51)
0.030(0.75)
0.008(0.20)
0.000(0.00)
Mechanical Data
- Case: DO-214AB/SMC molded plastic.
- Epoxy: UL 94V-0 rate flame retardant
- Terminals: Solderable per MIL-STD-750, method 2026.
- Polarity: Color band denoted cathode
end except bipolar.
- Weight:
0.230 gram
(approx.)
Dimensions in inches and (millimeter)
Circuit Diagram
Bi-directional
Uni-directional
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Peak power dissipation with a 10/1000μs
waveform (Note 1)
Peak pulse current with a 10/1000μs
waveform (Note 1)
Power dissipation on infinite heatsink
at T
L
=75°C
Peak forward surge current, 8.3ms single
half sine-wave unidirectional only (Note 2)
Maximum instantaneous forward voltage
at 100A for unidirectional only (Note 3)
Operation junction and storage
temperature range
Symbol
P
PP
I
PP
P
D
I
FSM
V
F
T
J
, T
STG
Value
3000
See Next Table
6.0
300
3.5/5.0
-55 to +150
Units
W
A
W
A
V
°C
Notes: 1. Non-repetitive current pulse, per Fig.5 and derated above T
A
=25°C, per Fig.1
2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
3. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV09
REV:B
Page 1
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

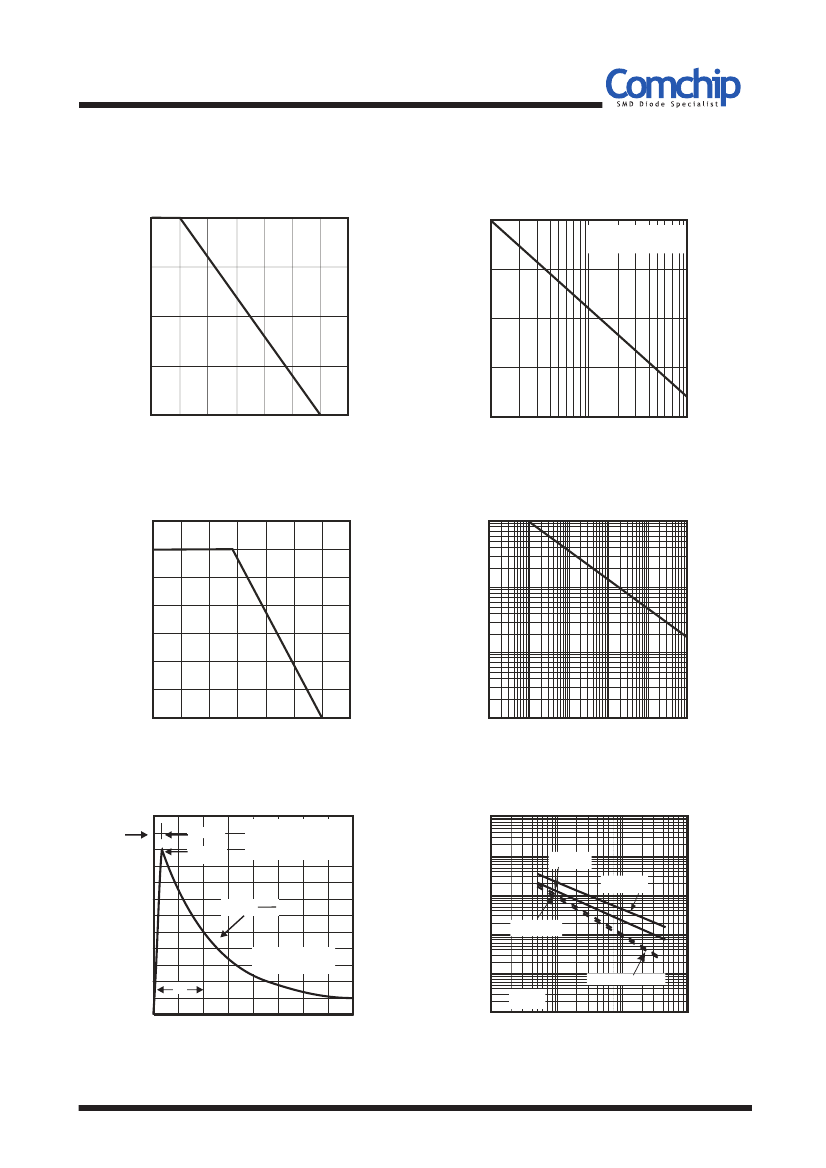

RATING AND CHARACTERISTIC CURVES (TV30C5V0-HF Thru. TV30C441-HF)
Fig.1 - Pulse Derating Curve
Peak Pulse Derating in Percentage of
Peak Power or Current, (%)
100
Fig.2 - Max. Non-Repetitive Surge Current
300
75
Peak Forward Surge Current, (A)
8.3mS single half
sine-wave (JEDEC method)
T
J
=T
J
, max.
250
50
200
25
150
0
0
25
50
75
100
125
150
175
0
1
10
100
Ambient Temperature, (°C )
Number of Cycles at 60Hz
Fig.3 - Steady State Power Derating Curve
7
Fig.4 - Peak Pulse Power Rating Curve
100
Steady Power Dissipation, (W)
6
Peak Power, (kW)
5
4
3
2
1
0
0
25
50
75
100
125
150
175
10
1.0
0.1
0.1
1
10
100
1000
10000
Lead Temperature, (°C )
Pulse Width, (μs)
Fig.5 - Pulse Waveforem
100000
TR=10
μ
s
T
J
= 25°C
Pluse width(td) is defined as the
point where the peak current
decays to 50% of Ipp
Fig.6 - Typical Junction Capacitance
Peak Pulse Current, (%)
Peak value
(Ipp)
Junction Capacitance, (pF)
100
10000
Bi-directional
@zero bias
Uni-directional
@zero bias
1000
Uni-directional
@V
RWM
Half Value= 2
Ipp
50
10 / 1000
μsec.
waveform
as defined by R.E.A.
100
10
T
J
=25°C
f=1.0MHz
Bi-directional @ V
RWM
td
0
0
1.0
2.0
3.0
4.0
1
1
10
100
1000
Time, (ms)
Reverse Breakdown Voltage, (V)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV09
REV:B
Page 2
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (
TV30C5V0-HF Thru. TV30C441-HF
)
Breakdown voltage
Part No.
Min.
(V)
TV30C5V0J(B)-HF
TV30C6V0J(B)-HF
TV30C6V5J(B)-HF
TV30C7V0J(B)-HF
TV30C7V5J(B)-HF
TV30C8V0J(B)-HF
TV30C8V5J(B)-HF
TV30C9V0J(B)-HF
TV30C100J(B)-HF
TV30C110J(B)-HF
TV30C120J(B)-HF
TV30C130J(B)-HF
TV30C140J(B)-HF
TV30C150J(B)-HF
TV30C160J(B)-HF
TV30C170J(B)-HF
TV30C180J(B)-HF
TV30C190J(B)-HF
TV30C200J(B)-HF
TV30C220J(B)-HF
TV30C240J(B)-HF
TV30C260J(B)-HF
TV30C280J(B)-HF
TV30C300J(B)-HF
TV30C330J(B)-HF
TV30C360J(B)-HF
TV30C400J(B)-HF
TV30C430J(B)-HF
TV30C450J(B)-HF
TV30C480J(B)-HF
TV30C510J(B)-HF
TV30C540J(B)-HF
TV30C580J(B)-HF
TV30C600J(B)-HF
TV30C640J(B)-HF
TV30C700J(B)-HF
TV30C750J(B)-HF
TV30C780J(B)-HF
TV30C800J(B)-HF
TV30C850J(B)-HF
TV30C900J(B)-HF
TV30C101J(B)-HF
TV30C111J(B)-HF
TV30C121J(B)-HF
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
88.80
94.40
100.00
111.00
122.00
133.00
V
BR
@ I
T
Max.
(V)
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
97.60
104.00
111.00
123.00
135.00
147.00
I
T
(mA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Maximum
Reverse
Leakage
@V
RWM
I
R
(uA)
5000
5000
2000
1000
250
150
50
20
15
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Working
Peak
Reverse
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
80.0
85.0
90.0
100.0
110.0
120.0
Maximum
Reverse
Surge
Current
I
PP
(A)
326.09
291.26
267.86
250.00
232.56
220.59
208.33
194.81
176.47
164.84
150.75
139.53
129.31
122.95
115.38
108.70
102.74
97.47
92.59
84.51
77.12
71.26
66.08
61.98
56.29
51.64
46.51
43.23
41.27
38.76
36.41
34.44
32.05
30.99
29.13
26.55
24.79
23.81
23.15
21.90
20.55
18.52
16.95
15.54
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.8
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
129.6
137.0
146.0
162.0
177.0
193.0
Device
Marking
Code
UNI
RDE
RDG
RDK
PDM
PDP
PDR
PDT
PDV
PDX
PDZ
PEE
PEG
PEK
PEM
PEP
PER
PET
PEB
PEV
PEX
PEZ
PFE
PFG
PFK
PFM
PFP
PFR
PFT
PFV
PFX
PFZ
RGE
PGG
PGK
PGM
PGP
PGR
PGT
PGB
PGV
PGX
PGZ
PHE
PHG
BI
DDE
DDG
DDK
DDM
DDP
DDR
DDT
DDV
DDX
DDZ
DEE
DEG
DEK
DEM
DEP
DER
DET
DEB
DEV
DEX
DEZ
DFE
DFG
DFK
DFM
DFP
DFR
DFT
DFV
DFX
DFZ
DGE
DGG
DGK
DGM
DGP
DGR
DGT
DGB
DGV
DGX
DGZ
DHE
DHG
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV09
REV:B
Page 3
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (
TV30C5V0-HF Thru. TV30C441-HF
)
Breakdown voltage
Part No.
Min.
(V)
TV30C131J(B)-HF
TV30C141J(B)-HF
TV30C151J(B)-HF
TV30C161J(B)-HF
TV30C171J(B)-HF
TV30C181J(B)-HF
TV30C191J(B)-HF
TV30C201J(B)-HF
TV30C221J(B)-HF
TV30C251J(B)-HF
TV30C301J(B)-HF
TV30C351J(B)-HF
TV30C401J(B)-HF
TV30C441J(B)-HF
144.0
155.0
167.0
178.0
189.0
200.0
211.0
224.0
246.0
279.0
335.0
391.0
447.0
492.0
V
BR
@ I
T
Max.
(V)
159.0
171.0
185.0
197.0
209.0
220.0
232.0
247.0
272.0
309.0
371.0
432.0
494.0
543.0
I
T
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Maximum
Reverse
Leakage
@V
RWM
I
R
(uA)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Working
Peak
Reverse
Voltage
V
RWM
(V)
130.0
140.0
150.0
160.0
170.0
180.0
190.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
Maximum
Reverse
Surge
Current
I
PP
(A)
14.35
13.23
12.35
11.58
10.91
10.29
9.75
9.26
8.43
7.41
6.17
5.29
4.63
4.21
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
209.0
226.8
243.0
259.0
275.0
291.6
307.8
324.0
356.0
405.0
486.0
567.0
648.0
713.0
Device
Marking
Code
UNI
PHK
PHB
PHM
PHP
PHR
PHT
PHV
PHW
PHX
PHZ
PJE
PJG
PJK
PJM
BI
DHK
DHB
DHM
DHP
DHR
DHT
DHV
DHW
DHX
DHZ
DJE
DJG
DJK
DJM
Note:
1) Suffix J denotes 5% tolerance devices.
2) Suffix B after part number to specify Bi-directional devices.
3) For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double.
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV09
REV:B
Page 4
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

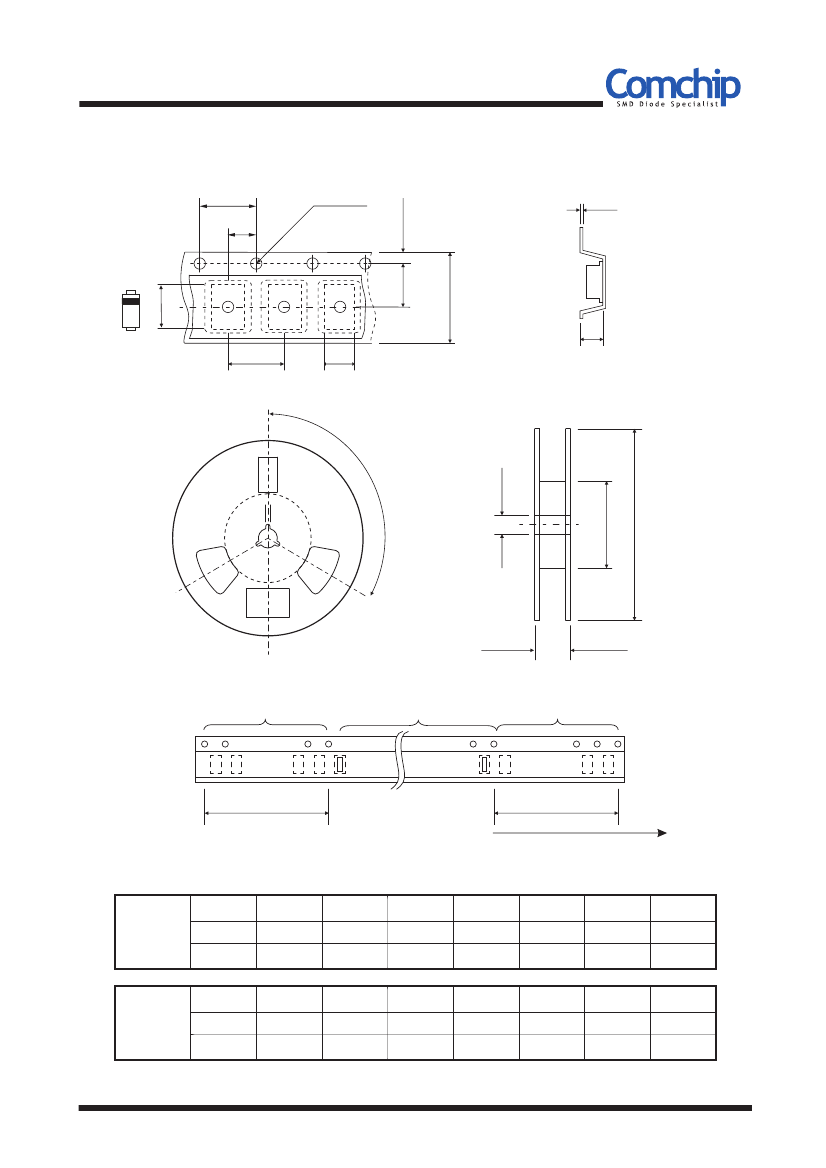

Reel Taping Specification
P
0
P
1
d
Index hole
E
T
F
B
P
A
W
C
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
10 pitches (min)
Device
.......
.......
.......
.......
Leader
.......
.......
10 pitches (min)
End
Start
Direction of Feed
SYMBOL
A
6.05
±
0.10
0.238
±
0.004
B
8.31
±
0.10
0.327
±
0.004
C
3.29 (max)
0.130 (max)
d
1.55
±
0.10
0.061
±
0.004
D
330.00
13.000
D
1
50.00 (min)
1.969 (min)
D
2
13.00
±
0.20
0.512
±
0.008
DO-214AB
(SMC)
(mm)
(inch)
SYMBOL
E
1.75
±
0.10
0.069
±
0.004
F
7.50
±
0.10
0.295
±
0.004
P
8.00
±
0.10
0.315
±
0.004
P
0
4.00
±
0.10
0.157
±
0.004
P
1
2.00
±
0.10
0.079
±
0.004
W
16.00
±
0.30
0.630
±
0.012
W
1
22.40 (max)
0.882 (max)
DO-214AB
(SMC)
(mm)
(inch)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV09
REV:B
Page 5
Comchip Technology CO., LTD.
京公网安备 11010802033920号
EEWORLD
