044 RSH
Vishay BCcomponents
Aluminum Capacitors
Radial Standard, High Voltage
FEATURES
•
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
•
Radial leads, cylindrical aluminum case,
insulated with a blue vinyl sleeve
•
Pressure relief
•
Charge and discharge proof
Fig.1 Component outline
•
Reduced dimensions
•
High rated voltage, up to 450 V
044 RSH
•
Compliant to RoHS directive 2002/95/EC
low
voltage
APPLICATIONS
•
General purpose, audio-video, lighting, general industrial
•
Smoothing, filtering, buffering of high voltages
miniaturized
037 RSM
038 RSU
Obsolete - please refer to:
www.vishay.com/doc?28320
MARKING
The
capacitors
are
marked
(where
possible)
with
the following information:
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C, 1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
6.3 x 11 to 16 x 31
1.0 µF to 100 µF
± 20 %
160 to 450 V
≤
400 V: - 40 °C to + 85 °C;
450 V: - 25 °C to + 85 °C
2000 hours
3000 hours
80 000 hours
500 hours
IEC 60384-4/EN130300
≤
400 V: 40/085/56;
450 V: 25/085/56
•
Rated capacitance (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
•
Rated voltage (in V)
•
Date code, in accordance with IEC 60062
•
Code indicating factory of origin
•
Name of manufacturer
•
Negative terminal identification
•
Series number (044)
SELECTION CHART FOR C
R,
U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
1.0
2.2
4.7
10
22
47
100
U
R
(V)
160
-
-
-
10 x 16
10 x 20
-
16 x 25
200
-
-
10 x 12
10 x 16
10 x 20
12.5 x 25
16 x 31
250
6.3 x 11
8 x 12
10 x 12
10 x 20
12.5 x 25
16 x 25
-
350
-
10 x 12
10 x 16
12.5 x 20
12.5 x 25
16 x 31
-
400
8 x 12
10 x 12
10 x 20
12.5 x 20
16 x 25
-
-
450
10 x 12
10 x 16
12.5 x 20
12.5 x 25
16 x 31
-
-
Document Number: 28311
Revision: 14-May-09
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
1
Obsolete - Please refer to 152 RMH (28320)
044 RSH
Vishay BCcomponents
Aluminum Capacitors
Radial Standard, High Voltage

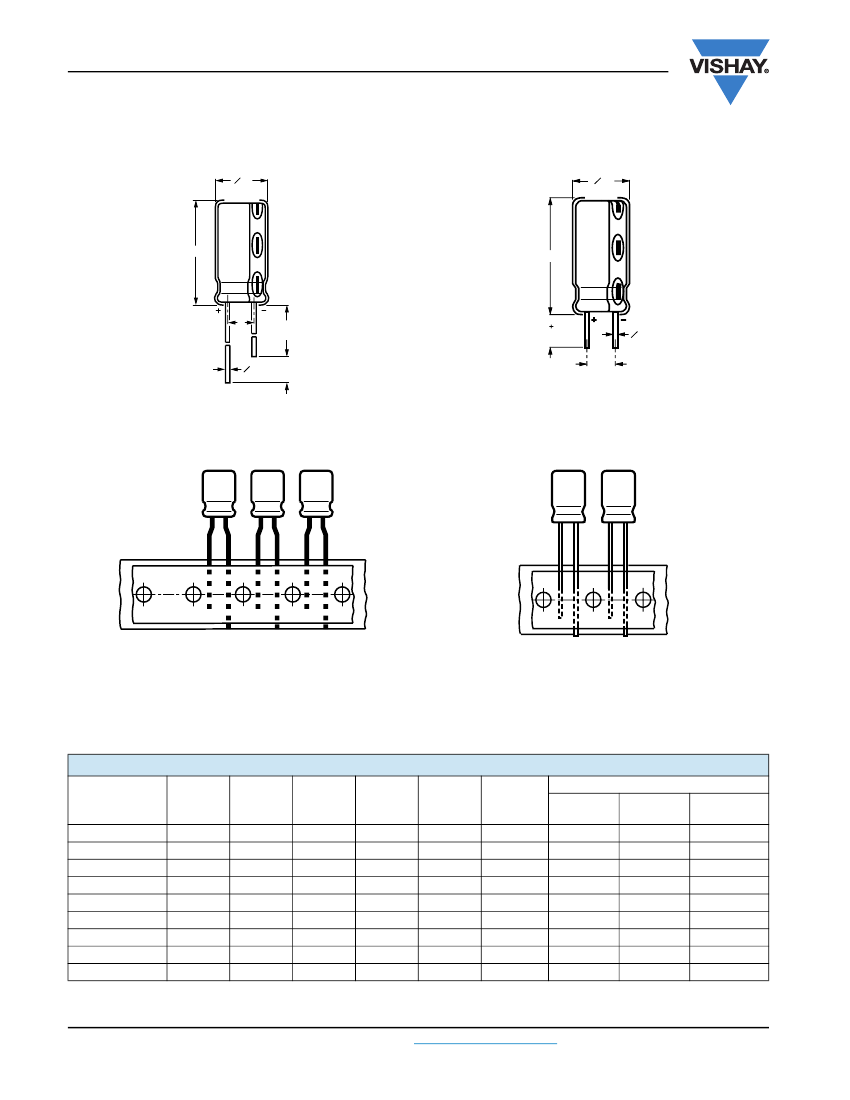

DIMENSIONS
