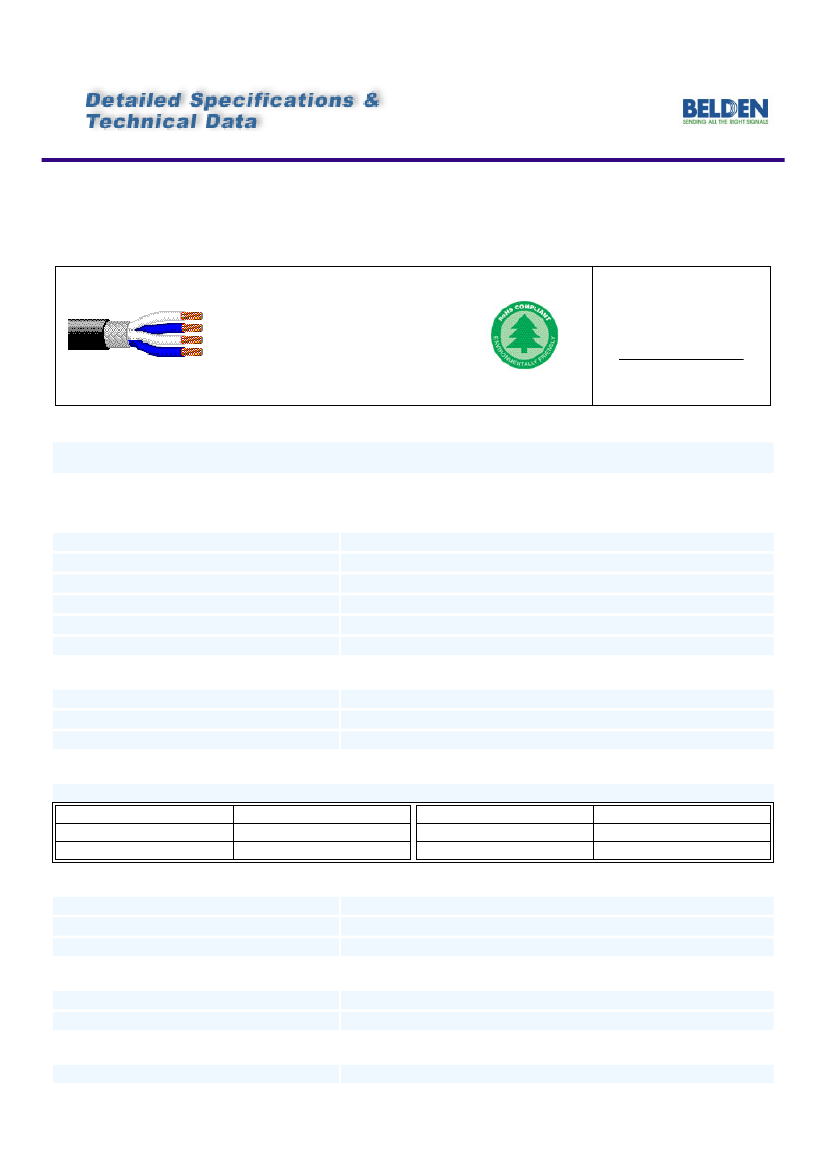

1192A Non-Paired - Four-Conductor Star Quad, Low-Impedance Cable
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
24 AWG stranded (42x40) high-conductivity bare copper conductors, polyethylene insulation, tinned copper braid shield (95% coverage),
PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors
Total Number of Conductors
AWG
Stranding
Conductor Diameter
Conductor Material
INSULATION:
Insulation Material
Nom. Insulation Wall Thickness
Insulation Diameter
OVERALL CABLING:
Overall Cabling Color Code Chart :
Number
1
2
OUTER SHIELD:
Outer Shield Type
Outer Shield Material
Outer Shield %Coverage
OUTER JACKET:
Outer Jacket Material
Outer Jacket Nominal Wall Thickness
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter
MECHANICAL CHARACTERISTICS:
Page 1 of 3
4
4
24
42x40
.024 in.
SBC - Soft Bare Copper
PE - Polyethylene
.016 in.
.056 in.
Color
Blue
White
Number
3
4
Color
Blue w/White Stripe
White w/Blue Stripe
Braid
TC - Tinned Copper
95 %
PVC - Polyvinyl Chloride
.045 in.
.245 in.
1192A Non-Paired - Four-Conductor Star Quad, Low-Impedance Cable
Operating Temperature Range
Non-UL Temperature Rating
Bulk Cable Weight
Max. Recommended Pulling Tension
Min. Bend Radius (Install)
-30°C To +75°C
75°C
33 lbs/1000 ft.
21 lbs.
2.45 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
EU CE Mark (Y/N)
EU RoHS Compliant (Y/N)
EU RoHS Compliance Date (mm/dd/yyyy):
PLENUM/NON-PLENUM:
Plenum (Y/N)
ELECTRICAL CHARACTERISTICS:
Nom. Characteristic Impedance
Nom. Inductance
Nom. Capacitance Conductor to Conductor @ 1 KHz
Nominal Velocity of Propagation
Nom. Conductor DC Resistance @ 20 Deg. C
Nominal Outer Shield DC Resistance @ 20 Deg. C
Max. Operating Voltage - UL
Max. Operating Voltage - Other :
Other Voltage
18.0 kV
16.9 kV
Max. Recommended Current
Other Electrical Characteristic 1
NOTES:
Notes
Quad connection scheme: The two blue wires (or wires directly opposite one
another) are connected together to form one conductor, and similarly the two white
wires (or remaining wires) are connected together to form the second conductor.
Description
Nom. breakdown voltage between conductors
Nom. breakdown voltage conductors to shield
2.9 Amps per conductor @ 25°C
2/c 21 AWG equivalent DCR when connected to a 3-pin XLR
40 Ohms
.21 µH/ft
39.2 pF/ft
66 %
26.6 Ohms/1000 ft
7.1 Ohms/1000 ft
100 V RMS
N
Yes
Yes
01/01/2004
Nom. Cap. Between Cond. in a Quad Config. @ 1 KHz 57.4 pF/ft
PUT-UPS AND COLORS:
Item
Description
1192A B59100
4 #24 PE SH PVC
BLK MTT
1192A B591000
4 #24 PE SH PVC
BLK MTT
1192A B59500
4 #24 PE SH PVC
BLK MTT
Put-Up (ft.)
100
1000
500
Ship Weight (lbs.)
3.3
37
16.5
Jacket Color
BLACK, MATTE
BLACK, MATTE
BLACK, MATTE
Notes
C
C
Page 2 of 3
1192A Non-Paired - Four-Conductor Star Quad, Low-Impedance Cable
1192A G7V1000
1192A G7W1000
1192A G7X1000
1192A G7X500
1192A G8M1000
1192A U901000
4 #24 PE SH PVC
RED MTT
4 #24 PE SH PVC
GRN MTT
4 #24 PE SH PVC
BLU MTT
4 #24 PE SH PVC
BLU MTT
4 #24 PE SH PVC
YEL MTT
4 #24 PE SH PVC
GRY MTT
1000
1000
1000
500
1000
1000
37
37
37
16.5
37
37
RED, MATTE
GREEN, MATTE
BLUE, MATTE
BLUE, MATTE
YELLOW, MATTE
GRAY, MATTE
C
C
C
C
C = CRATE REEL PUT-UP.
Revision Number: 1
Revision Date: 07-27-2005
© Copyright 2006 Belden, Inc
All Rights Reserved.
Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment
For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-
2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU
ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-
2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the
Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information
provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory
information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations
based on their individual usage of the product.
Belden declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.
Page 3 of 3
