BUZ11S2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BUZ11S2

BUZ11S2: DescriptionSIPMOS Power Transistor (N channel Enhancement mode Avalanche-rated); CategoryDiscrete semiconductor The transistor; File Size106KB，9 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BUZ11S2 Overview

SIPMOS Power Transistor (N channel Enhancement mode Avalanche-rated)

BUZ11S2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIEMENS
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	14 mJ
Configuration	SINGLE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (Abs) (ID)	30 A
Maximum drain current (ID)	30 A
Maximum drain-source on-resistance	0.04 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	250 pF
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	75 W
Maximum power dissipation(Abs)	75 W
Maximum pulsed drain current (IDM)	120 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	270 ns
Maximum opening time (tons)	110 ns

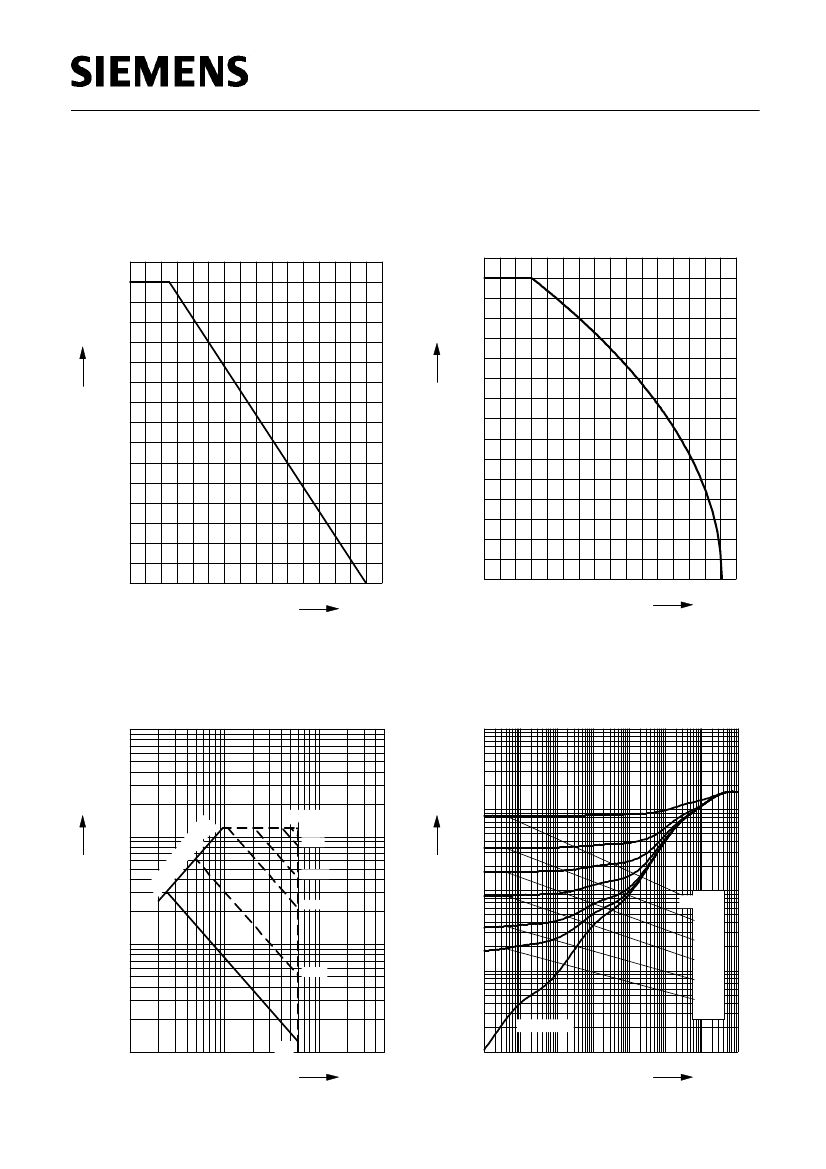

Preview

Download Datasheet

View All

BUZ 11 S2

Not for new design

SIPMOS

Power Transistor

• N channel

• Enhancement mode

• Avalanche-rated

Pin 1

Pin 2

Pin 3

Type

BUZ 11 S2

60 V

30 A

DS(on)

0.04

Ω

Package

TO-220 AB

Ordering Code

C67078-S1301-A5

Maximum Ratings

Parameter

Continuous drain current

Symbol

Values

Unit

Dpuls

120

= 29 °C

Pulsed drain current

= 25 °C

Avalanche current,limited by

jmax

Avalanche energy,periodic limited by

jmax

Avalanche energy, single pulse

1.9

= 30 A,

= 25 V,

= 25

Ω

= 15.6 µH,

= 25 °C

Gate source voltage

Power dissipation

tot

= 25 °C

Operating temperature

Storage temperature

Thermal resistance, chip case

Thermal resistance, chip to ambient

DIN humidity category, DIN 40 040

IEC climatic category, DIN IEC 68-1

stg

thJC

thJA

-55 ... + 150

≤

1.67

≤

55 / 150 / 56

°C

K/W

Semiconductor Group

07/96
