0.80±0.10
RF Components
DEA162450BT-1298A1
ELECTRICAL CHARACTERISTICS
Item
Insertion Loss (dB)
Return Loss (dB)
Attenuation (dB)
Characteristic Impedance (:)
・Ta:
+25±5°C
Frequency Range
(MHz)
2400 to 2500
2400 to 2500
800
4800 to 5000
7200 to 7500
Min.
—
10
25
30
30
Typ.
0.91
22.3
26.7
52.0
42.2
50 (Nominal)
Max.
1.30
—
—
—
—
TEMPERATURE RANGE
Operating temperature
（°C）
–40 to +85
Storage temperature
（°C）
–40 to +85
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150601 / rf_bpf_dea162450bt-1298a1_en.fm
RF Components
DEA162450BT-1298A1

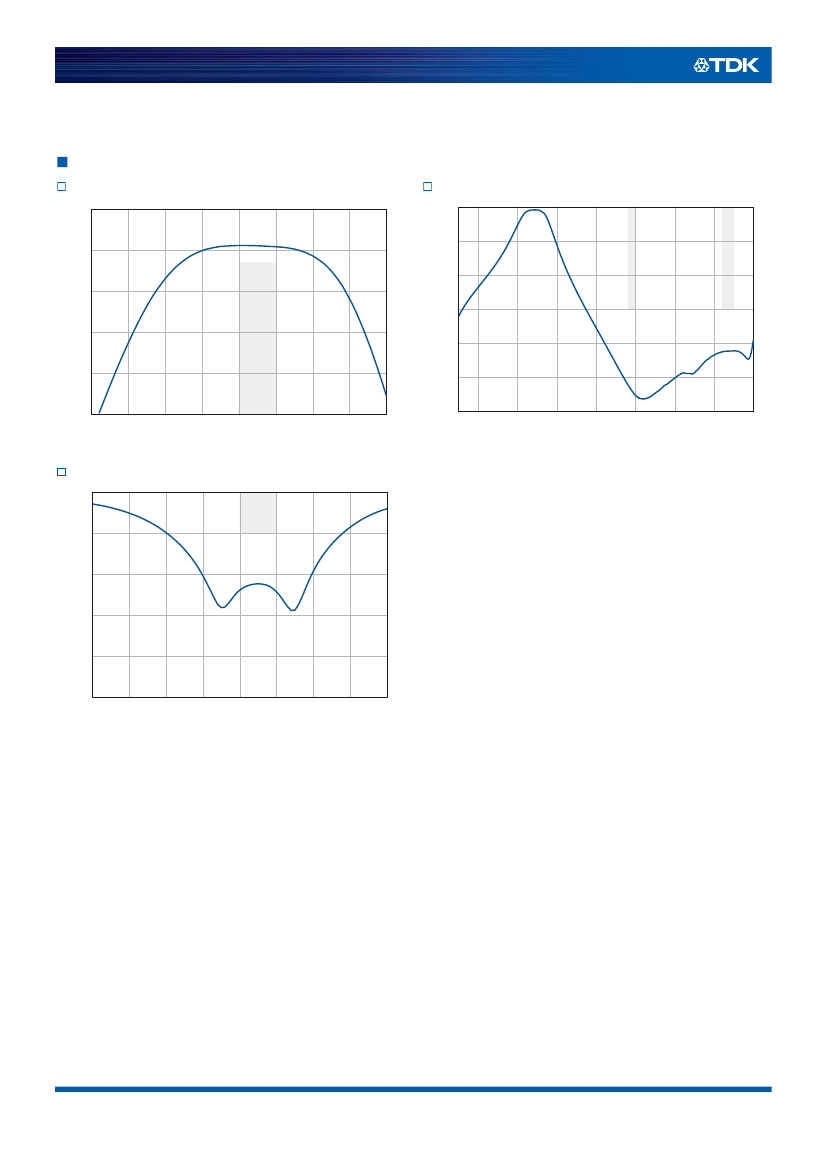

FREQUENCY CHARACTERISTICS
INSERTION LOSS
0
ATTENUATION
0
10
1
20
2
Insertion Loss(dB)
Attenuation(dB)
30
3
40
4
50
5
2000
60
2100
2200
2300
2400
2500
Frequency(MHz)
2600
2700
2800
1000
2000
3000
4000
5000
Frequency(MHz)
6000
7000
8000
RETURN LOSS
0
10
Return Loss(dB)
20
30
40
50
2000
2100
2200
2300
2400
2500
Frequency(MHz)
2600
2700
2800
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150601 / rf_bpf_dea162450bt-1298a1_en.fm
RF Components
DEA162450BT-1298A1

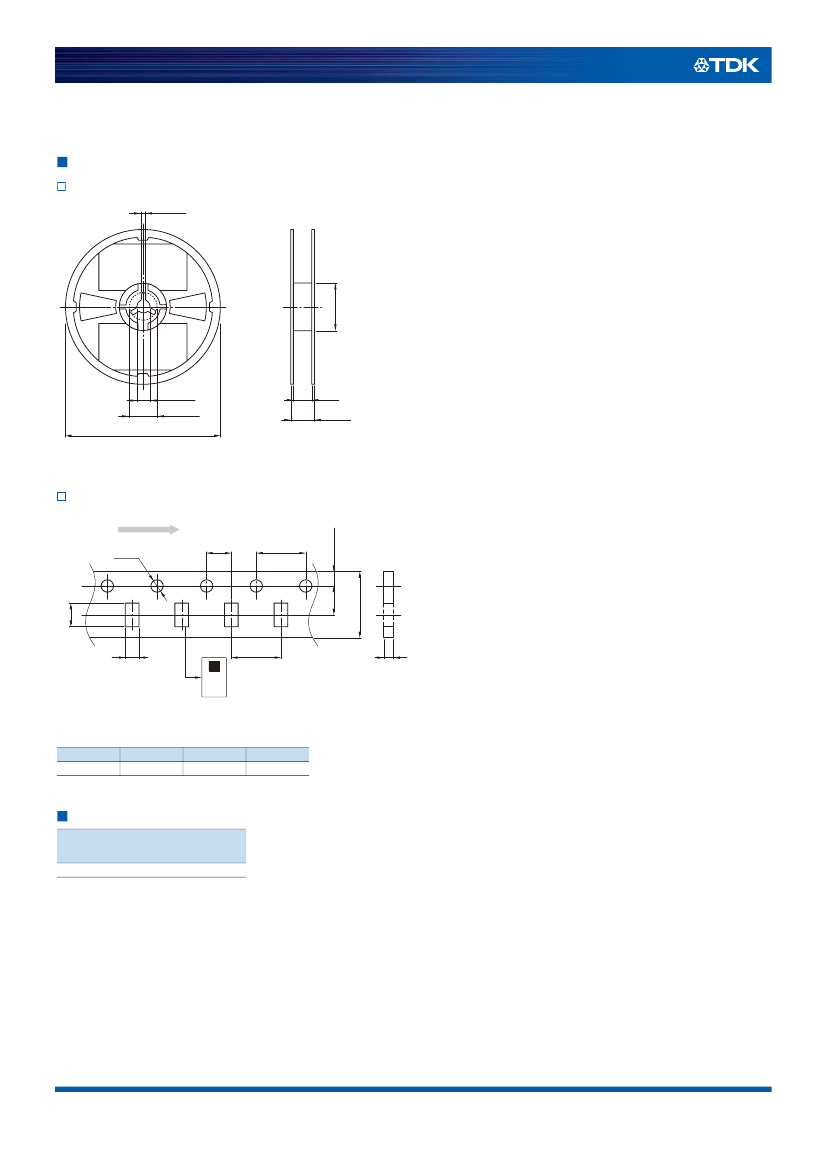

PACKAGING STYLE
REEL DIMENSIONS
2.0±0.5
ø13±0.2
ø21±0.8
ø180
+0
–1.5
9
+1.0
–0.0
13±1.0
Dimensions in mm
TAPE DIMENSIONS
Loading Direction
1.5
+0.1
0
2.00±0.05
4.00±0.1
1.75±0.1
8.00±0.2
F
B
A
4.00±0.1
ø60
+1.0
–0.0
K
A
0.97±0.05
B
1.80±0.05
F
3.50±0.05
K
0.75±0.05
PACKAGE QUANTITY
Standard package quantity
(pieces/reel)
4000
