543945010500: Description20 AWG solid bare copper conductor, foam polyethylene insulation, bare copper braid shield, PVC jacket, sequential footage marking every two feet.; File Size27KB，3 Pages; ManufacturerETC2

Download Datasheet Compare View All

543945010500 Overview

20 AWG solid bare copper conductor, foam polyethylene insulation, bare copper braid shield, PVC jacket, sequential footage marking every two feet.

Preview

Download Datasheet

View All

543945 Coax - Surveillance and CCTV Applications

For more information please

call

1-800-Belden1

See Put-ups and Colors

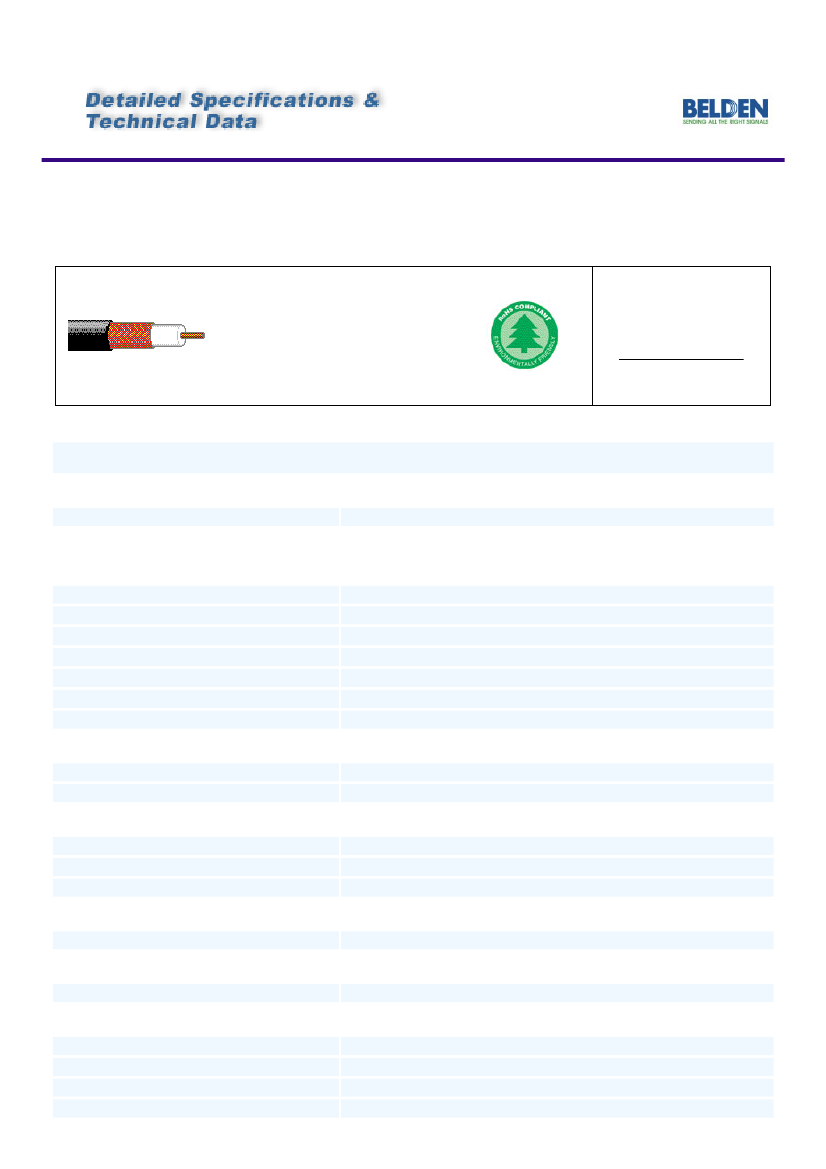

Description:

20 AWG solid bare copper conductor, foam polyethylene insulation, bare copper braid shield, PVC jacket, sequential footage marking every

two feet.

SUITABLE APPLICATIONS:

Suitable Applications

PHYSICAL CHARACTERISTICS:

CONDUCTOR:

Number of Coax

RG Type

Series Type

AWG

Stranding

Conductor Diameter

Conductor Material

INSULATION:

Insulation Material

Insulation Diameter

OUTER SHIELD:

Outer Shield Type

Outer Shield Material

Outer Shield %Coverage

OUTER JACKET:

Outer Jacket Material

OVERALL NOMINAL DIAMETER:

Overall Nominal Diameter

MECHANICAL CHARACTERISTICS:

Operating Temperature Range

UL Temperature Rating

Bulk Cable Weight

Max. Recommended Pulling Tension

-30°C To +75°C

75°C

29 lbs/1000 ft.

57 lbs.

Page 1 of 3

Analog Video/CCTV Coax.

59/U

Series 59

Solid

.032 in.

BC - Bare Copper

Gas-injected FPE - Foam Polyethylene

.145 in.

Braid

BC - Bare Copper

95 %

PVC - Polyvinyl Chloride

.232 in.

543945 Coax - Surveillance and CCTV Applications

PUT-UPS AND COLORS:

Item

Description

543945 0091000

RG-59/U COAX

543945 009500

543945 009U1000

543945 009U500

543945 0101000

543945 010500

543945 010U1000

543945 010U500

RG-59/U COAX

Put-Up (ft.)

1000

500

U1000

U500

1000

500

U1000

U500

Ship Weight (lbs.)

Jacket Color

WHITE

BLACK

Notes

C = CRATE REEL PUT-UP.

Revision Number: 1

Revision Date: 09-29-2005

Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and

specifications described herein are subject to error or omission and to change without notice, and the listing of such information and

specifications does not ensure product availability.

Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,

statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or

exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,

negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described

herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment

For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-

2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU

ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-

2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the

Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information

provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product

itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory

information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations

based on their individual usage of the product.

Belden declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.

Page 3 of 3
