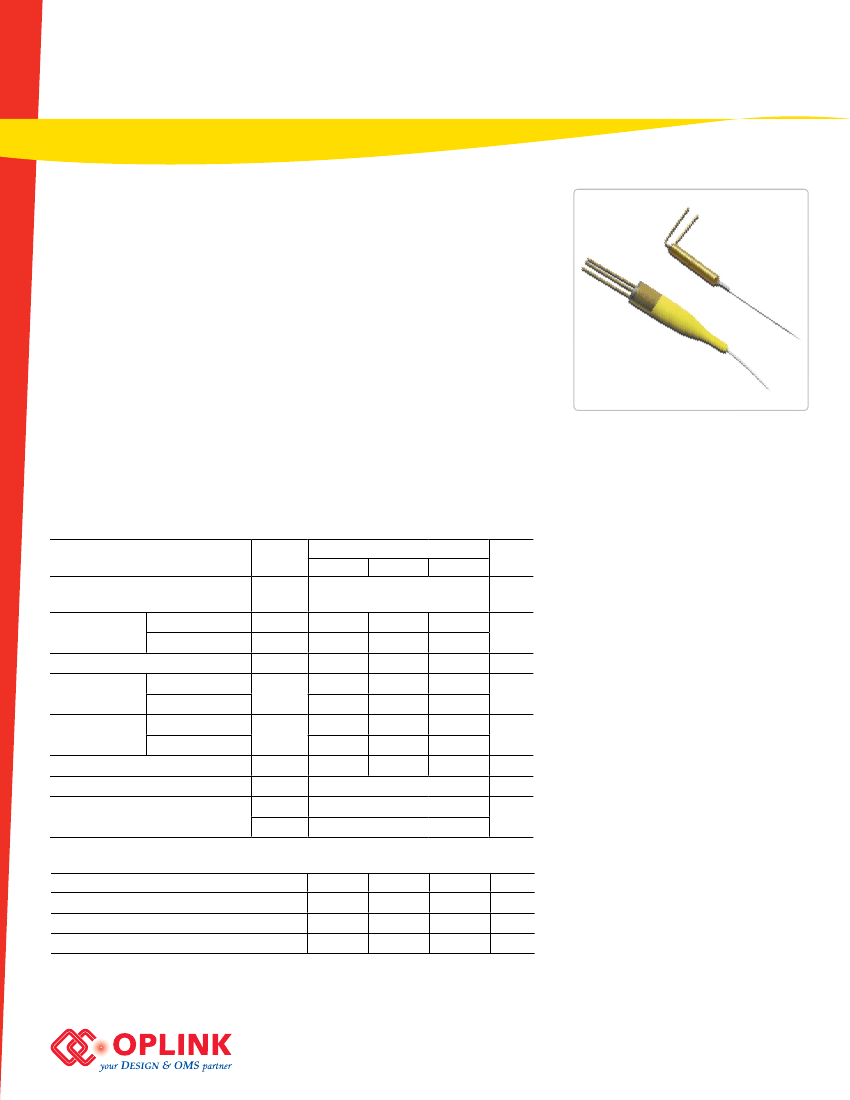

Pigtail Integrated InGaAs PIN
Photodiode
PIPD Series
Product Description
Oplink’s PIPD series PIN photodiode is based on InGaAs process. It is designed for power
level monitoring in optical network systems. The product features low dark current and
high responsivity and wide operating wavelength range.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full func-
tion module or subsystem.
Performance Specifications
ns
Parameters
Symbol
Specification
Min.
Typ.
Max.
Unit
Features
High Responsivity
Low Dark Current
Quick Response
Wide Operating Wavelength
High Reliability
Laser Welding & Soldering
Operating Wavelength Range
Responsivity
@1550nm
@1310nm
Bandwidth=2.0G
Bandwidth=0.5G
Bandwidth=2.0G
Bandwidth=0.5G
λop
R
1550
R
1310
PDR
Id
C
RL
Pkg 1
Pkg 3/4
1310±50 or/and
1550±50
0.80
0.75
0.90
0.85
0.1
2.5
10
0.7
0.7
40
Corning SMF-28
(Ø) 5.6 x (L)26.0
(Ø) 3.3 x (L)17.0
1
8
nm
A/W
dB
nA
pF
dB
Polarization Dependent Responsivity
Dark Current
@
V
R
=5 V (70°C)
Capacitance
@
V
R
=5 V (1MHz)
Return loss
Fiber Type
Package Dimensions
Applications
mm
Power Monitoring
DWDM Systems
“Smart” Optical Amplifiers
Network Links and Optical Cross-
connects
Re-configurable Optical Add/Drop
Multiplexers
Protection/Restoration System
Environmental Conditions
ns
Parameters
Min.
Typ.
Max.
Unit
Operating Temperature *
Storage Temperature *
Soldering Temperature
(<5s, >2mm from device)
0
-40
+70
+85
260
°C
°C
°C
* Not to exceed 0.024 kg water per kg of dry air.Non-condensing Conditions.
S0063 - R03. (web). 20120618
Pigtail Integrated InGaAs PIN Photodiode
PIPD Series
Mechanical Drawing / Package Dimensions (dimension in mm)
Package 1 (Bare Fiber or Loose Tube)
Package 3 (Bare Fiber)
Package 4 (900μm Loose Tube)
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
PIPD
0
Wavelength
Dual Window = DUAL
1310nm = 1310
1550nm = 1550
Bandwidth
0.5G = 05
2.0G = 20
Fiber Length
0.5meter = H
1.0meter = 1
1.5meter = 5
2.0meter = 2
Connector
Type
None = 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
Package & Fiber Type
P1+ 250µm bare fiber = 11
P1+ 900µm loose tub = 12
P3+ 250µm bare fiber = 31
P4+ 900µm loose tube = 42
** RoHS: Add “G” to the end of the above PN for RoHS 6.
* The tolerance of fiber length is +/-0.1m.
S0063 - R03. (web). 20120618
