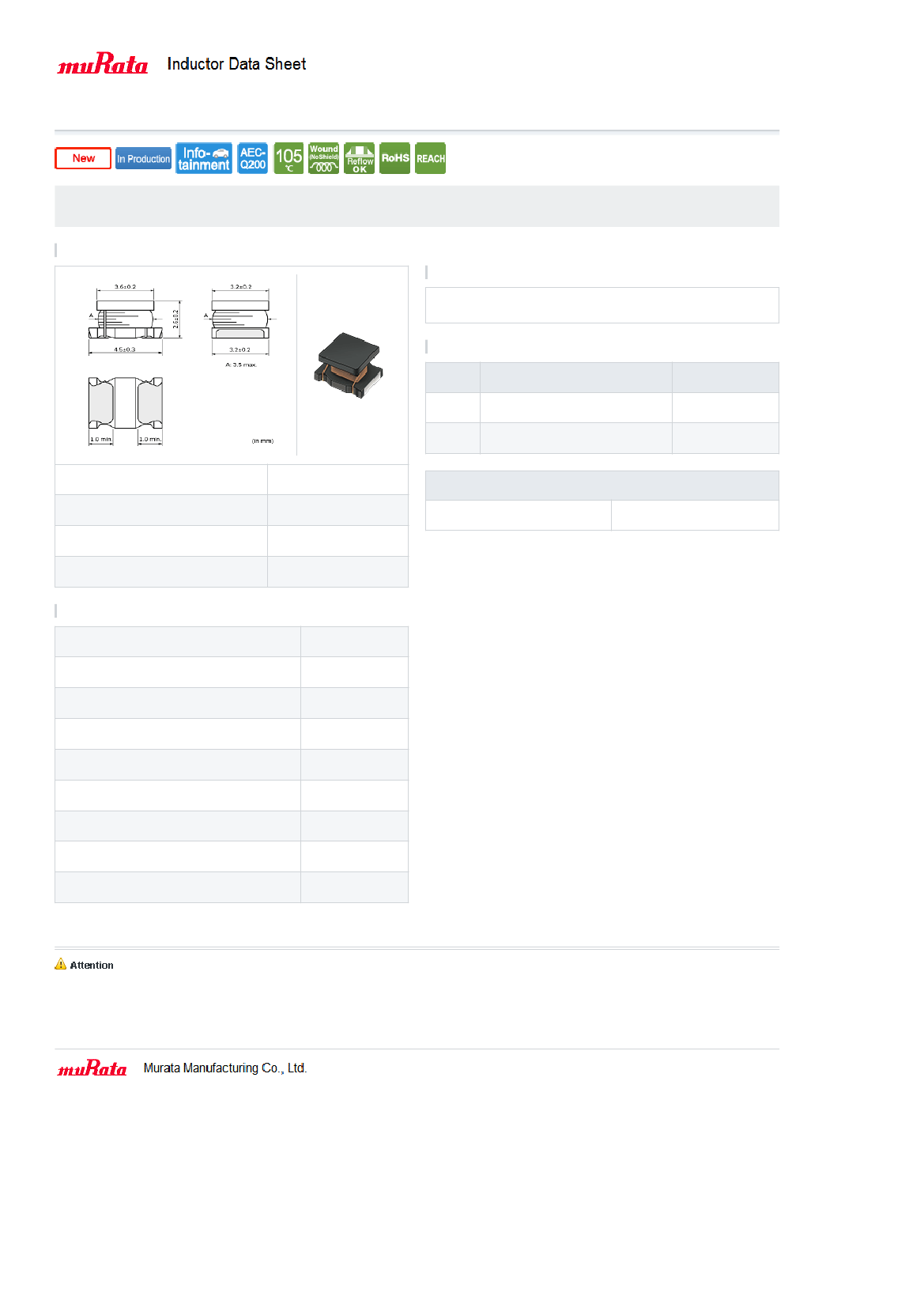

Preview

LQH43NZ181K03: DescriptionInductance; File Size66KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Compare View All

LQH43NZ181K03 Overview

Inductance

Preview

Download Datasheet

View All

LQH43NZ181K03#

# indicates a package specification code.

< List of part numbers with package codes >

LQH43NZ181K03L , LQH43NZ181K03K

Shape

Notes

When applied Rated current to the Products, self temperature rise shall be limited

to 20℃ max and Inductance will be within ±10% of initial Inductance value.

References

Packaging

code

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

500

2500

L size

W size

T size

Size code in inch (mm)

4.5 ±0.3mm

3.2 ±0.2mm

2.6 ±0.2mm

1812 (4532)

Mass (Typ.)

1 piece

0.13g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range

Class of magnetic shield

180µH ±10%

1MHz

120mA

4.5Ω

796kHz

5.0MHz

-40∼105℃

No magnetic shield

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
