SAW Components
SAW RF Dual Band filter for base stations
Band 34 and band 39
Series/type:
Ordering code:
Date:
Version:
B5190
B39192B5190U410
April 16, 2014
2.2
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW RF Dual Band filter
Data sheet
Application
s
Unbalanced to unbalanced operation
s
Two passband for band 34 and tightened band 39
B5190
1897.5/2017.5 MHz
(1880 to 1915 MHz)
s
Matching required for operation at 50
Ω
Features
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Ceramic Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitive Level
1
Filter surface passivated
Pin configuration
s
2
Input
s
5
Output
s
1,3,4,6 To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
April 16, 2014
SAW Components
SAW RF Dual Band filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50
Ω
and matching network
Z
L
=
50
Ω
and matching network
min.
Maximum insertion attenuation
1880.0 ... 1915.0
2010.0
... 2025.0
Amplitude ripple
(p-p)
1880.0 ... 1915.0
2010.0
Input return loss
1880.0
2010.0
Output return loss
1880.0
2010.0
Group delay
1880.0
2010.0
... 1915.0
... 2025.0
MHz
MHz
—
—
30
25
35
30
ns
ns
... 2025.0
... 1915.0
... 2025.0
... 1915.0
... 2025.0
α
max
MHz
MHz
∆α
MHz
MHz
MHz
MHz
MHz
MHz
—
—
9
12
9
12
0.9
0.5
13
16
13
16
1.4
1.0
—
—
—
—
dB
dB
dB
dB
dB
dB
—
—
2.8
2.7
3.3
3.2
dB
dB
typ.
@ 25 ˚C
max.
B5190
1897.5/2017.5 MHz
Group delay ripple
(p-p)
1880.0 ... 1915.0
2010.0 ... 2025.0
Attenuation
10.0
1700.0
1785.0
1941.0
2070.0
2110.0
2300.0
2400.0
...
...
...
...
...
...
...
...
1700.0
1785.0
1800.0
1980.0
2110.0
2300.0
2400.0
4000.0
MHz
MHz
α
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
—
—
14
10
20
20
ns
ns
28
32
30
12
25
34
35
28
40
37
37
20
40
41
40
35
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
April 16, 2014
SAW Components
SAW RF Dual Band filter
Data sheet
B5190
1897.5/2017.5 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
ESD voltage
Input power at
1880.0...1915.0MHz
2010.0...2025.0MHz
1)
2)
T
T
stg
V
DC
V
ESD
V
ESD
P
IN
P
IN
–40/+85
–40/+85
0
100
1)
200
2)
15
15
˚C
˚C
V
V
V
dBm
dBm
Machine Model
Human Body Model
cw, 85 ˚C , 10 000 h
cw, 85 ˚C , 10 000 h
acc. to JESD22-A115B (MM - Machine Model), 10 negative & 10 positive pulses.
acc. to JESD22-A115F (HBM - Human Body Model), 1 negative & 1 positive pulses.
Matching network to 50
Ω
Input / 50
Ω
Output :
L
p1
= 3.0 nH
C
s2
= 3.3 pF
C
s3
= 3.9 pF
L
p4
= 2.7 nH
Please read
cautions and warnings and
important notes
at the end of this document.
4
April 16, 2014
SAW Components
SAW RF Dual Band filter
Data sheet

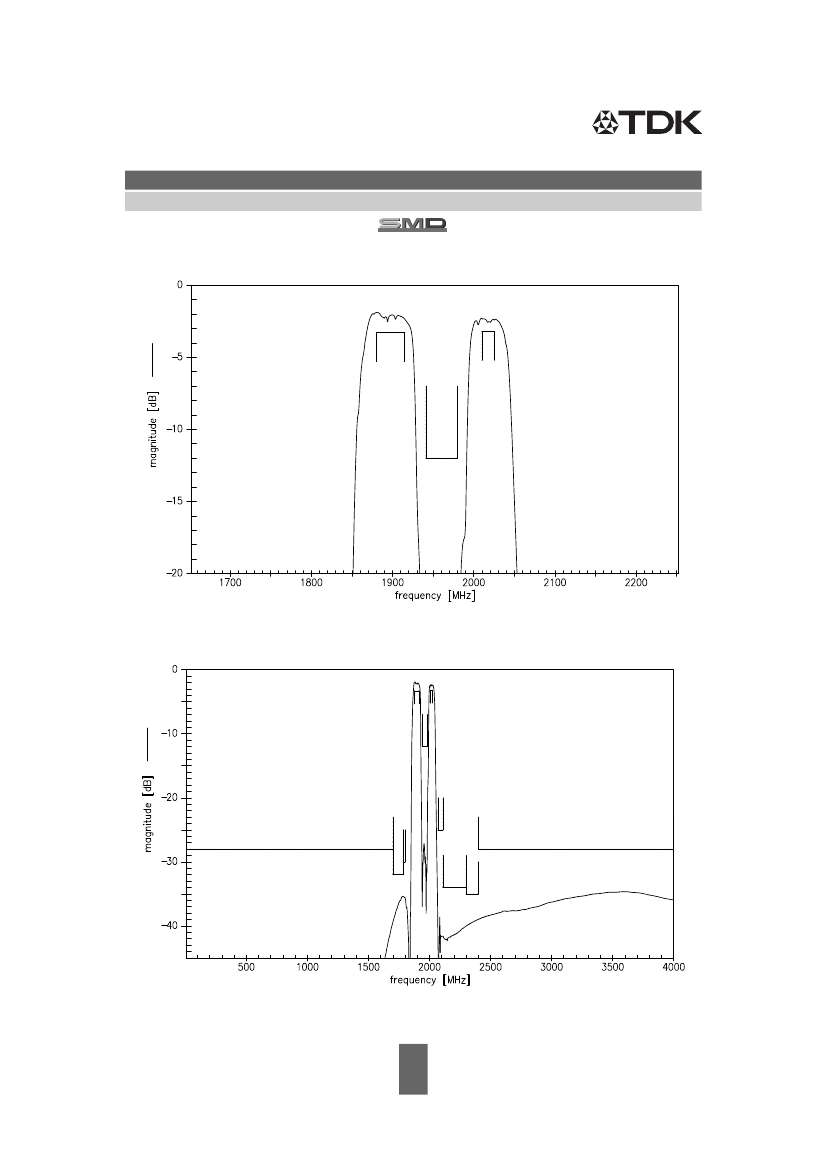

Transfer function
(Narrow band)
B5190
1897.5/2017.5 MHz
Transfer function
(Wide band)
Please read
cautions and warnings and
important notes
at the end of this document.
5
April 16, 2014
