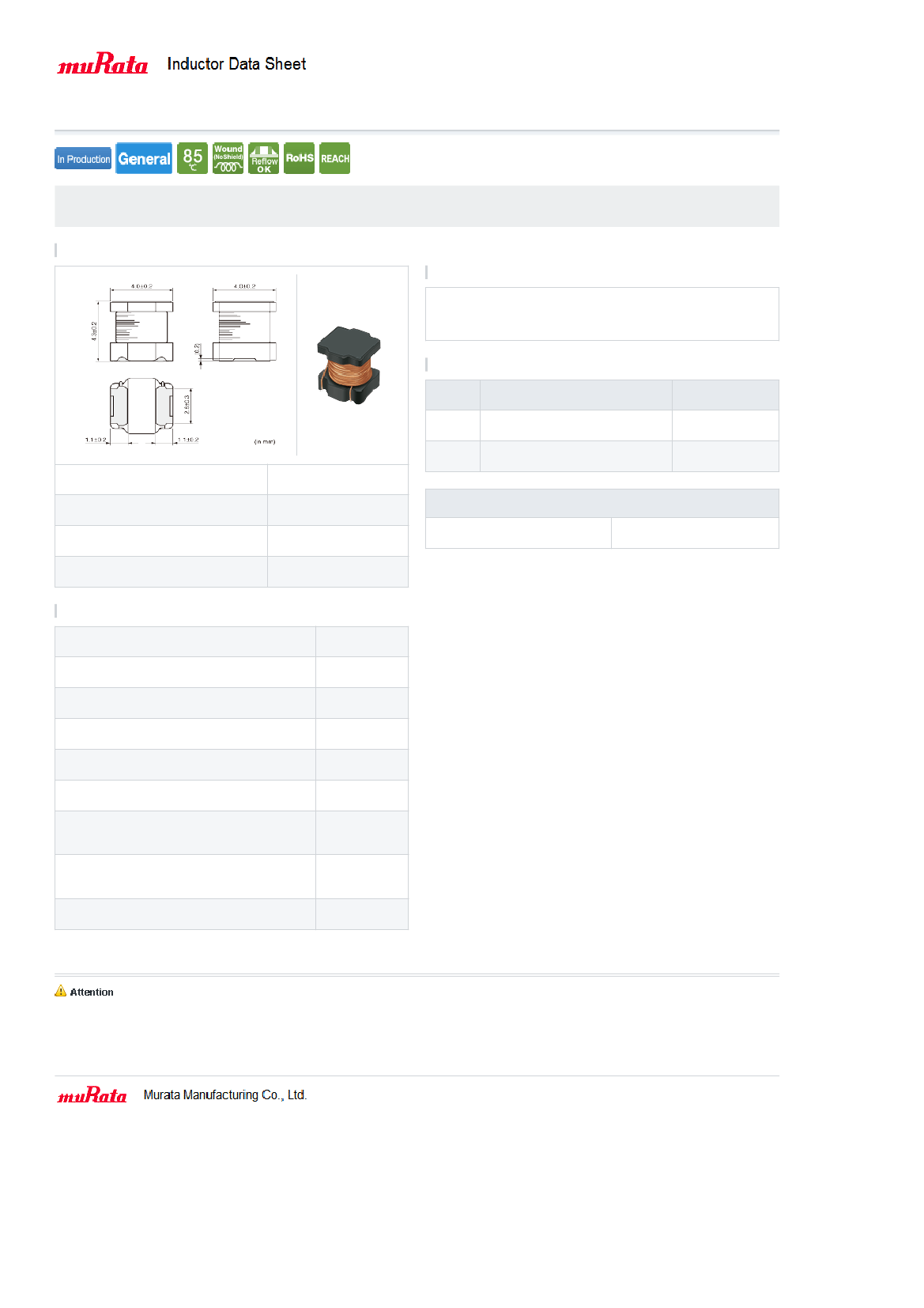

LQH44NNR74M03#
# indicates a package specification code.
< List of part numbers with package codes >
LQH44NNR74M03L , LQH44NNR74M03K
Shape
Notes
When applied Rated current to the Products, Inductance will be within ±30% of
initial Inductance value.
When applied Rated current to the Products, temperature rise caused by
self-generated heat shall be limited to 40℃ max.
References
Packaging
code
Specifications
φ180mm Embossed taping
φ330mm Embossed taping
L size
W size
T size
Size code in inch (mm)
4.0 ±0.2mm
4.0 ±0.2mm
4.3 ±0.2mm
1515 (4040)
1 piece
Mass (Typ.)
0.26g
Minimum quantity
250
1500
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is
included)
Operating temperature range (Self-temperature rise is not
included)
Class of magnetic shield
0.74µH ±20%
1kHz
3.50A
0.0143Ω
0.011Ω±30%
150MHz
-40∼125℃
-40∼85℃
No magnetic shield
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Current characteristics (Typ.)
2 of 2
This PDF data has only typical specifications because there is no space
for detailed specifications.
Therefore, please reviewour product specifications or consult the
approval sheet for product specifications before ordering.
Last updated: 2016/04/21
