52-PV7F2Y011311 datasheet, PDF

Datasheet> All Categories > 52-PV7F2Y011311

Preview

52-PV7F2Y011311: DescriptionHARDWARE INCLUDED (NOT SHOWN) HEX NUT AND O-RING; File Size99KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV7F2Y011311 Overview

HARDWARE INCLUDED (NOT SHOWN) HEX NUT AND O-RING

Preview

Download Datasheet

View All

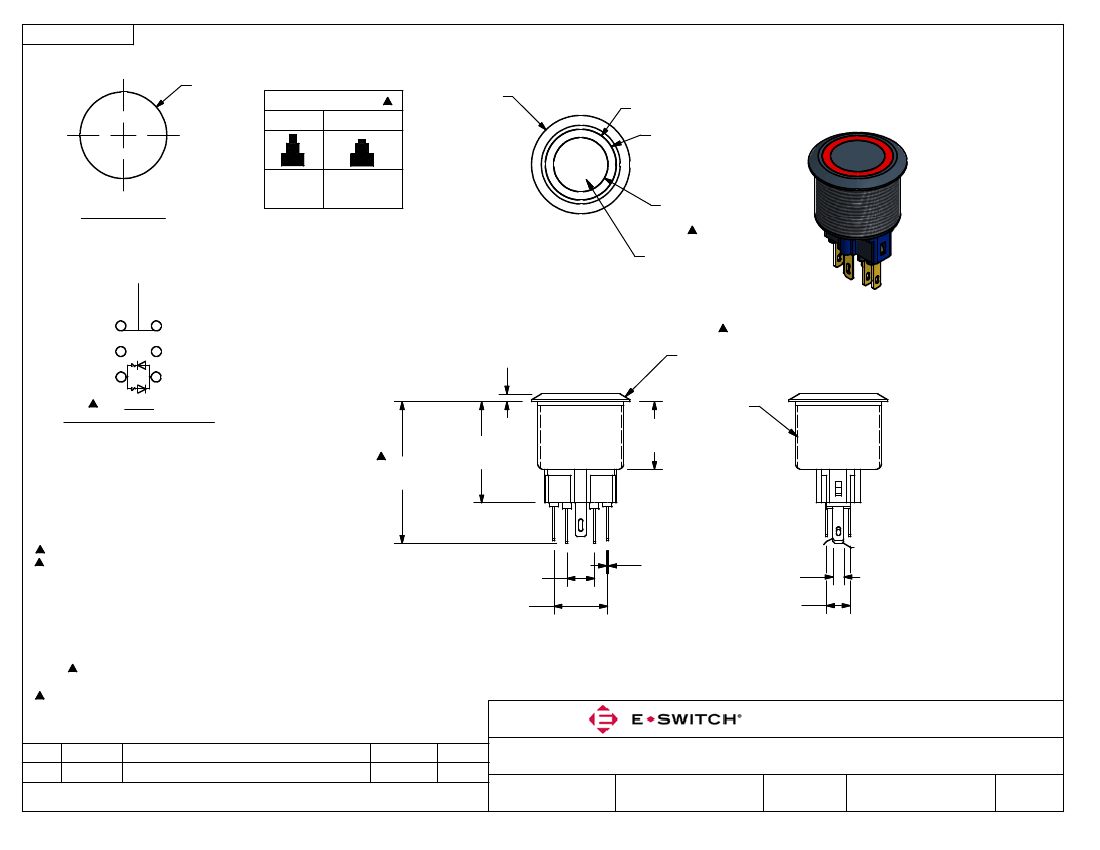

SHEET 1 OF 1

22.00

[.866 in]

SWITCH FUNCTION

POS. 1

POS. 2 (MOM)

25.00

[.984 in]

18.00

[.709 in]

RING ILLUMINATION

1-2

PANEL CUTOUT

MAX. PANEL THICKNESS 8mm

3-4

(ON) = MOMENTARY

13.80

[.543 in]

ACTUATOR COLOR:

BLACK ANODIZED

ALUMINUM

(-)

(+)

2.00

[.079 in]

BODY COLOR:

BLACK ANODIZED

ALUMINUM

SPDT

CONTACT CONFIGURATION

25.70

.50

[1.012

.020

in]

17.20

[.677 in]

M22x1.0

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = ± 0.4

X.XX = ± 0.25

3. TERMINAL NOS. FOR REF. ONLY

4. FUNCTION: SPDT

5. RATING: 2A @ 48VDC

6. ILLUMINATION VOLTAGE: 1.8V

7. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

8. INSULATION RESISTANCE: 1,000M @ 500VDC

9. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE

10. ELECTRICAL LIFE: 50,000 CYCLES

11. OPERATING TEMPERATURE: -20°C TO 55°C

12. INGRESS PROTECTION: IP65

13. DENOTES CRITICAL PARAMETER

13. 2002/95/EC (ROHS) COMPLIANT

14. ILLUMINATION COLOR: RED (FORWARD), RED (REVERSE)

15. HARDWARE INCLUDED (NOT SHOWN) HEX NUT AND O-RING

36.00

.50

[1.417

.020

in]

(+)

(-)

7.00

[.276 in]

13.60

[.535 in]

.50

[.020 in]

2.80

[.110 in]

6.00

[.236 in]

REV

21510

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

7/14/14

DATE

EBP

TITLE

PV7F2Y011-311

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

7/14/2014

EBP

52-PV7F2Y011311
