LY62W5128
Rev. 1.11
512K X 8 BIT LOW POWER CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Rev. 1.1
Rev. 1.2
Rev. 1.3
Rev. 1.4
Description
Initial Issue
Revised V
IH
to TTL compatible
Revised V
IH
to 0.7*Vcc
Revised V
DR
Revised V
TERM
to V
T1
and V
T2
Revised Test Condition of I
SB1
/I
DR
Revised
FEATURES
&
ORDERING INFORMATION
Lead free and green package available
to
Green package available
Added packing type in
ORDERING INFORMATION
Deleted T
SOLDER
in
ABSOLUTE MAXIMUN RATINGS
Adding PKG type : 32 TSOP-II
Revised
PACKAGE OUTLINE DIMENSION
in page 9/10/11
Revised typo in
PIN CONFIGURATION
Revised
ORDERING INFORMATION
in page 12
Revised
PACKAGE OUTLINE DIMENSION
in page 8/12
Revised typo in
REVISION HISTORY
ORDERING INFORMATION
in page 12 to 13
Added SL Grade
Deleted E Grade
Revised I
SB1
/I
DR
Added PKG type : 32 P-DIP
Revised “Standby Power Supply Current” in page 4
Revised “Data Retention Current” in page 8
Issue Date
Dec.1.2006
Jan.9.2008
May.6.2008
Mar.3.2009
Aug.5.2009
Rev. 1.5
Rev. 1.6
Rev. 1.7
Rev. 1.8
Rev. 1.9
Rev. 1.10
Rev. 1.11
May.7.2010
Jul.21.2010
Aug.25.2010
Oct.29.2010
Aug.9.2011
Nov.24.2011
Apr.30.2012
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
0
®
LY62W5128
Rev. 1.11
512K X 8 BIT LOW POWER CMOS SRAM
GENERAL DESCRIPTION
The LY62W5128 is a 4,194,304-bit low power
CMOS static random access memory organized as
524,288 words by 8 bits. It is fabricated using very
high performance, high reliability CMOS technology.
Its standby current is stable within the range of
operating temperature.
The LY62W5128 is well designed for very low power
system applications, and particularly well suited for
battery back-up nonvolatile memory application.
The LY62W5128 operates from a single power
supply of 2.7V ~ 5.5V and all inputs and outputs are
fully TTL compatible
FEATURES
Fast access time : 55/70ns
Low power consumption:
Operating current : 30/20mA (TYP.)
Standby current : 4μA (TYP.) LL-version
3μA (TYP.) SL-version
Single 2.7V ~ 5.5V power supply
All outputs TTL compatible
Fully static operation
Tri-state output
Data retention voltage : 1.5V (MIN.)
Green package available
Package : 32-pin 450 mil SOP
32-pin 8mm x 20mm TSOP-I
32-pin 8mm x 13.4mm STSOP
36-ball 6mm x 8mm TFBGA
32-pin 400 mil TSOP-II
32-pin 600 mil P-DIP
PRODUCT FAMILY
Product
Family
LY62W5128
LY62W5128(I)
Operating
Temperature
0 ~ 70℃
-40 ~ 85℃
Vcc Range
2.7 ~ 5.5V
2.7 ~ 5.5V
Speed
55/70ns
55/70ns
Power Dissipation
Standby(I
SB1
TYP.) Operating(Icc,TYP.)
4µA(LL)/3µA(SL)
30/20mA
4µA(LL)/3µA(SL)
30/20mA
FUNCTIONAL BLOCK DIAGRAM
PIN DESCRIPTION
SYMBOL
DESCRIPTION
Address Inputs
Data Inputs/Outputs
Chip Enable Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection
Vcc
Vss
A0 - A18
DQ0 – DQ7
DECODER
512Kx8
MEMORY ARRAY
CE#
WE#
OE#
V
CC
V
SS
NC
A0-A18
DQ0-DQ7
I/O DATA
CIRCUIT
COLUMN I/O
CE#
WE#
OE#
CONTROL
CIRCUIT
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
1
®
LY62W5128
Rev. 1.11
512K X 8 BIT LOW POWER CMOS SRAM

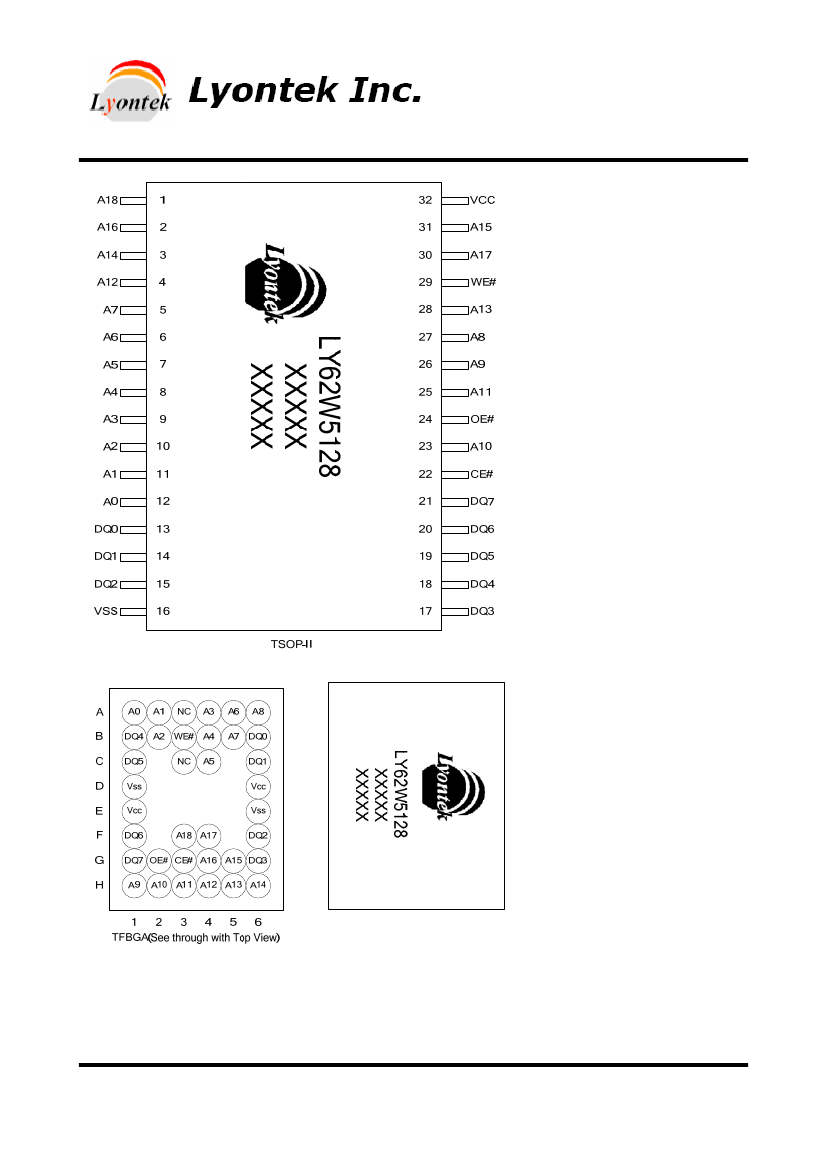

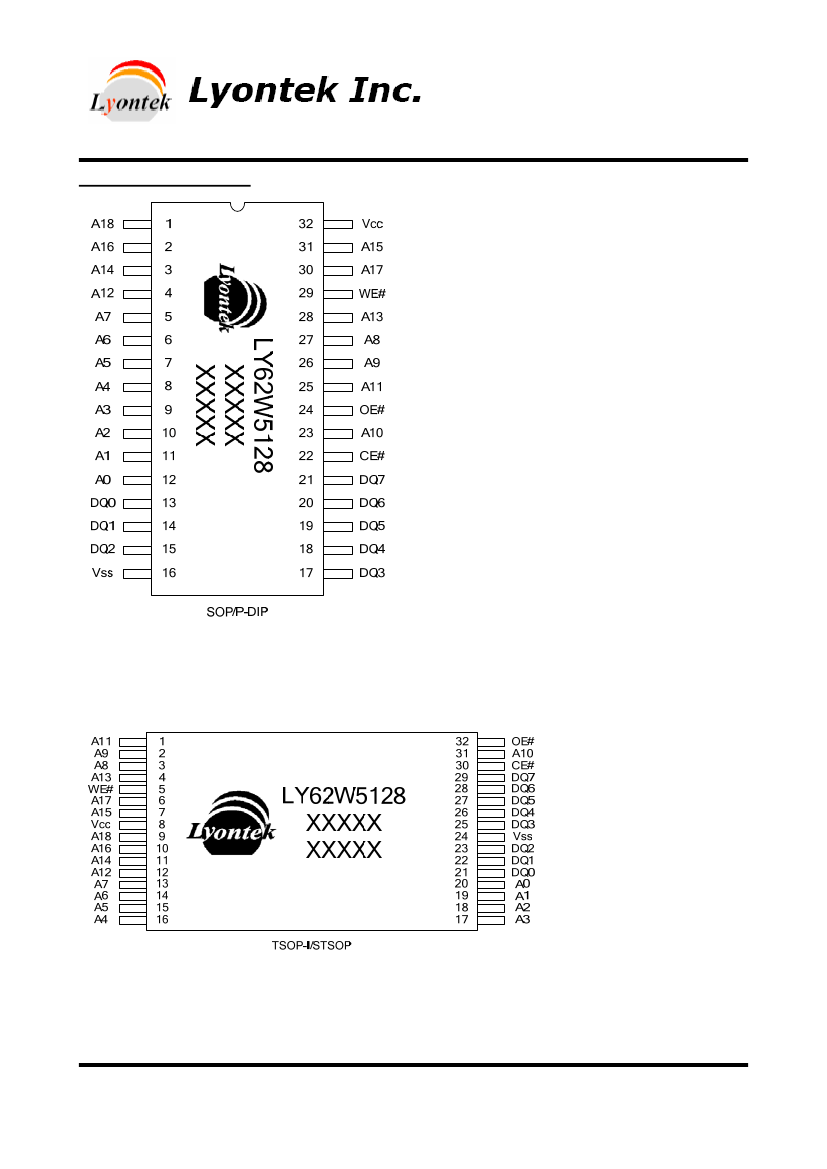

PIN CONFIGURATION
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
2
®
LY62W5128
Rev. 1.11
512K X 8 BIT LOW POWER CMOS SRAM
TFBGA(Top View)
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
3
®
LY62W5128
Rev. 1.11
512K X 8 BIT LOW POWER CMOS SRAM
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Voltage on V
CC
relative to V
SS
Voltage on any other pin relative to V
SS
Operating Temperature
Storage Temperature
Power Dissipation
DC Output Current
SYMBOL
V
T1
V
T2
T
A
T
STG
P
D
I
OUT
RATING
-0.5 to 6.5
-0.5 to V
CC
+0.5
0 to 70(C grade)
-40 to 85(I grade)
-65 to 150
1
50
UNIT
V
V
℃
℃
W
mA
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect device reliability.
TRUTH TABLE
MODE
Standby
Output Disable
Read
Write
Note:
CE#
H
L
L
L
OE#
X
H
L
X
WE#
X
H
H
L
I/O OPERATION
High-Z
High-Z
D
OUT
D
IN
SUPPLY CURRENT
I
SB1
I
CC
,I
CC1
I
CC
,I
CC1
I
CC
,I
CC1
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
SYMBOL
TEST CONDITION
MIN.
PARAMETER
Supply Voltage
V
CC
2.7
*1
Input High Voltage
V
IH
0.7*V
CC
*2
Input Low Voltage
V
IL
- 0.2
Input Leakage Current
I
LI
V
CC
≧
V
IN
≧
V
SS
-1
Output Leakage
V
CC
≧
V
OUT
≧
V
SS
,
I
LO
-1
Current
Output Disabled
Output High Voltage
V
OH
I
OH
= -1mA
2.4
Output Low Voltage
V
OL
I
OL
= 2mA
-
Cycle time = Min.
- 55
-
CE# = V
IL
and CE2 = V
IH
,
I
CC
I
I/O
= 0mA
- 70
-
Other pins at V
IL
or V
IH
Average Operating
Power supply Current
Cycle time = 1µs
CE#
≦
0.2V and CE2
≧
V
CC
-0.2V,,
I
CC1
-
I
I/O
= 0mA
Other pins at 0.2V or V
CC
-0.2V
LL/LLI
-
CE#
≧
V
CC
-0.2V
*5
-
25℃
Standby Power
SL
or CE2
≦
0.2V
I
SB1
*5
Supply Current
SLI
Others at 0.2V or
-
40℃
V
CC
- 0.2V
SL/SLI
-
TYP.
3.0
-
-
-
-
2.7
-
30
20
*4
MAX.
5.5
V
CC
+0.3
0.6
1
1
-
0.4
60
50
UNIT
V
V
V
µA
µA
V
V
mA
mA
4
4
3
3
3
10
50
10
10
25
mA
µA
µA
µA
µA
