This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

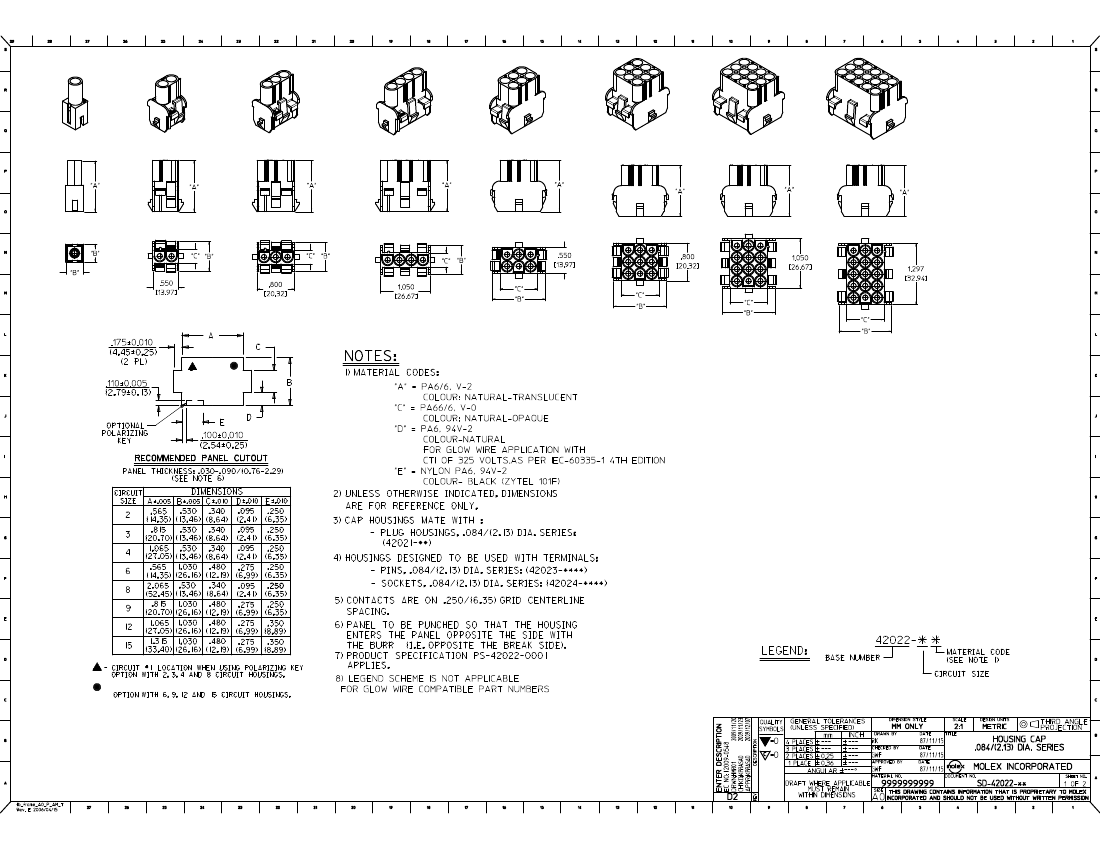

Drawing (PDF)
0366480024
Active
mlx
2.13mm (.084") Diameter MLX™ Pin and Socket Receptacle, 4 Circuits
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Housings
42022
mlx
MLX™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Overview
Product Name
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
4
4
Black
Female
No
None
Yes
Nylon
1
Carton
No
0.250 In
6.35 mm
Yes
No
-55°C to +105°C
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-42022-**
PS-42022-0001

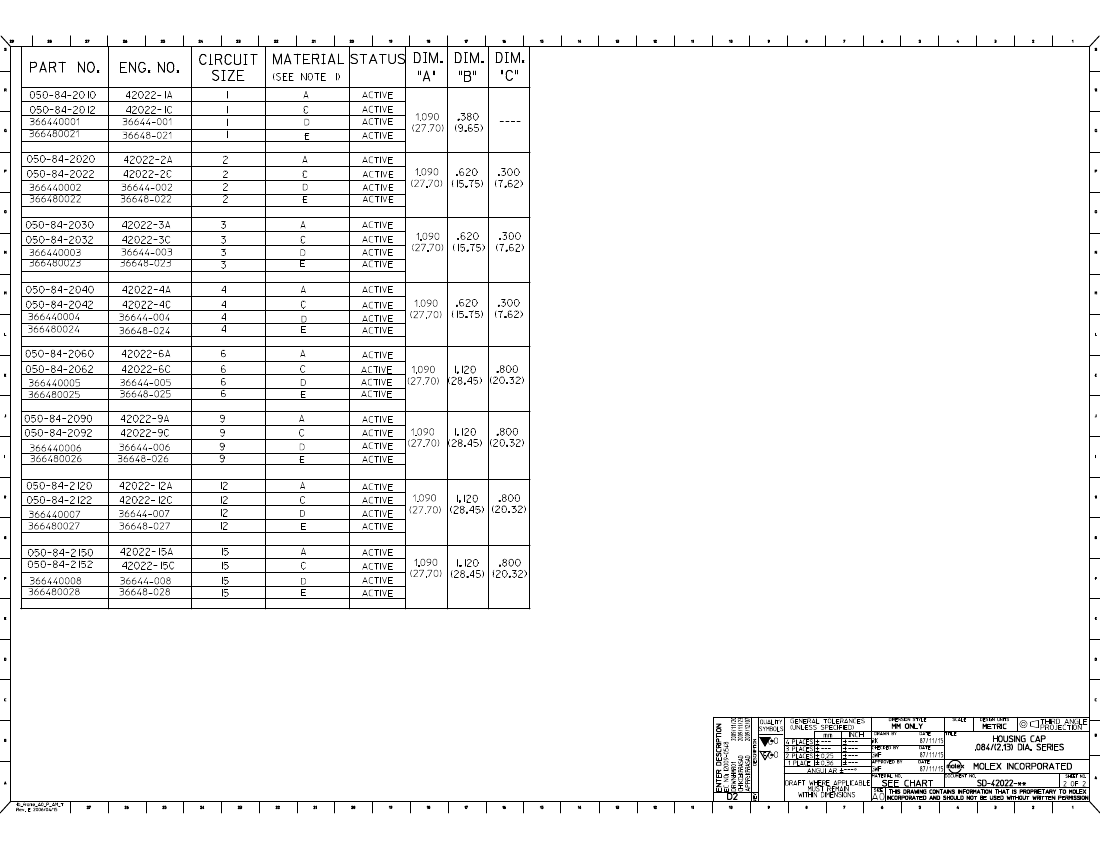

SD-42022-**
Search Parts in this Series
42022Series
Mates With
42021 MLX™ Power Crimp Housing Plug
Use With
MLX Crimp Terminal 42023 , 42024
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
