PWM CONTROLLER WITH
SUPERVISORY CIRCUIT FOR
SWITCHING POWER SUPPLY
DESCRIPTION
UTC
3521
PWM controller is designed for switching mode power
supply for PCs. It provides all the functions necessary to monitor and
control the output of the power supply. Remote ON/OFF control,
power good circuitry, some protection features against over-voltage
and over-power are implements.
CMOS IC
DIP-16
FEATURES
* Over-Voltage Protection for 3.3V, 5V and 12V
* Under-Voltage Detection for 3.3V, 5V and 12V
* Over-Power Protection
* Remote ON/OFF Function
* Power Good Circuitry
* Delay Time for PG Signal
* Delay Time for Over-Voltage and Under-Voltage Protection
* On-Chip Oscillator and Error Amplifier
ORDERING INFORMATION
Ordering Number
Lead Free Plating
Halogen Free
3521L-D16-T
3521G-D16-T
Package
DIP-16
Packing
Tube
3521L-D16-T
(1)Packing Type
(2)Package Type
(3)Lead Free
(1) T: Tube
(2) D16: DIP-16
(3) L: Lead Free, G: Halogen Free
www.unisonic.com.tw
Copyright © 2010 Unisonic Technologies Co., Ltd
1 of 6
QW-R502-034.D
3521
PIN CONFIGURATION
V33
V5
V12
PT
GND
CT
C1
C2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
ADJ
OPNEGIN
OPOUT
V
CC
DET
PG
TPG
REM
CMOS IC
PIN DESCRIPTION
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PIN NAME
V33
V5
V12
PT
GND
CT
C1
C2
REM
TPG
PG
DET
V
CC
OPOUT
OPNEGIN
V
ADJ
TYPE
I
I
I
I
P
O
O
I
O
I
P
O
I
I
FUNCTIONS
OVP/UVP Input For 3.3V
OVP/UVP Input For 5V
OVP/UVP Input For 12V
Additional OVP Protection
Ground
Cap FOR Osciilation Frequency
Output 1
Output 2
Remote ON/OFF Pin.
Power Good Delay Time Setting
Power Good Signal Out.
Power Good Signal Detection Input
Supply Voltage For IC
OP AMP Output
OP AMP Negative Input
Voltage Adjust Pin
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 6
QW-R502-034. D
3521

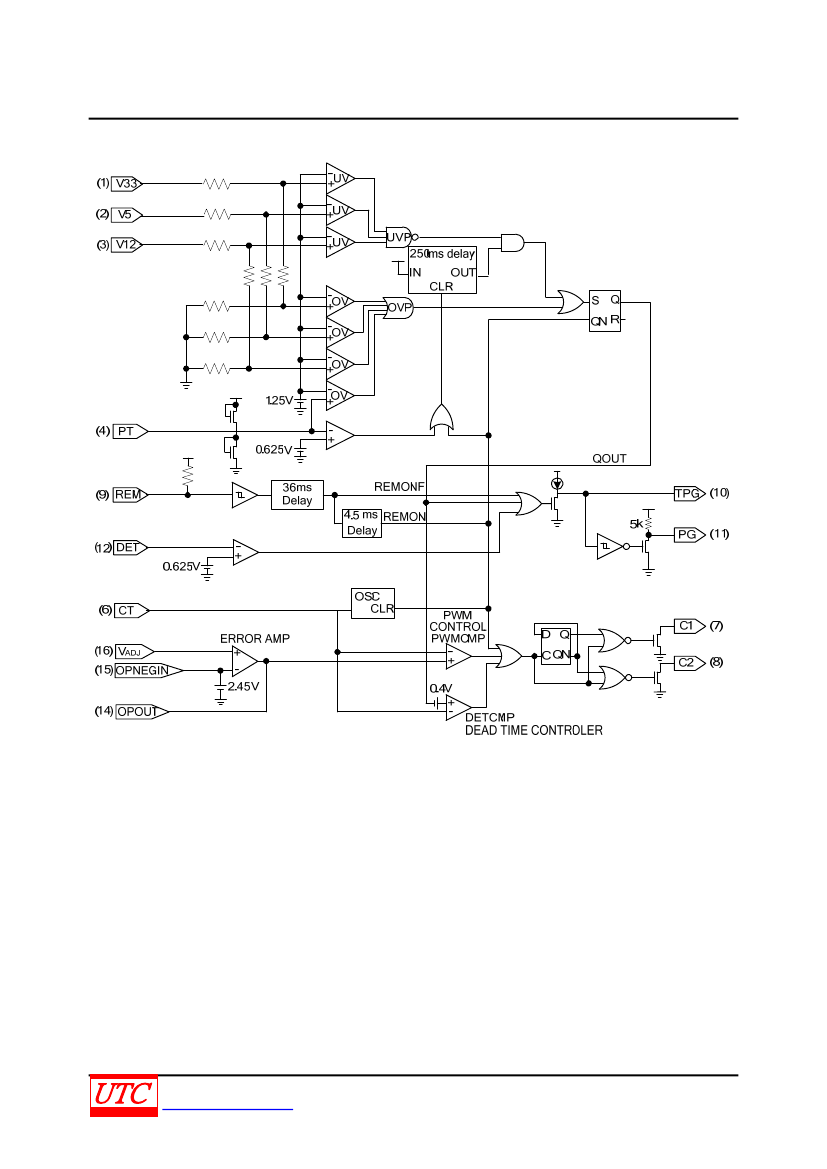

BLOCK DIAGRAM
