87835-2042 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87835-2042

87835-2042: Description2.54mm (.100) Pitch C-GridÂ® Header, Right Angle, Through Hole, Dual Row, Low Profile, Shrouded, 20 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating; CategoryThe connector The connector; File Size108KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87835-2042 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87835-2042	-	-	View	Buy Now

87835-2042 Overview

2.54mm (.100) Pitch C-GridÂ® Header, Right Angle, Through Hole, Dual Row, Low Profile, Shrouded, 20 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating

87835-2042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87835
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

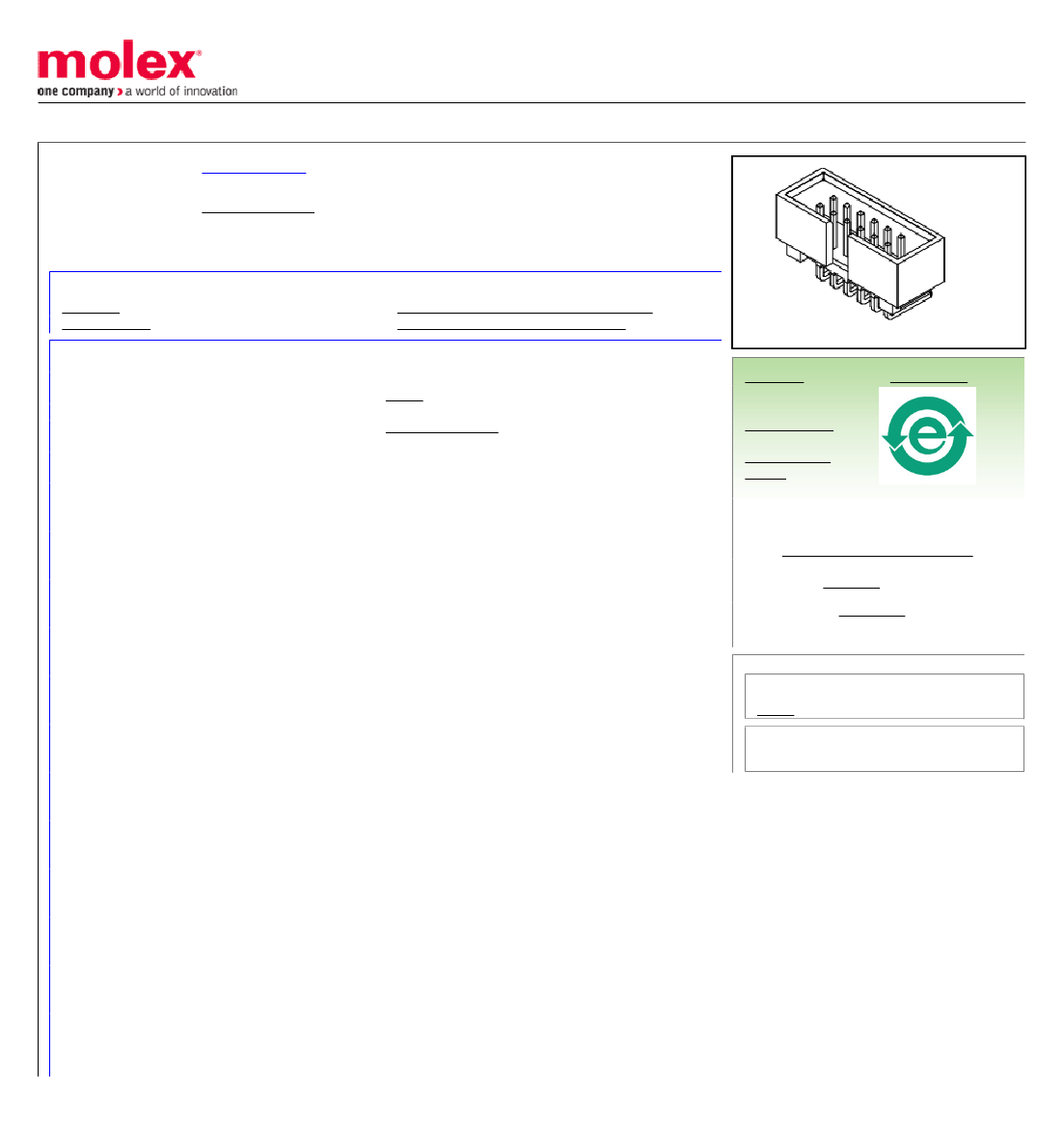

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878352042

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® Header, Right Angle, Through Hole, Dual Row, Low

Profile, Shrouded, 20 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating, Center

Polarization Slot, with Two End Slots, Lead-free

Documents:

3D Model

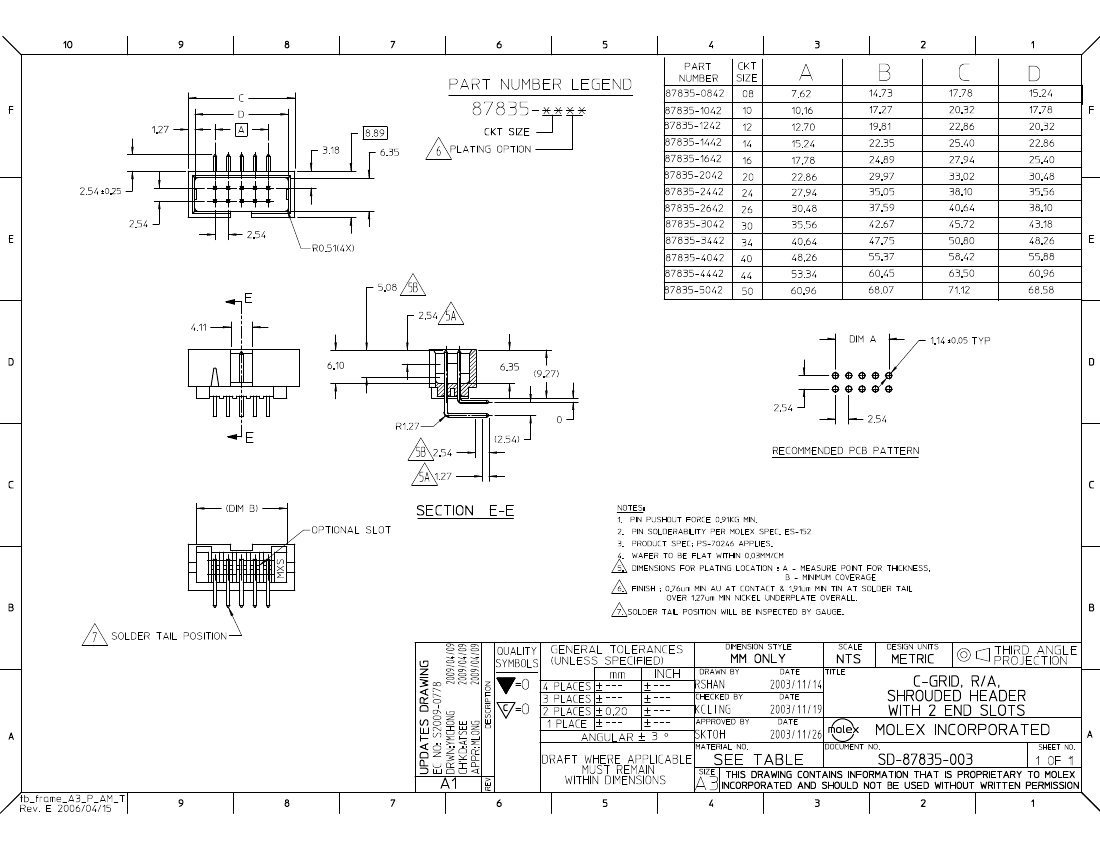

Drawing (PDF)

Product Specification PS-70246-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87835

Wire-to-Board

cgrid__sl_products

C-Grid®

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

None

Gold

Tin

Nylon

Right Angle

0.100 In

2.54 mm

None

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.75

75.2

1.88

Center Slot

Fully

Yes

-55°C to +120°C

Through Hole

Search Parts in this Series

87835Series

Mates With

.050" pitch ribbon cable connectors

Electrical

87835-2042 Related Products

	87835-2042	0878352042
Description	2.54mm (.100) Pitch C-GridÂ® Header, Right Angle, Through Hole, Dual Row, Low Profile, Shrouded, 20 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating	2.54mm (.100) Pitch C-GridÂ® Header, Right Angle, Through Hole, Dual Row, Low Profile, Shrouded, 20 Circuits, 0.76Î¼m (30Î¼) Gold (Au) Selective Plating
