China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
6MHz Bandwidth
Part Number: LBS14021
www.sipatsaw.com
SIPAT Co., Ltd.
Features
For IF SAW filter
High attenuation
Single-ended operation
Dual In-line Package
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
50 dB Bandwidth
Passband Variation
Phase Linearity(f0±MHz)
Group Delay Variation(f0±MHz)
Absolute Delay
Ultimate Rejection
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
DC Voltage
Input Power
ESD Class
Package Size
Notes:
1.
2.
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
deg
nsec
usec
dB
KHz/°C
-
°C
°C
°C
V
dBm
-
Minimum
139.8
-
5.6
6
-
-
-
-
-
-
50
Typical
140
26.3
5.8
6.21
7.8
8.05
0.6
4
30
1.92
51
0.14
Qz
25
Maximum
140.2
28
-
-
8.4
9
1
-
110
-
-
-40
-45
-
-
0
+85
+105
-
-
1A
10
DIP2212 (22.2x12.8x4.7mm3)
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBS14021
2009-02-13
1.1
Page
1/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
6MHz Bandwidth
Part Number: LBS14021
www.sipatsaw.com
SIPAT Co., Ltd.

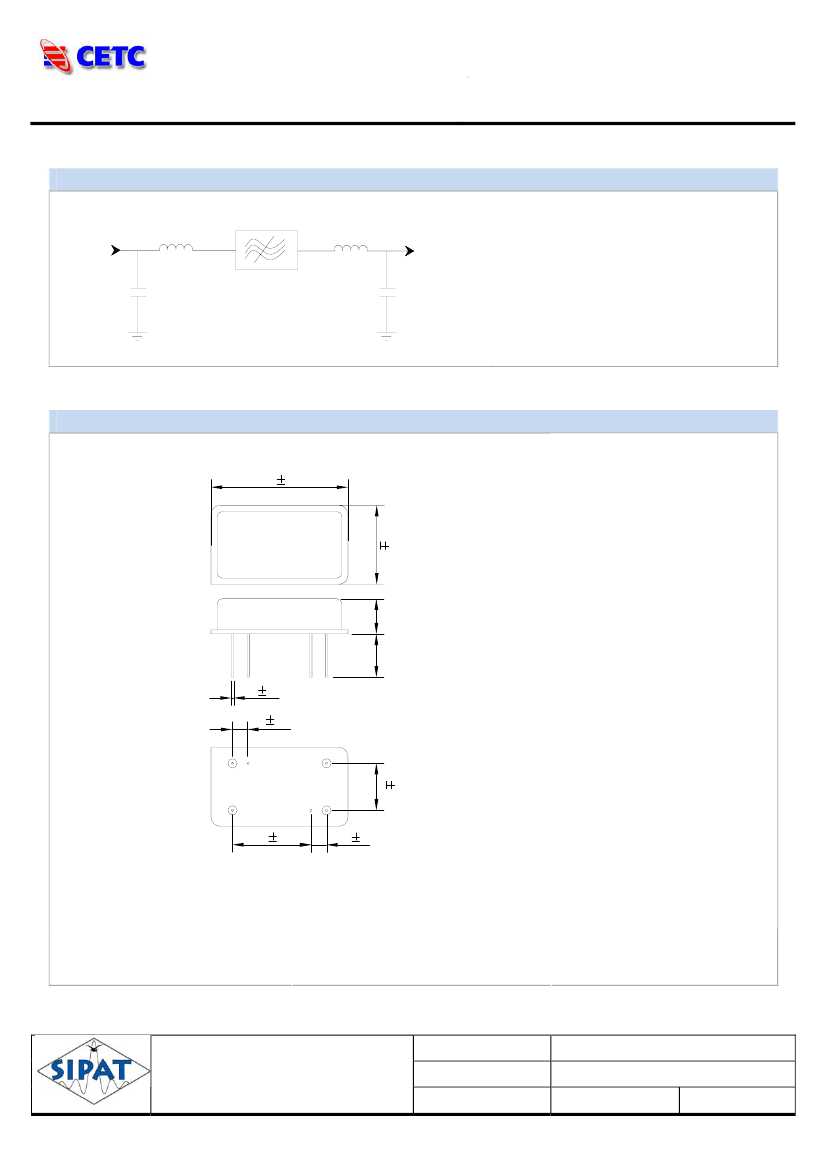

Matching Configuration
L1
L2
L1=(150+27)nH
OUTPUT
50
Ω
C2
L2=180nH
INPUT
50
Ω
C1
C1=18pF
C2=22pF
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
Package Dimension
22.20 0.50
12.80 0.50
SIPAT
LBS14021
XXYYZZ
Pad Configuration:
Input
Output
1
5
Ground All Others
4.70
4.50
Marking Configuration:
1) SIPAT: Manufacturer Name
2) LBS14021: Part Number
3) XXYY: Date(Year/month)
4) ZZ: Identified Code
0.45 0.05
2.54 0.20
7.62 0.20
3
Package: DIP2212
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
2
1
4
5
6
12.70 0.20
2.54 0.20
Unit: mm
Part Number
Rev. Date
Ver.
LBS14021
2009-02-13
1.1
Page
2/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
140MHz SAW Filter
6MHz Bandwidth
Part Number: LBS14021
www.sipatsaw.com
SIPAT Co., Ltd.

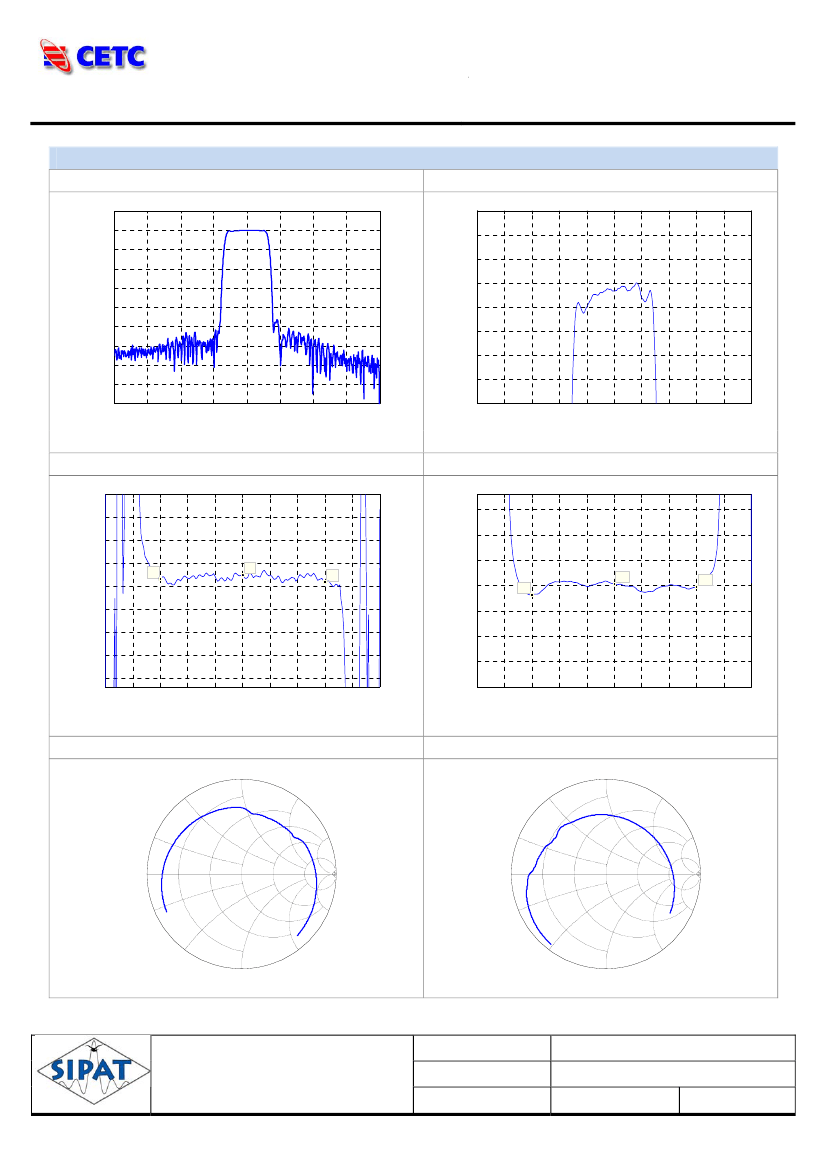

Typical Performance
Frequency Respond
Type Performance
-16.3308
-26.3308
-36.3308
-25.8308
-24.8308
Passband Respond
Type Performance
-25.3308
-46.3308
Magnitude(dB)
A m plitude ripple(dB )
-56.3308
-66.3308
-76.3308
-86.3308
-26.3308
-26.8308
-27.3308
-27.8308
-96.3308
-106.3308
-116.3308
120
-28.3308
125
130
135
140
145
Frequency(MHz)
150
155
160
-28.8308
130
132
134
136
138
140
Frequency(MHz)
142
144
146
148
150
Horizontal: 5MHz/Div
Vertical: 10dB/Div
Horizontal: 2MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±3MHz)
Type Performance
2100
Phase Linearity(f0±3MHz)
Type Performance
15
2050
10
2000
1950
G roup Delay T im e(ns )
X: 137
Y: 1915
5
X: 140
Y: 1925
X: 143
Y: 1908
X: 140
Y: 0.2956
X: 143
Y: -0.2172
D egree(deg)
1900
0
X: 137
Y: -1.807
1850
-5
1800
-10
1750
-15
1700
135
136
137
138
139
140
Frequency(MHz)
141
142
143
144
145
-20
135
136
137
138
139
140
Frequency(MHz)
141
142
143
144
145
Horizontal: 1MHz/Div
Vertical: 50ns/Div
Horizontal: 1MHz/Div
Vertical: 5deg/Div
Smith Chart S11
+j1.0
+j0.5
+j2.0
Smith Chart S22
+j1.0
+j0.5
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
5.0
0.2
0.5
1.0
2.0
0.0
∞
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBS14021
2009-02-13
1.1
Page
3/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
