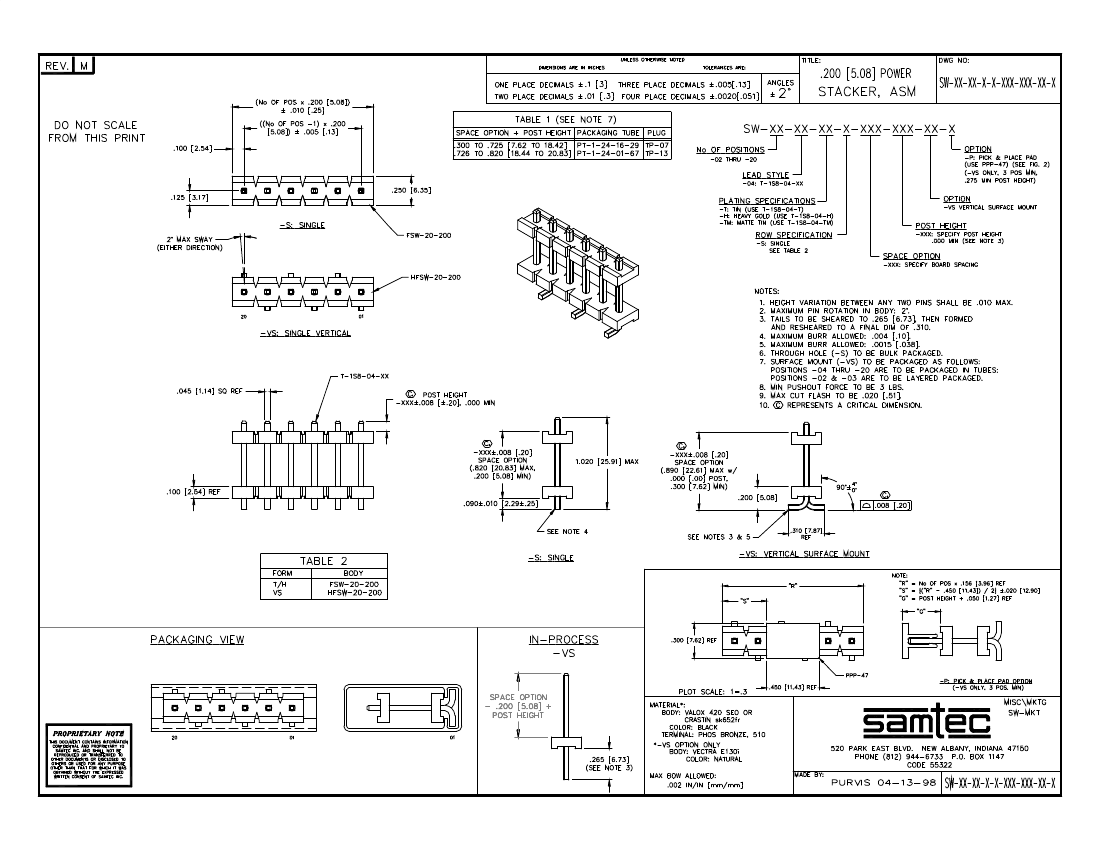

SW-05-04-T-S-238-426 datasheet, PDF

SW-05-04-T-S-238-426: DescriptionBoard Connector, 5 Contact(s), Male, Straight, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SW-05-04-T-S-238-426 Overview

Board Connector, 5 Contact(s), Male, Straight, Solder Terminal, Black Insulator

Parameter Name	Attribute value
Objectid	311705879
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.25 inch
subject depth	0.238 inch
body length	1 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P5
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact style	SQ PIN-SKT
Insulator color	BLACK
Manufacturer's serial number	SW
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Termination type	SOLDER
Total number of contacts	5
