Most cost effective than Quartz oscillators, Quartz crystals
and Clock ICs.
• completely quartz-free
Applications
• Automotive
• Industrial
• Automation
• Space
• Satellite

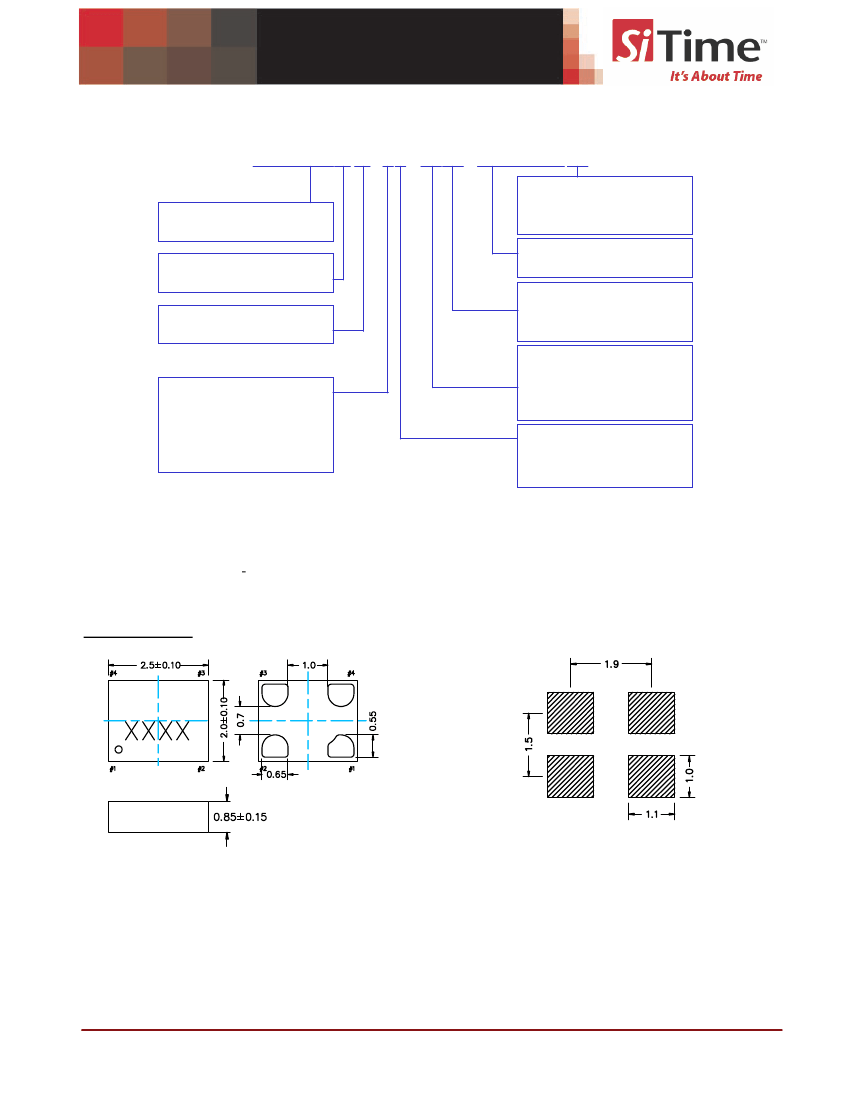

• 7.0 x 5.0 x 0.85 mm
• All packages are Pb-free and ROHs compliant (QFN SMD)
• Ultra-reliable start up and greater immunity from interfer-
ence
• High drive option: 30pF load (contact factory)
Block Diagram
VDD
OUT
Pinout
M EM S
R esonator
Frequen cy
S ynthesizer
GND
2
SiT8002
ST/OE
1
4
VDD
3
OUT
ST/O E
GND
Pin Description
Pin No. Name
1
2
3
4
ST/OE
GND
OUT
VDD
Pin Description
Standby/ Output Enable
Connect to Ground
1 to 125 MHz Programmed Clock output
Connect to 1.8V or 2.5V or 3.3V
Pin1
Pin #1 Functionality
OE
H or Open; specified frequency output
L: output is high impedance
ST
H or Open; specified frequency output
L: output is low level (weak pull down) oscillation stops
SiTime Corporation
Rev. 1.01
990 Almanor Avenue, Suite 200
Sunnyvale, CA 94085
(408) 328-4400
www.sitime.com
Revised Oct 26, 2010
SiT8002AA
Description
The SiT8002AA oscillator family is composed of the world’s
smallest, high-performance programmable oscillators. The
SiT8002AA is suitable for use in clock generation for
automotive, industrial, and space/Satellite applications.
MEMS resonators are 1000x smaller by volume than quartz
resonators and are built in high volume CMOS fabs instead of
small custom manufacturing facilities. Due to their small size,
massive lot sizes, and simpler manufacturing processes
MEMS oscillators are inherently more reliable, have more
consistent performance and are always in stock.
The SiT8002AA, by eliminating the quartz crystals, has
improved immunity to the environmental effects of vibration,
shock, strain, and humidity.
Absolute Maximum Ratings
Attempted operation outside the absolute maximum ratings of the part may cause permanent damage to the part. Actual
performance of the IC is only guaranteed within the operational specifications not absolute maximum ratings.
Ab
solute Maximum Table
Parameter
Storage Temperature
VDD
Electrostatic Discharge
Theta JA ( with copper plane on VDD and GND)
Theta JC (with PCB traces of 0.010 inch to all pins)
Soldering Temperature (follow standard Pb free soldering guidelines)
Number of Program Writes
Program Retention over -40 to 125C, Process, VDD (0 to 3.6V)
–
–
Min.
-65
-0.5
Max.
150
+3.65
6000
75
24
260
1
1,000+
Unit
°
C
V
V
°
C/W
°
C/W
°
C
NA
years
Operating Conditions
Parameter
Supply Voltages,
VDD
[1]
Min.
2.97
2.25
1.7
Automotive OperatingTemperature
Maximum Load Capacitance
[2]
VDD Ramp Time
-40
-
0
Typ.
3.3
2.5
1.8
-
-
-
Max.
3.63
2.75
1.9
125
15
200
Unit
V
V
V
°
C
pF
ms
Environmental Compliance
Parameter
Mechanical Shock
Mechanical Vibration
Temperature Cycle
Solderability
Moisture Sensibility Level
Condition/Test Method
MIL-STD-883F, Method 2002, 50 KG
MIL-STD-883F, Method 2007, 70 G
JESD22, Method A104
MIL-STD-883F, Method 2003
MSL1
Notes:
1. The 2.5V device can operate from 2.25V to 3.63V with higher output drive, however, the data sheet parameters cannot be guaranteed. Please contact factory for
this option.
2. The output driver strenght can be programmed to drive up to 30pF load. Please contact factory for this option.
