Features
Fast Switching Speed
and Low Turn-on Voltage
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
Compliant. See ordering information)
Small Signal
Schottky Diode
Mechanical Data
Case: Minimelf, Glass
Terminals: Solderable per MIL-STD-202, Method 208
Polarity: Indicated by Cathode Band
Weight: 0.05 grams ( approx.)
Cathode Mark
MINIMELF
Maximum Ratings @ 25
o
C Unless Otherwise Specified
Characteristic
Peak Reverse Voltage
Forward Continuous Current(Note2)
Surge Forward Current @ t
p
< 10ms,
T
A
=25
o
C
Power Dissipation(Note
2)
Thermal Resistance(Note
2)
Operation Temperature Range
Storage Temperature Range
Symbol
V
RRM
I
F
I
FSM
P
tot
R
q
JA
Value
30
200
4.0
200
250
-65 to 150
-65 to 150
Unit
V
mA
A
A
B
C
mW
K/W
o
o
DIMENSION
T
A
T
STG
C
C
DIM
INCHES
MM
NOTE
MAX
MIN
MAX
MIN
Note
: 1.
Lead in Glass Exemption Applied, see EU Directive Annex 5.
2. Valid provided that electrodes are kept at ambient temperature.
A
B
.130
.008
.146
.016
3.30
0.20
3.70
0.40
C
.055
.059
1.40
1.50
SUGGESTED SOLDER
PAD LAYOUT
0.105
0.075”
0.030”
www.mccsemi.com
1 of 4
Revision:
A
2011/01/01
LL42, LL43
MCC
Micro Commercial Components
TM
T
a
– Ambient temperature (
)
V
F
– Instantaneous forward voltage (mV)

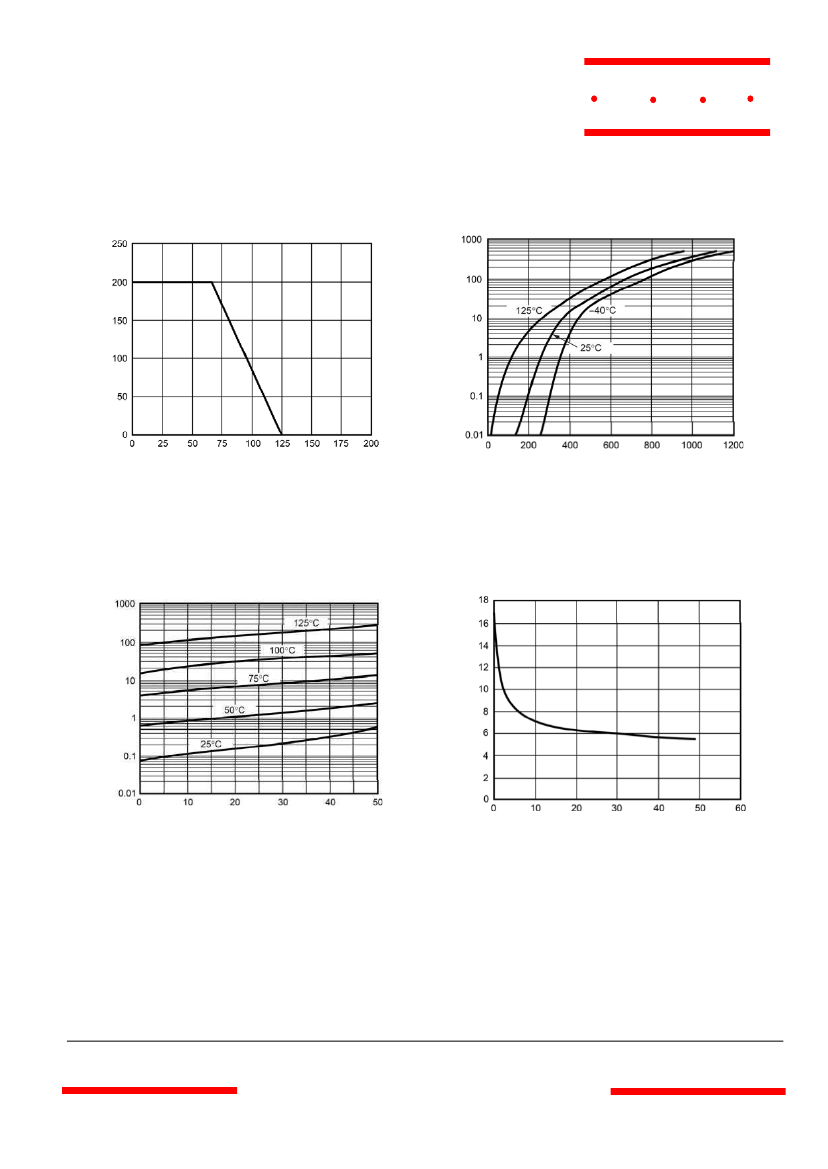

Figure 1. Admissible power dissipation
vs. Ambient temperature
Figure 2. Typical reverse characteristics
V
R
– Reverse voltage (V)
V
R
– Reverse voltage (V)
Figure 3. Typical reverse characteristics
Figure 4. Typical capacitance vs. reverse
applied voltage
www.mccsemi.com
3 of 4
Revision:
A
2011/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Packing
Tape&Reel:
2.5Kpcs/Reel
