Datasheet of 1.00 inch Single Digit 16 Segment LED Display
LD10017A/B Series - 1.00 inch Single Digit 16 Segment LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
25.40 mm (1.00 inch) digit high
Excellent digit appearance
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White segment, black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative face and segment color
Alternative font
Both CA and CC versions are available
Cropped terminal pins

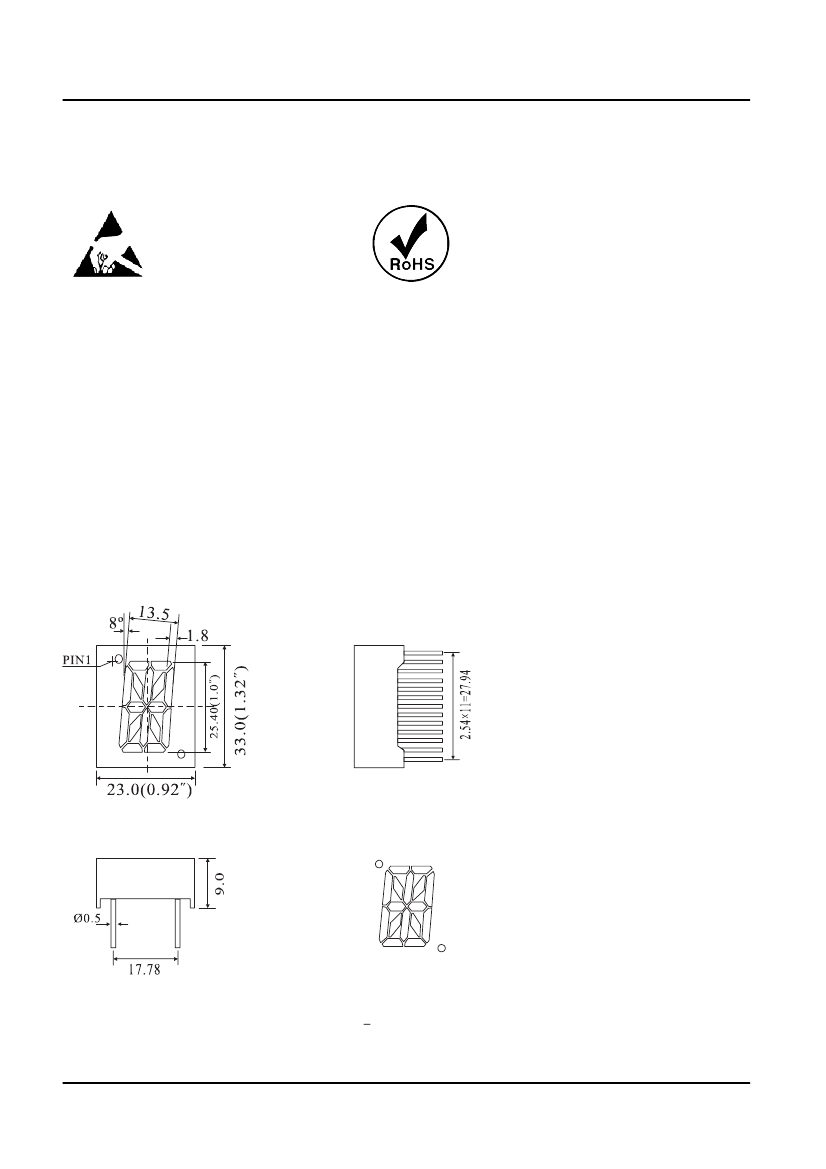

Package Dimensions
DP2
A1 A 2
H
G1
F
I
J
G2
B
C
DP1
E
M
L
K
D1 D2
Notes:
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121738
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey

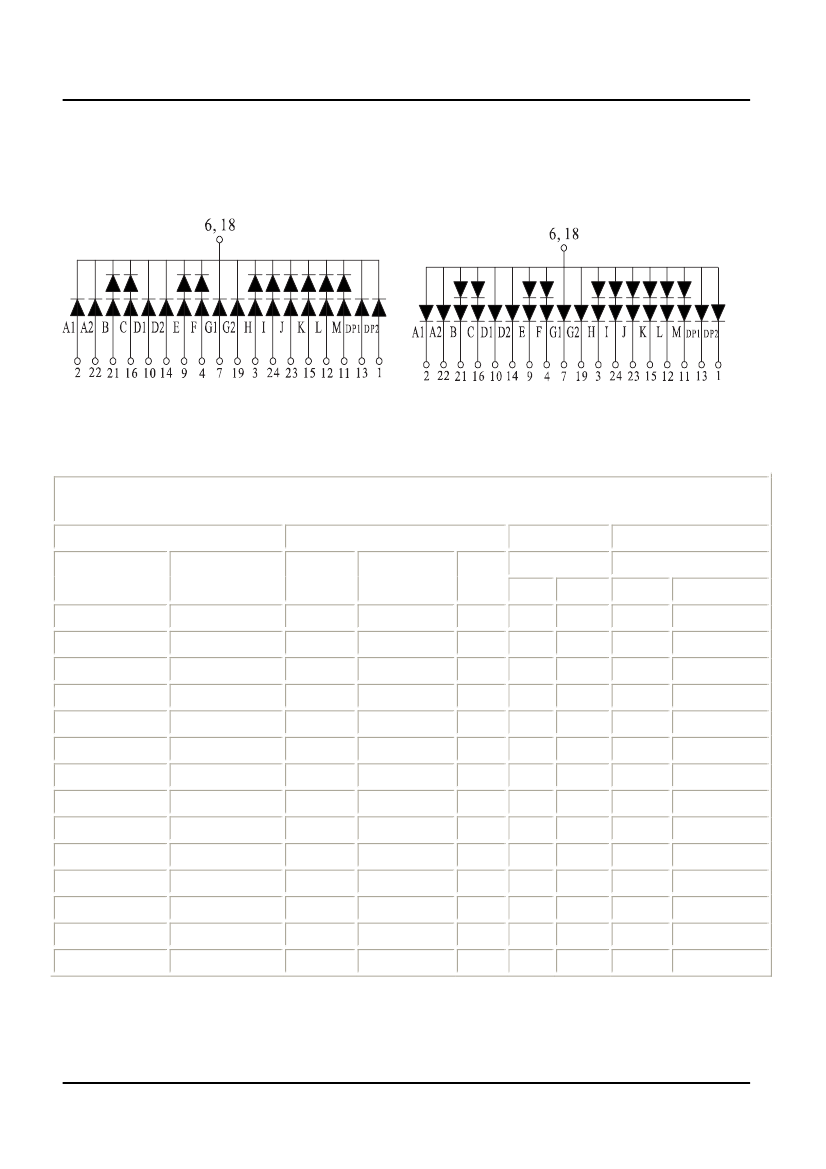

Internal Circuit Diagram
LD10017A (Common Cathode)
Datasheet of 1.00 inch Single Digit 16 Segment LED Display
LD10017B (Common Anode)
5, 8, 17& 20 NO PIN
5, 8, 17& 20 NO PI N
Selection Guide
Single Digit 16 Segment LED Display, Digit Height:25.40mm(1.00 inch), External Dimensions:
23.00x33.00x9.00mm (L x W x H )
Part No.
Common
Cathode
LD10017AR
LD10017AD
LD10017AO
LD10017AY
LD10017AG
LD10017AUR
LD10017AUO
LD10017AUA
LD10017AUY
LD10017AUG
LD10017APG
LD10017AUB
LD10017AUW
Unit:
Common
Anode
LD10017BR
LD10017BD
LD10017BO
LD10017BY
LD10017BG
LD10017BUR
LD10017BUO
LD10017BUA
LD10017BUY
LD10017BUG
LD10017BPG
LD10017BUB
LD10017BUW
\
Material
GaAlAs
GaAlAs
GaAsP
GaAsP
GaP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
SMD
\
Chip
Color
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
\
WLD
640
640
625
588
568
640
625
605
595
573
525
470
\
nm
I
V
@I
F
=20mA
One Seg
Min.
12
27
10.5
12
10.5
45
67.5
45
45
45
180
45
150
mcd
Typ.
15
37.5
13.5
15
13.5
67.5
90
67.5
67.5
67.5
450
67.5
180
mcd
I
V
@I
F
=20mA
One Seg A D G or DP
Min.
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
SPEC NO: DS10121738
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 2/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Parameter
Datasheet of 1.00 inch Single Digit 16 Segment LED Display
Electrical Characteristics & Absolute Maximum Ratings
Electrical optical
Characteristics
Forward
Emitted color
Voltage
@ IF=20mA
Typ.
Super Red
Per Seg.
Per DP
Hi-Red
Per Seg.
Per DP
Orange
Per Seg.
Per DP
Yellow
Per Seg.
Per DP
Green
Per Seg.
Per DP
Ultra Red
Per Seg.
Per DP
Ultra Orange
Per Seg.
Per DP
Ultra Amber
Per Seg.
Per DP
Ultra Yellow
Per Seg.
Per DP
Ultra Green
Per Seg.
Per DP
Pure Green
Per Seg.
Per DP
Ultra Blue
Per Seg.
Per DP
Ultra White
Unit:
Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
[1]
Absolute Maximum Ratings
[1]
Reverse
Current
VR=5V
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
uA
Power
Dissipation
DC
Forward
Current
25
25
25
25
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
mA
Peak
Forward
Current
[2]
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
mA
Max.
2.2
2.2
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
4
4
4
4
4
4
V
60
60
60
60
80
80
80
80
80
80
60
60
65
65
65
65
65
65
75
75
110
110
120
120
120
120
mW
1.8
1.8
1.8
1.8
2.1
2.1
2.1
2.1
2.2
2.2
1.9
1.9
2
2
2
2
2
2
2.1
2.1
3.5
3.5
3.5
3.5
3.5
3.5
V
Per Seg.
Per DP
\
SPEC NO: DS10121738
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 3/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
