HIGH TEMPERATURE OSCILLATOR
Leaded High Temperature/High Shock
LHTAT
DESCRIPTION
320 kHz - 50 MHz
An increasing number of high temperature applications
require the use of leaded (through hole) ceramic packaged
oscillators. For these applications, Statek offers the LHTAT
5x7mm oscillator. These oscillators are designed to operate
at temperatures up to 200ºC with high shock survivability.
FEATURES
High temperature operation up to 200
O
C
Excellent stability over temperature
High shock resistance
CMOS output
Optional output enable/disable
Hermetically sealed ceramic package - 5x7mm
Through-hole leaded package
Reduces mechanical and thermal mounting stresses
Robust lead attach-eutectic brazing process
Gold Plated Kovar Leads
APPLICATIONS
PIN CONNECTIONS
1.
2.
3.
4.
Enable/Disable (E) or No Connection (N)
Ground
Output
V
DD
DIMENSIONS
TYPICAL
DIM
A
B
C
D
E
F
G
H
I
J
inches
0.276
0.197
0.065
0.200
0.195
0.200
0.040
0.160
0.028
0.018
mm
7.00
5.00
1.65
5.08
4.90
5.08
1.02
4.06
0.71
0.46
MAX
inches
.281
.202
.070
.205
.205
.205
mm
7.14
5.13
1.78
5.20
5.20
5.20
Industrial
Downhole instrumentation
Rotary shaft sensors
Underground boring tools
Avionics applications

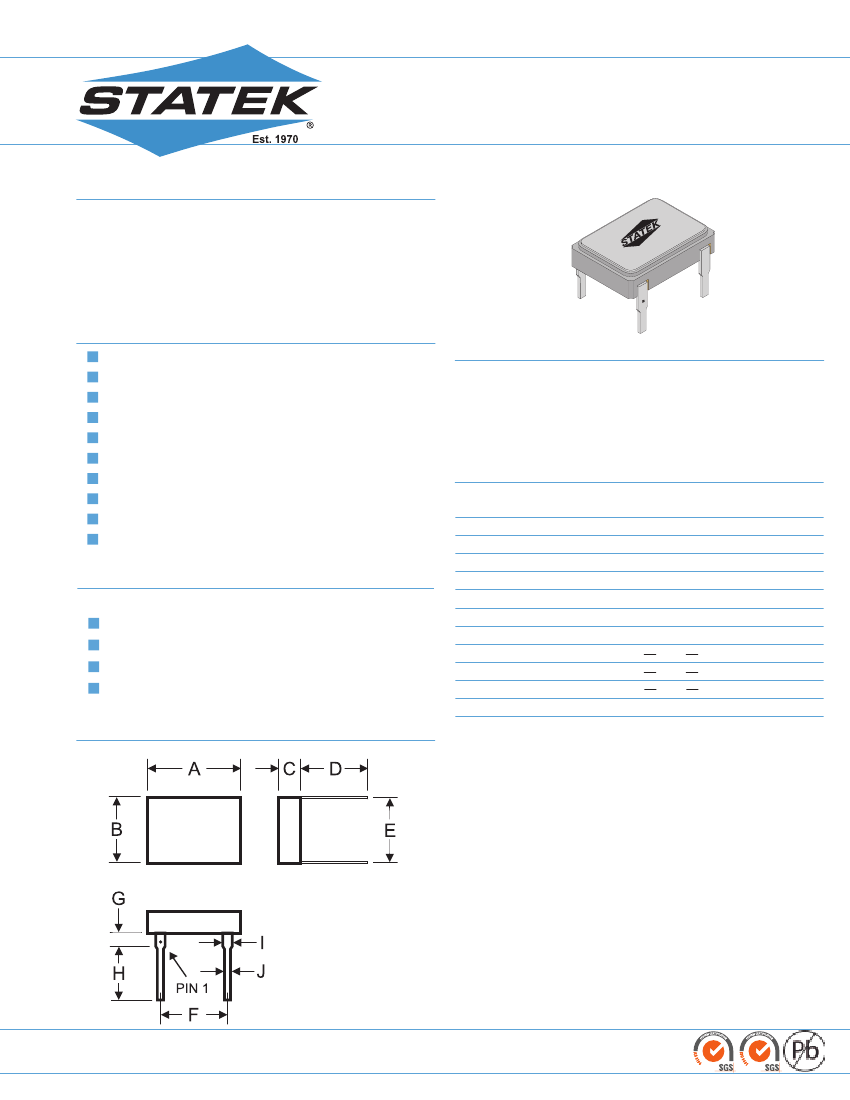

PACKAGE DIMENSIONS LHTAT
0.021
0.53
Lead Thickness: 0.008 ±0.001 (0.20mm ±0.03)
Lead Plating: Gold/Nickel over Kovar
LHTAT 10204 Rev B
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
O
Specifications are typical at 25 C unless otherwise noted.
Specifications are subject to change without notice. Tighter
specifications available. Please contact factory.
Supply Voltage
1
Calibration Tolerance
Frequency Stability
Over Temperature
Total Tolerance
2
Supply Current (Typical)
24 MHz
32 MHz
50 MHz
Output Load (CMOS)
Start-up Time
Rise/Fall Time
Duty Cycle
Aging, first year
Aging
Shock, survival
3
3.3 V ± 10%
± 50 ppm, or tighter as required
± 100 ppm for 25
O
C to 150
O
C
± 150 ppm for 25
O
C to 175
O
C
± 175 ppm for 25
O
C to 200
O
C
± 200 ppm for 25
O
C to 200
O
C
3.3 V
3.0 mA
5.0 mA
6.0 mA
Supply Voltage V
DD
Storage Temperature
Maximum Process Temperature
-0.5 V to 4.0 V
-55
O
C to 125
O
C
260ºC for 20 seconds
ENABLE/DISABLE OPTIONS (E/N)
Statek offers two enable/disable options: E and N. The E-
version has a Tri-State output and stops oscillating internally
when the output is put into the high Z state. The N-version
does not have PIN 1 connected internally and so has no
enable/disable capability. The following table describes the
Enable/Disable option E.
ENABLE/DISABLE OPTION E
FUNCTION TABLE
15 pF
5 ms MAX
10 ns MAX
40% MIN, 60% MAX
5 ppm MAX at 25
O
C
100 ppm MAX at 200
O
C
Std: 5,000 g, 0.5 ms,
1
/
2
sine
HG: up to 30,000 g, 0.5 ms,
1
/
2
sine
Vibration, survival
4
20 g, 10-2,000 Hz swept sine
Operating Temp Range
5
-55
O
C up to 200
O
C
Enable (Pin 1 High*) Disable (Pin 1 Low)
Output
Oscillator
Current
Frequency Output
Oscillates
Normal
High Z State
Stops
Very Low
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
1. All frequencies, voltages, temperature ranges and enable/disable options may not be
available. Contact factory.
2. Total Tolerance = Calibration Tolerance + Frequency Stability over temperature.
3. Shock survival applies at -55ºC to +125ºC.
4. Per MIL-STD-202G, Method 204D, Condition D. Random vibration testing available.
Note: All parameters are measured at ambient temperature with a 10 MΩ, 15 pF load.
5. Expected life at 200ºC is in excess of 1,500 hours.
PACKAGING OPTIONS
LHTAT - Tube Pack (Standard)
HOW TO ORDER LHTAT OSCILLATORS
LHTAT
4
Supply Voltage
4 = 3.3 V
A
“S” if special or
custom design.
Blank if Std.
E
Enable/Disable
Option E or N
05
Terminations
Blank = Gold Plated
05
= Solder Dipped
(Lead Free)
20.0M
Frequency
M = MHz
K = kHz
,
Calibration
Tolerance
@ 25
0
C
(in ppm)
/
/
200
/
H
Temp. Range:
H = 25
0
C to 200
0
C
S = Customer
Specified Temp.
Range
Total Frequency
Tolerance (in
ppm)
Frequency
Stability over
Temp. Range
(in ppm)
Shock Level
A = 5,000 g
B = 10,000 g
C = 20,000 g
D = 30,000 g
OR
50
Calibration
Tolerance
@ 25
0
C
(in ppm)
/
175
/
Total
Frequency
Tolerance
(in ppm)
/
H
Temp. Range:
H = 25
0
C to 200
0
C
S = Customer
Specified Temp.
Range
LHTAT 10204 Rev B
Frequency
Stability over
Temp. Range
(in ppm)
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
