SAW Components
SAW IF filter
Data Sheet
Application
s
Low-loss IF filter for LTE base station
s
Usable passband 20.0 MHz
s
Unbalanced or balanced operation
B5204
164.0 MHz
Features
Package size 7.0 x 5.0 x 1.33 mm
3
Package code QCC12E
RoHS compatible
Approximate weight 0.25 g
Ceramic Package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
Electrostatic Sensitive Device
(ESD)
s
Filter surface passivated
s
s
s
s
s
Pin configuration
s
s
s
s
s
s
10
12
4
6
2, 3, 8, 9
1, 5, 7, 11
Input
Input ground or balanced input
Output
Output ground or balanced output
To be grounded
Case ground
10
4
12
6
1,5,7,11
Please read
cautions and warnings and
important notes
at the end of this document.
2
November 17, 2009
SAW Components
SAW IF filter
Data Sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50
Ω
and matching network
Z
L
=
50
Ω
and matching network
min.
Nominal frequency
Minimum insertion attenuation
(including matching network)
Passband width
α
rel
≤
1.0 dB
Amplitude ripple
(p-p)
f
N
±
10.0 MHz
Phase ripple
(rms)
f
N
±
10.0 MHz
Group delay ripple
(p-p)
f
N
±
10.0 MHz
Absolute group delay
(mean)
f
N
±
10.0 MHz
Average Error Vector Magnitude
f
N, WCDMA
(k)
1)
±
1.92MHz
Input IP3
Relative attenuation
(relative to
α
min
)
10 MHz ... 123 MHz
194 MHz ...
1 GHz
Temperature coefficient of frequency
1)
f
N, WCDMA
(k) = 156.5MHz + k∗5MHz;
α
rel
40
40
TC
f
k = (0,1,2,3)
—
65
50
–87
—
—
—
B
1.0dB
∆α
—
∆ϕ
rms
—
∆τ
—
τ
—
EVM
—
40
1.0
—
4.0
—
0.5
—
15
50
0.5
2.0
0.2
1.0
20.0
23.8
—
f
N
α
min
—
—
typ.
@ 25 ˚C
164.0
7.5
max.
—
9.0
B5204
164.0 MHz
MHz
dB
MHz
dB
°
ns
µs
%
dBm
dB
dB
ppm/K
Please read
cautions and warnings and
important notes
at the end of this document.
3
November 17, 2009
SAW Components
SAW IF filter
Data Sheet
Matching network to 50
Ω
B5204
164.0 MHz
Ls2
Ls3
L
p1
= 33 nH
L
s2
= 33 nH
Lp1
Lp4
L
s3
= 22 nH
L
p4
= 33 nH
Element values depend upon board layout and properties.
Maximum ratings
Operable temperature range T
Storage temperature range
DC voltage
Input power
Input power
Input power (peak)
T
stg
V
DC
P
IN
P
IN
P
IN
–40/+85
–40/+85
0
15
21
22
˚C
˚C
V
dBm
dBm
dBm
lifetime-test ongoing
for 2 minutes
Please read
cautions and warnings and
important notes
at the end of this document.
4
November 17, 2009
SAW Components
SAW IF filter
Data Sheet

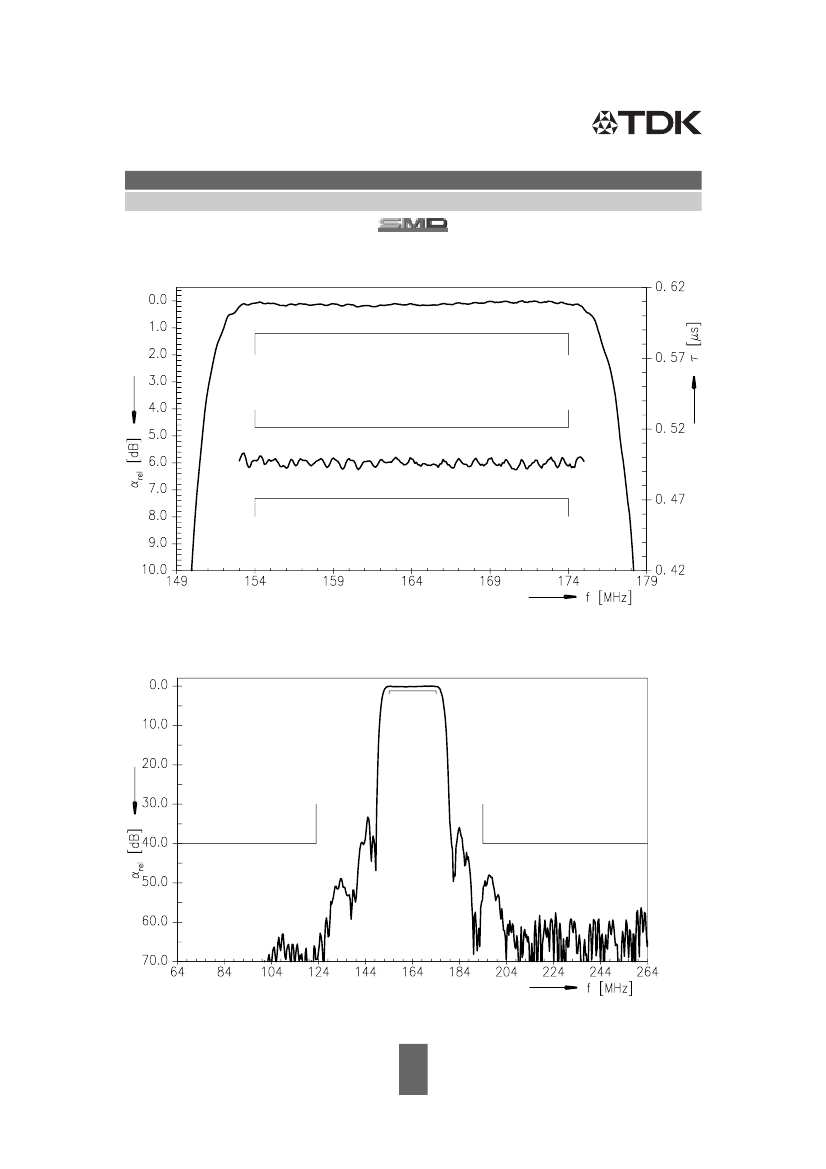

Transfer function (S21, Narrowband)
B5204
164.0 MHz
Transfer function (S21, Wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
November 17, 2009
