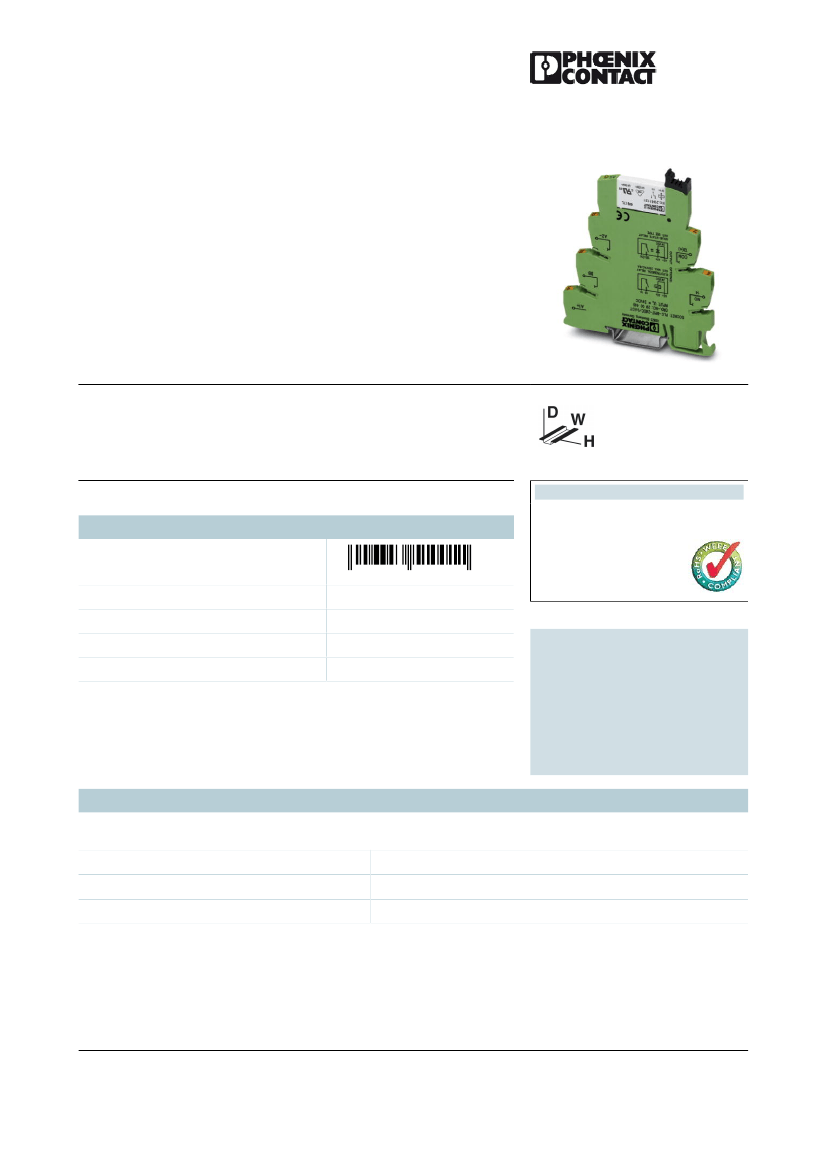

PLC-RPIT- 24DC/ 1AU/SEN
Order No.: 2900313
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900313
PLC sensor interface, consisting of PLC-BPIT...SEN basic terminal
block with Push-In connection and pluggable miniature relay with
multi-layer contact, for assembly on DIN rail NS 35/7.5, 1 N/O contact,
input voltage 24 V DC
Product notes
Commercial data
GTIN (EAN)
4
046356
510011
WEEE/RoHS-compliant since:
04/08/2009
sales group
Pack
Customs tariff
Catalog page information
G226
10 pcs.
85364190
Page 90 (IF-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Coil side
Nominal input voltage U
N
Nominal input current at U
IN
Typical response time
24 V DC
9 mA
5 ms
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Aug 24, 2011
PLC-RPIT- 24DC/ 1AU/SEN
Order No.: 2900313
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900313
Typical release time
Operating voltage display
Protective circuit
8 ms
Yellow LED
Protection against polarity reversal Polarity protection diode
Free-wheeling diode Damping diode
Contact side
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Maximum inrush current
Min. switching current
Limiting continuous current
Interrupting rating (ohmic load) max.
Note
Maximum switching voltage
Minimum switching voltage
Limiting continuous current
Min. switching current
Interrupting rating (ohmic load) max.
Single contact, 1 N/O contact
AgSnO, hard gold-plated
30 V AC
36 V DC
100 mV (at 10 mA)
50 mA
1 mA (at 24 V)
50 mA
1.2 W (at 24 V DC)
the following values are applicable if a gold layer is
destroyed
250 V AC/DC
5 V (at 100 mA)
6A
10 mA (at 12 V)
140 W (at 24 V DC)
20 W (for 48 V DC)
18 W (for 60 V DC)
23 W (for 110 V DC)
40 W (for 220 V DC)
1500 VA (for 250 V AC)
General data
Width
Height
Depth
Test voltage relay winding/relay contact
Ambient temperature (operation)
Ambient temperature (storage/transport)
Operating mode
Mechanical service life
6.2 mm
80 mm
94 mm
4 kV AC (50 Hz, 1 min.)
-40 °C ... 60 °C
-40 °C ... 85 °C
100% operating factor
2 x 10 cycles
7
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Aug 24, 2011
PLC-RPIT- 24DC/ 1AU/SEN
Order No.: 2900313
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900313
Inflammability class acc. to UL 94
Name
Standards/regulations
V0
Standards/regulations
IEC 60664
IEC 60664 A
DIN VDE 0110
DIN EN 50178/DIN VDE 0160 (in relevant parts)
DIN EN 50178/VDE 0160
IEC 60255/DIN VDE 0435 (in relevant parts)
Pollution degree
Surge voltage category
Mounting position
Assembly instructions
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Certificates / Approvals
3
III
Any
In rows with zero spacing
Push-In connection
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
26
14
8 mm
Certification
CUL, CUL Listed, UL, UL Listed
Accessories
Item
Assembly
0801762
NS 35/ 7,5 CU UNPERF
2000MM
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
Designation
Description
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Aug 24, 2011
PLC-RPIT- 24DC/ 1AU/SEN
Order No.: 2900313
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900313
0801733
0801681
0801377
1201756
1201895
1201730
1201714
1201798
2966841
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 V2A UNPERF
2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
PLC-ATP BK
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm,
Color: silver
DIN rail, deep drawn, high profile, unperforated, 1.5 mm thick,
material: aluminum, height 15 mm, width 35 mm, length 2000 mm
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 15 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, 2 mm thick, required at the start and end of a
PLC terminal strip. Furthermore, it is used for: visual separation
of groups, safe isolation of different voltages of neighboring PLC
relays in acc. with DIN VDE 0106-101, isolation
Bridges
2966812
2966825
2966236
2967688
2966692
2966838
2966786
General
2900262
2966508
2296087
PLC-BPIT- 24DC/ 1/SEN
PLC-ESK GY
PLC-V8/D15B/IN
6.2 mm PLC sensor basic terminal blocks with Push-In connection
method, input voltage of 24 V DC (without relay or optocoupler)
Power terminal block, for the input of up to four potentials, for
mounting on NS 35/7.5
V8-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT, etc./
see "Additional Products"). 15-pin D-SUB female connector,
control logic: Positive switching
FBST 6-PLC BU
FBST 6-PLC GY
FBST 6-PLC RD
FBST 8-PLC GY
FBST 500-PLC BU
FBST 500-PLC GY
FBST 500-PLC RD
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: blue
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: gray
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: red
Single plug-in bridge, Length: 8 mm, Number of positions: 2,
Color: gray
Continuous plug-in bridge, Length: 500 mm, Color: blue
Continuous plug-in bridge, Length: 500 mm, Color: gray
Continuous plug-in bridge, Length: 500 mm, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Aug 24, 2011
PLC-RPIT- 24DC/ 1AU/SEN
Order No.: 2900313
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900313
2296074
PLC-V8/D15S/IN
V8-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT, etc./
see "Additional Products"). 15-pin D-SUB male connector, control
logic: Positive switching
V8L-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT,
etc./see "Supplementary Products"). 14-pos. flat-ribbon cable
connection for the PLC system cabling, control logic: Plus
switching
V8L-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT,
etc./see "Supplementary Products"). 14-pos. flat-ribbon cable
connection for the PLC system cabling, control logic: Minus
switching
Pluggable miniature relays, with multi-layer contact, 1 PDT, input
voltage 24 V DC
2296553
PLC-V8/FLK14/IN
2304115
PLC-V8/FLK14/IN/M
2961121
REL-MR- 24DC/21AU
Marking
1051016
5060935
ZB 6,LGS:FORTL.ZAHLEN
ZB 6/WH-100:UNBEDRUCKT
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, unprinted: For individual labeling with M-PEN, ZB-T
or CMS system, large batch, sufficient for labeling 1000 terminal
blocks, for a terminal width of 6.2 mm, color: White
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 6.2 mm,
color: white
1051003
ZB 6:UNBEDRUCKT
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Diagram
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Aug 24, 2011
