Ordering number : EN7364A

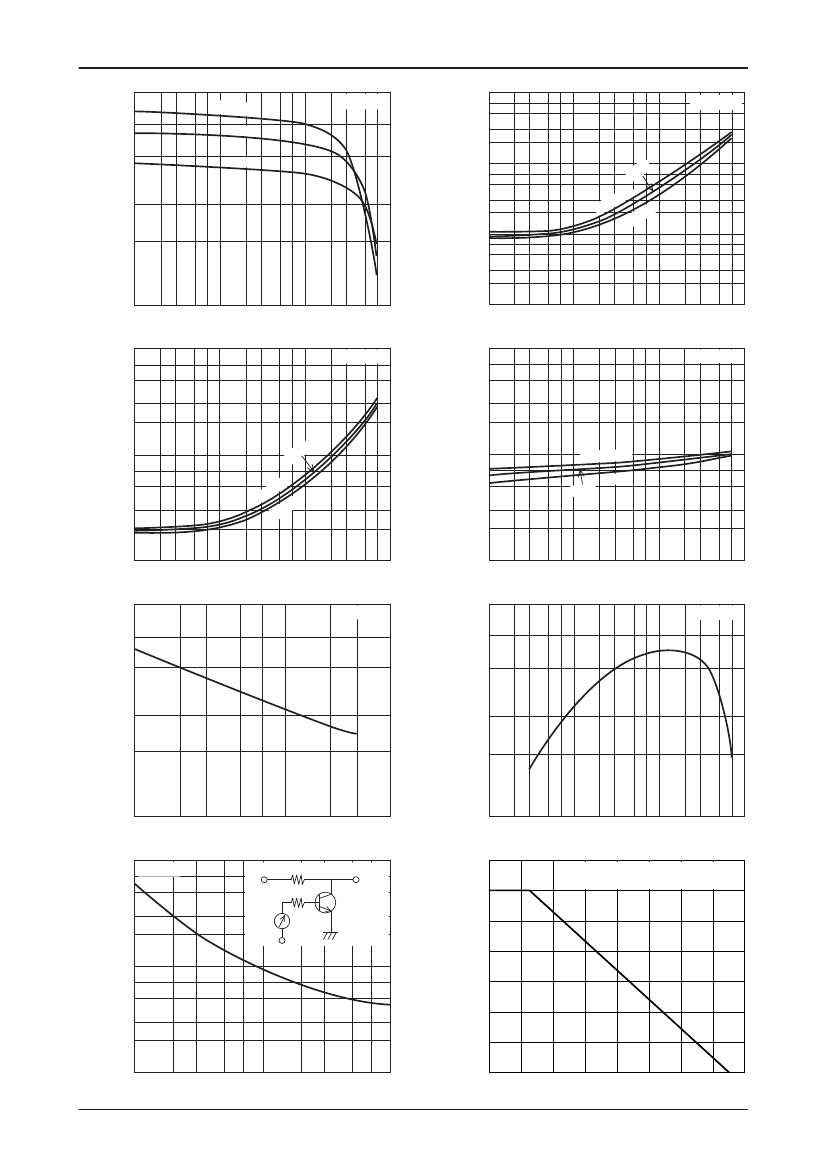

30C02MH
SANYO Semiconductors
DATA SHEET
30C02MH
Applications
•
NPN Epitaxial Planar Silicon Transistor
Low-Frequency
General-Purpose Amplifier Applications
Low-frequency Amplifier, high-speed switching, small motor drive.
Features
•
•
•
•
Large current capacitance.
Low collector-to-emitter saturation voltage (resistance) : RCE(sat) typ=330m
Ω
[IC=0.7A, IB=35mA].
Ultrasmall package facilitates miniaturization in end products.
Small ON-resistance (Ron).
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
When mounted on ceramic substrate (600mm
×0.8mm)
2
Conditions
Ratings
40
30
5
700
1.4
600
150
-55 to +150
Unit
V
V
V
mA
A
mW
°C
°C
Marking : CL
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not
be intended for use for any "special application" (medical equipment whose purpose is to sustain life,
aerospace instrument, nuclear control device, burning appliances, transportation machine, traffic signal
system, safety equipment etc.) that shall require extremely high level of reliability and can directly threaten
human lives in case of failure or malfunction of the product or may cause harm to human bodies, nor shall they
grant any guarantee thereof. If you should intend to use our products for applications outside the standard
applications of our customer who is considering such use and/or outside the scope of our intended standard
applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the
intended use, our customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are
not guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer' s products or equipment. To verify symptoms and states that cannot be evaluated in an
independent device, the customer should always evaluate and test devices mounted in the customer' s
products or equipment.
http://semicon.sanyo.com/en/network
60210EA TK IM TC-00002359 / O2203 TS IM TA-100141 No. 7364-1/4
30C02MH
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE
fT
Cob
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
VCB=30V, IE=0A
VEB=4V, IC=0A
VCE=2V, IC=50mA
VCE=10V, IC=50mA
VCB=10V, f=1MHz
IC=200mA, IB=10mA
IC=200mA, IB=10mA
IC=10μA, IE=0A
IC=1mA, RBE=∞
IE=10μA, IC=0A
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
40
30
5
35
255
40
300
540
3.3
85
0.9
190
1.2
Conditions
Ratings
min
typ
max
100
100
800
MHz
pF
mV
V
V
V
V
ns
ns
ns
Unit
nA
nA

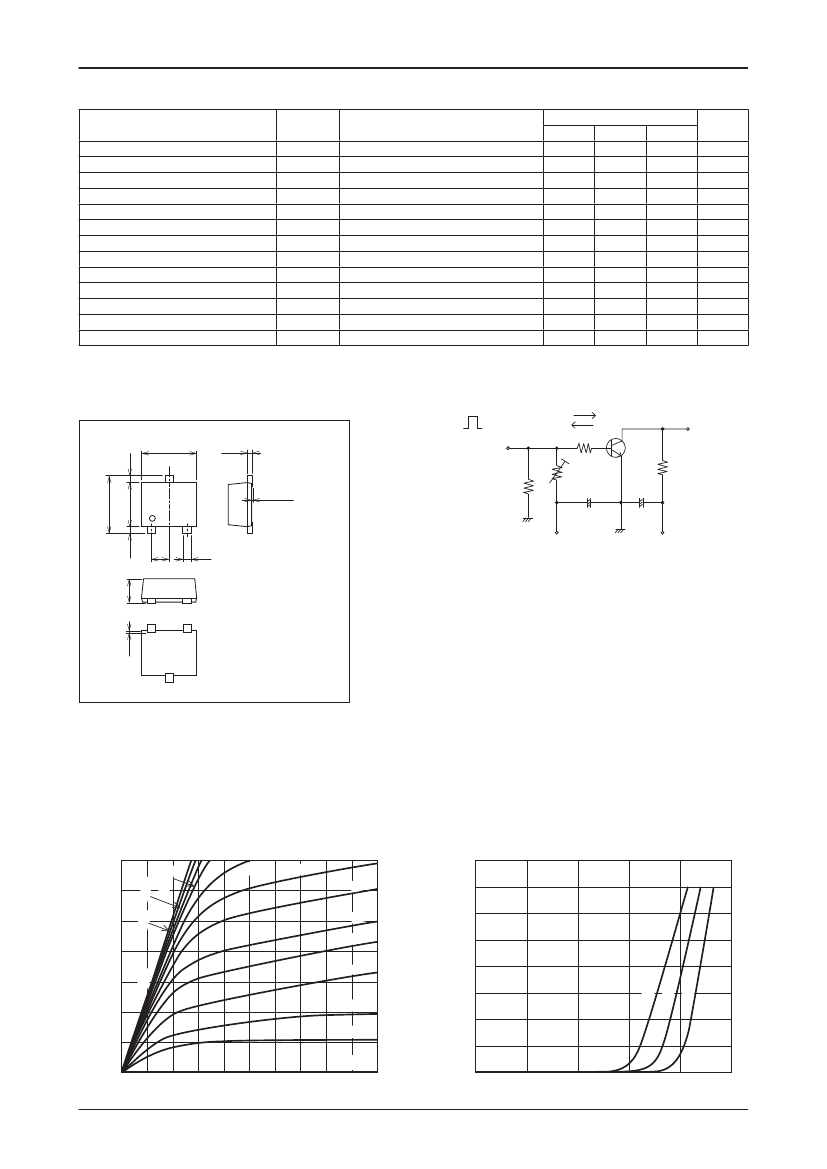

Package Dimensions
unit : mm (typ)
7019A-004
0.15
Switching Time Test Circuit
PW=20μs
D.C.
≤1%
IB1
IB2
VR
50Ω
+
220μF
RB
OUTPUT
0.25
2.0
3
INPUT
RL
2.1
1.6
0 t o 0.02
+
470μF
VCC=12V
1
0.25
0.65
2
0.3
VBE= --5V
IC=20IB1= --20IB2=300mA
0.85
0.07
1 : Base
2 : Emitter
3 : Collector
SANYO : MCPH3
700
IC -- VCE
A
15m
A 20mA
10m
A
800
IC -- VBE
VCE=2V
7mA
5mA
700
600
Collector Current, IC -- mA
Collector Current, IC -- mA
30m
500
400
3mA
600
500
400
300
200
100
2mA
1mA
A
200
100
0
0
400μA
200μA
IB=0A
100
200
300
400
500
600
700
800
900
1000
0
0
0.2
0.4
0.6
Ta=7
5
°
25
°
C
50m
300
0.8
--25
°
C
C
1.0
IT05083
Collector-to-Emitter Voltage, VCE -- mV
IT05082
Base-to-Emitter Voltage, VBE -- V
No. 7364-2/4
30C02MH
