Ordering number : ENN5743B

CMOS IC

LC72137, 72137M

PLL Frequency Synthesizer

for Electronic Tuning

Overview

The LC72137 and LC72137M are high input sensitivity

(FMIN: 10 mVrms at 130 MHz) PLL frequency

synthesizers for 3 V systems. They allow high-

performance AM/FM tuners to be implemented easily.

• Operating ranges

— Supply voltage: 2.5 to 3.6 V

— Operating temperature: –20 to +70°C

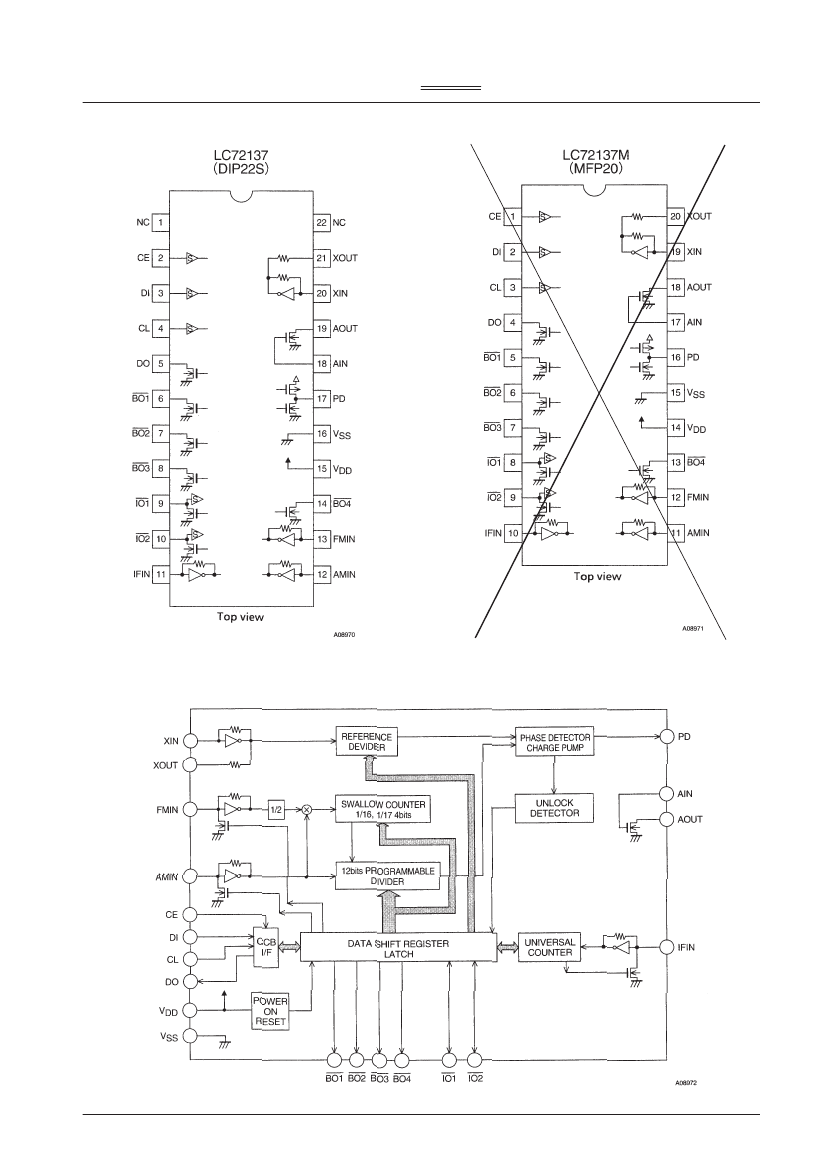

• Packages

—DIP22S/MFP20

Features

• High-speed programmable frequency divider

— FMIN: 10 to 160 MHz ..Pulse swallower

(divide-by-two prescaler built in)

— AMIN: 2 to 40 MHz ......Pulse swallower

0.5 to 10 MHz ...Direct division

• IF counter

— IFIN: 0.4 to 12 MHz ......For use as an AM/FM IF

counter

• Reference frequency

— Selectable from one of eight frequencies (crystal

oscillator: 75 kHz)

1, 3, 5, 3.125, 6.25, 12.5, 15, and 25 kHz

• Phase comparator

— Supports dead zone control

— Built-in unlock detection circuit

— Built-in deadlock clear circuit

• Built-in MOS transistor for forming an active low-pass

filter

• I/O ports

— Dedicated output ports: 4

— I/O ports: 2

— Supports clock time base output

• Serial Data I/O

— Supports CCB format communication with the

system controller.

• CCB is a trademark of SANYO ELECTRIC CO., LTD.

• CCB is SANYO’s original bus format and all the bus

addresses are controlled by SANYO.

Package Dimensions

unit: mm

3059-DIP22S

[LC72137]

7.62

6.4

21.2

0.51min 3.25

0.95

0.48

1.78

1.7

3.3

3.9max

SANYO: DIP22S

unit: mm

3036B-MFP20

[LC72137M]

6.35

1.8 max

12.6

1.5

0.15

0.1

0.35

1.27

0.59

SANYO: MFP20

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft’s

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

91099TH (OT)/N3098HA (OT)/70398RM (OT) No. 5743-1/22

0.625

5.4

7.6

0.25
