Datasheet> All Categories > Passive components> PVG5H501C03R00

Preview

PVG5H501C03R00: DescriptionRESISTOR, TRIMMER, CERMET, 11 TURN(S), 0.25 W, 500 ohm; CategoryPassive components; File Size187KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

PVG5H501C03R00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PVG5H501C03R00	-	-	View	Buy Now

PVG5H501C03R00 Overview

RESISTOR, TRIMMER, CERMET, 11 TURN(S), 0.25 W, 500 ohm

PVG5H501C03R00 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Number of terminals	3
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	WRAPAROUND
terminal coating	TIN
Installation features	SURFACE MOUNT
Rated temperature	70 Cel
Manufacturer Series	PVG5
deviation	10 %
resistance	500 ohm
Resistor type	TRIMMER
Resistivity	LINEAR
Rated power P	0.2500 W
Control valve type	SCREW
Number of turns	11
control valve direction	HORIZONTAL
Resistor element material	CERMET

Preview

Download Datasheet

View All

Product Search Data Sheet

PVG5H501C03R00

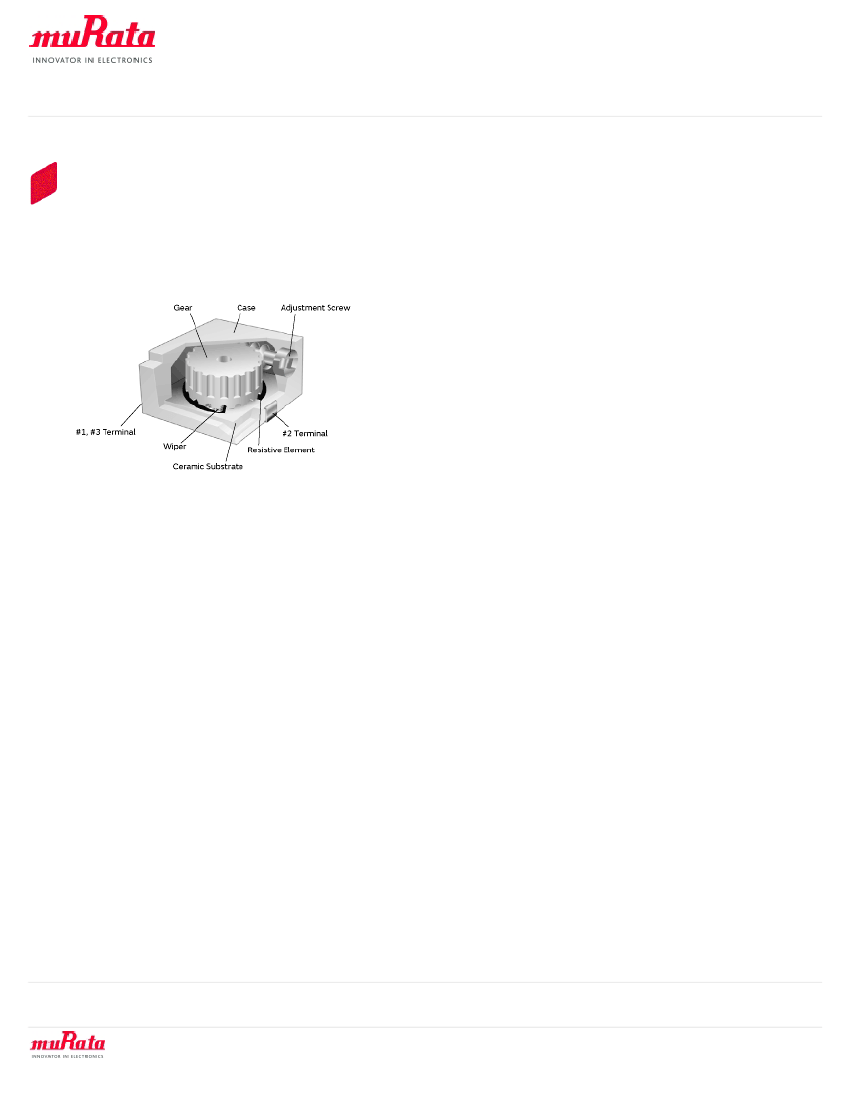

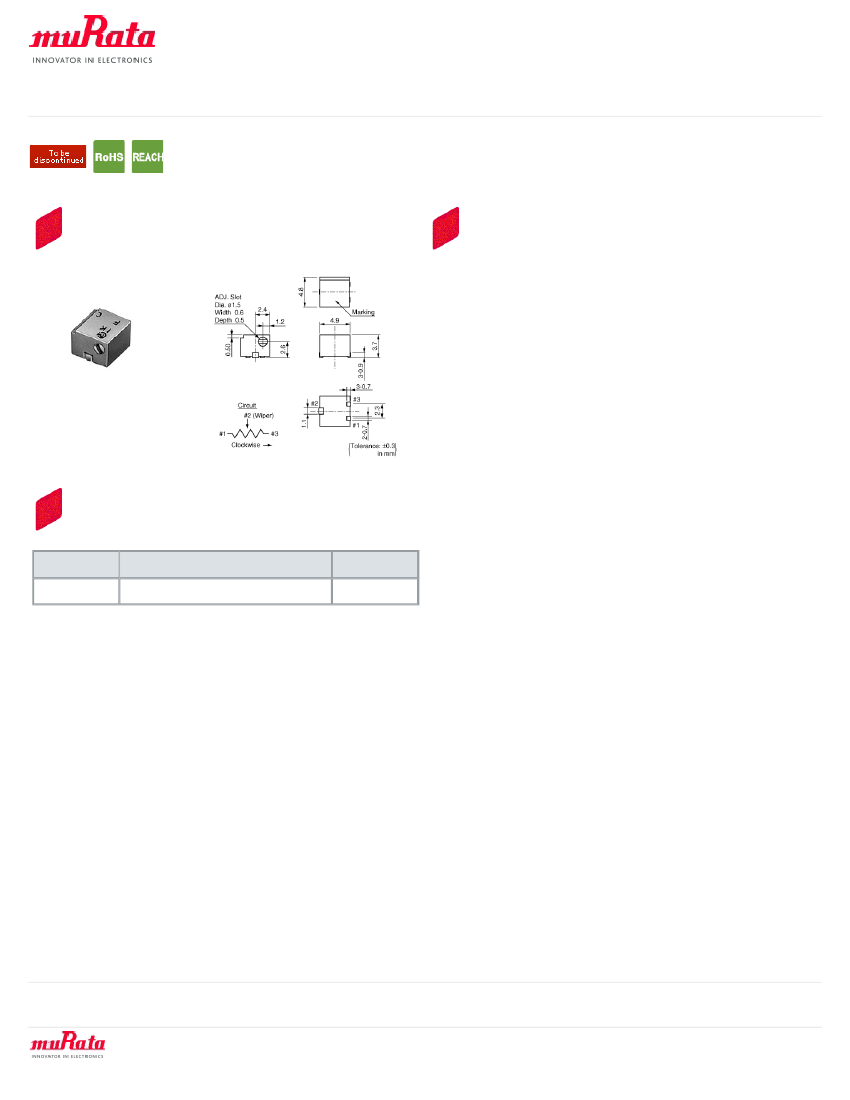

Appearance & Shape

Features

1. Sealed construction protects the interior from dust

and liquid, which achieves stable performance.

2. Available with reflow soldering method

3. Available for ultrasonic cleaning after soldering

4. Clutch mechanism prevents excessive wiper rotation.

5. Both Top and side adjustment directions

6. Ultra smaller volume (1/5-1/2) than leaded

multi-turn potentiometer.

Packaging Information

Packaging

R00

Specifications

180mm Embossed Tape

Minimum

Order Quantity

500

1 of 3

Atten ti o n

1.T his datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. T herefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.T his datasheet has only typical specifications because there is no space for detailed specifications.

T herefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated

：

2016/06/09
