PVG5H503C03R00

Description
RESISTOR, TRIMMER, CERMET, 11 TURN(S), 0.25 W, 50000 ohm
CategoryPassive components
File Size187KB,3 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

PVG5H503C03R00 Online Shopping

Suppliers Part Number Price MOQ In stock
PVG5H503C03R00 - - View Buy Now

PVG5H503C03R00 Overview

RESISTOR, TRIMMER, CERMET, 11 TURN(S), 0.25 W, 50000 ohm

PVG5H503C03R00 Parametric

Parameter NameAttribute value
Number of terminals3
Minimum operating temperature-55 Cel
Maximum operating temperature125 Cel
Processing package descriptionCHIP, ROHS COMPLIANT
each_compliYes
EU RoHS regulationsYes
stateActive
Resistor typeTRIMMER
control valve directionHORIZONTAL
Control valve typeSCREW
structureTrimmer Pot
jesd_609_codee3
Manufacturer SeriesPVG5
Installation featuresSURFACE MOUNT
Number of turns11
ckage_heigh3.7 mm
ckage_length4.8 mm
packaging shapeRECTANGULAR PACKAGE
Package SizeSMT
ckage_width4.9 mm
cking_methodTR, 7 INCH
Rated power P0.2500 W
Rated temperature70 Cel
resistance50000 ohm
ResistivityLINEAR
ional_angle3960 deg
seriesPVG5
size code1919
sub_categoryVariable Resistors
CraftsmanshipCERMET
emperature_coefficient__ppm_cel_-150,150
terminal coatingTIN
Terminal shapeWRAPAROUND
deviation10 %
Operating Voltage300 V
Product Search Data Sheet
PVG5H503C03R00

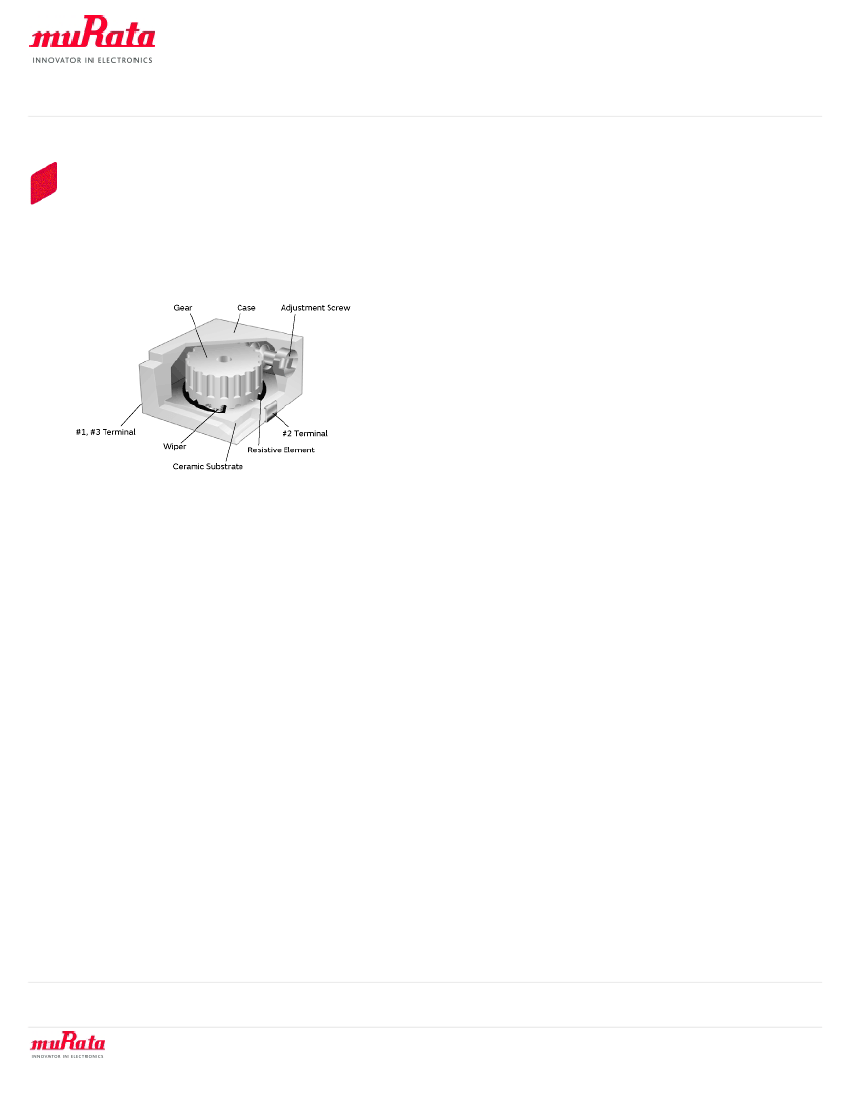

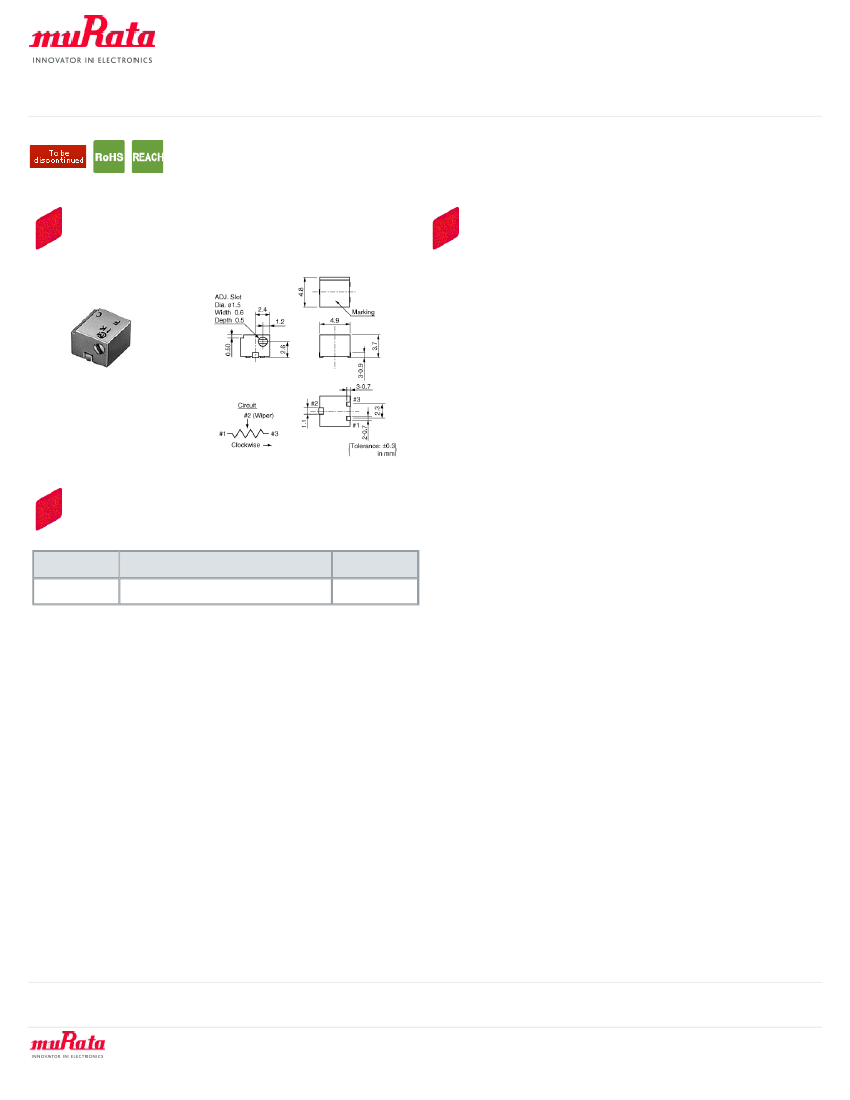

Appearance & Shape
Features
1. Sealed construction protects the interior from dust
and liquid, which achieves stable performance.
2. Available with reflow soldering method
3. Available for ultrasonic cleaning after soldering
4. Clutch mechanism prevents excessive wiper rotation.
5. Both Top and side adjustment directions
6. Ultra smaller volume (1/5-1/2) than leaded
multi-turn potentiometer.
Packaging Information
Packaging
R00
Specifications
180mm Embossed Tape
Minimum
Order Quantity
500
1 of 3
Atten ti o n
1.T his datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. T herefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.T his datasheet has only typical specifications because there is no space for detailed specifications.
T herefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated
2016/06/09
