REMINDERS
Please read before using this product
SAFETY REMINDERS
REMINDERS
1.
2.
3.
If you intend to use a product listed in this catalog for a purpose that may cause loss of life or other damage,
you must contact our company’s sales window.
We may modify products or discontinue production of a product listed in this catalog without prior
notification.
We provide “Delivery Specification” that explain precautions for the specifications and safety of each
product listed in this catalog. We strongly recommend that you exchange these delivery specifications with
customers that use one of these products.
If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according
to the “Foreign Exchange and Foreign Trade Control Law”. In such cases, it is necessary to acquire export
permission in harmony with this law.
Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from
our company.
We are not responsible for problems that occur related to the intellectual property rights or other rights of
our company or a third party when you use a product listed in this catalog. We do not grant license of these
rights.
This catalog only applies to products purchased through our company or one of our company’s official
agencies. This catalog does not apply to products that are purchased through other third parties.
4.
5.
6.
7.
TDK MLCC US Catalog
Page 1
Version C11

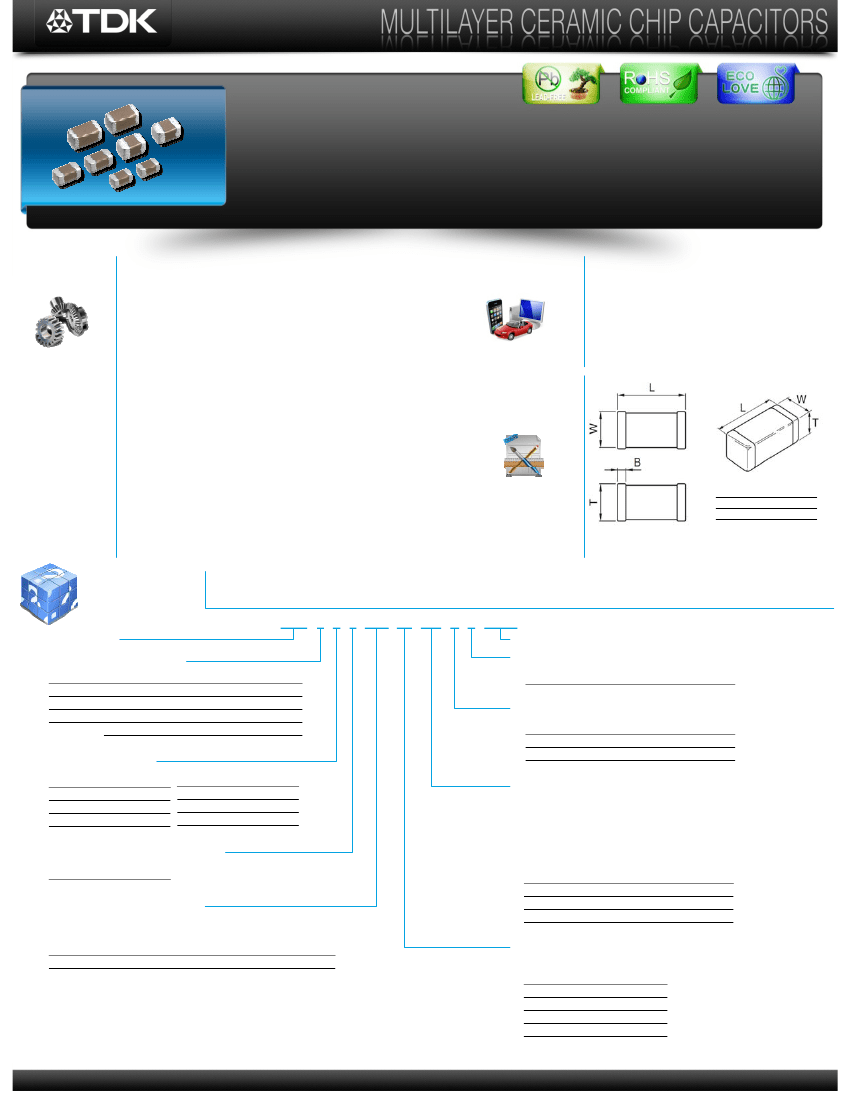

CGJ Series
Extended Life Capacitors
Type: CGJ2 (C1005), CGJ3 (C1608),
CGJ4 (C2012), CGJ5 (C3216)
Features
• Extended Life series capacitor featuring increased
evaluation during manufacturing to promote longer life
• Life test performs at 2x rated voltage for 2000 hrs
• Reliability tests based on MIL-STD requirements
• Guaranteed TC Bias and Hot IR performance
• Anti-counterfeit/tamper-proof seal to assist in the
identification of authentic TDK CGJ products. The
condition of the seal also indicates if the product has
been tampered with in the supply chain
• Certificate of Compliance (CofC) documentation is
provided for each CGJ lot. Consumers of CGJ products
can view each lot specific CofC on the TDK website
• Available optional UHF (Ultra High Frequency) RFID
tag to allow integration with customer RFID programs
such as inventory management
• CGJ customer priority backed by TDK factory support
by 3/3/7 policy (3hrs: acknowledgement, 3 days:
response with initial failure mode, 7 days: full failure
analysis report)
Applications
• Smart Meter
• Smart Grid
• Solar Inverters
• Charging station
• Applications that require extended life
performance
Shape &
Dimension
s
L
W
T
B
Body Length
Body Width
Body Height
Terminal Width
Dimensions in mm
Part Number
Construction
CGJ 5 L 2 X7R 1A 106 K T XXXX
Series Name
Dimensions L x W (mm)
Symbol
2
3
4
5
Length
1.00
±
0.05
1.60
±
0.10
2.00
±
0.20
3.20
±
0.20
3.20 +0.30/-0.10
Width
0.50
±
0.05
0.80
±
0.10
1.25
±
0.20
1.60
±
0.20
1.60 +0.30/-0.10
Internal Codes
Packaging Style
Packaging Code
T
Tolerance Code
J
K
M
Style
Tape & Reel
Tolerance
±
5%
±
10%
±
20%
Capacitance Tolerance
Thickness T (mm)
Symbol
B
C
E
F
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
Symbol
H
J
L
Thickness
1.15 mm
1.25 mm
1.60 mm
Voltage Condition for Life Test
Symbol
2
Condition
2
×
R.V.
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and
in units of pico Farads (pF). The first and second digits
identify the first and second significant figures of the
capacitance. The third digit identifies the multiplier.
R designates a decimal point.
Capacitance Code
0R5
010
102
105
Capacitance
0.5pF
1pF
1,000pF (1nF)
1,000,000pF (1µF)
Temperature Characteristic
Temperature
Characteristic
s
C0G
X7R
Capacitance
Change
0±30 ppm/ºC
±
15%
Temperature
Range
-55 to +125ºC
-55 to +125ºC
Rated Voltage (DC)
Voltage
Code
0J
1A
1C
1E
1H
Voltage (DC)
6.3V
10V
16V
25V
50V
